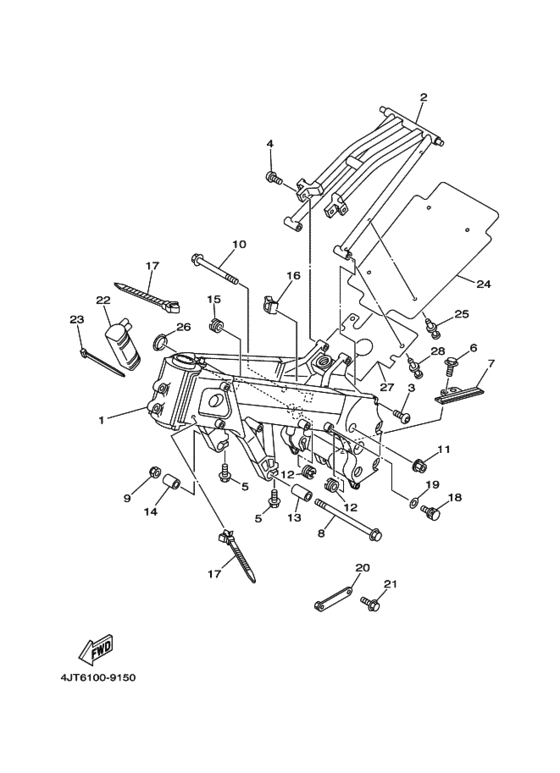

Frame Diagram Yamaha TZ125
- Year
- 1999
- Colour
- White (WW; 0036)
- Model code
- 4JT6
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JT-21110-32-00
Frame Comp
．ＦＲＡＭＥ ＣＯＭＰ; |
4JT-21110-32-00 |
— | ||
|
2
|
2
4JT-21190-11-00
Rear Frame Comp
．ＲＥＡＲ ＦＲＡＭＥ ＣＯＭＰ; |
4JT-21190-11-00 |
— | ||
|
3
|
3
92017-08025-00 Bolt, Button HeadＢＯＬＴ， ＢＵＴＴＯＮ ＨＥＡＤ; |
92017-08025-00 |
from US $1.56 |
||
|
4
|
4
92017-08020-00 Bolt, ButtonＢＯＬＴ， ＢＵＴＴＯＮ ＨＥＡＤ; |
92017-08020-00 |
from US $1.07 |
||
|
5
|
5
90109-067E6-00 BoltＢＯＬＴ; |
90109-067E6-00 |
from US $1.55 |
||
|
6
|
6
90119-05239-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-05239-00 |
from US $2.69 |
||
| replacement | |||||
|
6
|
6
901-19050-22-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
901-19050-22-00 |
from US $2.69 |
||
|
7
|
7
4TW-22151-00-00 Seal, GuardＳＥＡＬ， ＧＵＡＲＤ; |
4TW-22151-00-00 |
from US $70.99 |
||
|
8
|
8
90105-10726-00 Bolt, Washer BasedＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10726-00 |
from US $13.30 |
||
|
9
|
9
956-07102-00-00 Nut, U FlangeＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
956-07102-00-00 |
from US $5.67 |
||
|
10
|
10
90105-10183-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10183-00 |
from US $7.65 |
||
|
11
|
11
90179-10696-00 NutＮＵＴ; |
90179-10696-00 |
from US $9.65 |
||
|
12
|
12
4JT-21495-10-00 Bolt, Engine AdjustingＢＯＬＴ， ＥＮＧＩＮＥ ＡＤＪＵＳＴＩＮＧ; |
4JT-21495-10-00 |
from US $75.44 |
||
|
13
|
13
4JT-21117-00-00 Sleeve, 1ＳＬＥＥＶＥ， １; |
4JT-21117-00-00 |
from US $45.40 |
||
|
14
|
14
4JT-21118-00-00 Sleeve, 2ＳＬＥＥＶＥ， ２; |
4JT-21118-00-00 |
from US $23.74 |
||
|
15
|
15
4JT-21495-00-00 Bolt, Engine AdjustingＢＯＬＴ， ＥＮＧＩＮＥ ＡＤＪＵＳＴＩＮＧ; |
4JT-21495-00-00 |
from US $75.44 |
||
|
16
|
16
90464-25160-00 ClampＣＬＡＭＰ; |
90464-25160-00 |
from US $5.24 |
||
|
17
|
17
90464-12089-00 ClampＣＬＡＭＰ; |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
17
|
17
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
18
|
18
90338-06041-00 PlugＰＬＵＧ; |
90338-06041-00 |
from US $9.49 |
||
|
19
|
19
90430-06166-00 GasketＧＡＳＫＥＴ; |
90430-06166-00 |
from US $1.28 |
||
|
20
|
20
4JT-2117A-00-00
Stay
ＳＴＡＹ; |
4JT-2117A-00-00 |
— | ||
|
21
|
21
950-27060-16-00
Bolt, Flange
ＢＯＬＴ， ＦＬＡＮＧＥ; |
950-27060-16-00 |
— | ||
| replacement | |||||
|
21
|
21
901-05066-96-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
901-05066-96-00 |
from US $2.41 |
||
|
22
|
22
3YL-21751-00-00 Tank, OilＴＡＮＫ， ＯＩＬ; |
3YL-21751-00-00 |
from US $31.59 |
||
|
23
|
23
904-65132-75-00
Clamp
ＣＬＡＭＰ; |
904-65132-75-00 |
— | ||
| replacement | |||||
|
23
|
23
904-64151-52-00 ClampＣＬＡＭＰ; |
904-64151-52-00 |
from US $2.83 |
||
|
24
|
24
4JT-21629-11-00
Guard, Mud
ＧＵＡＲＤ， ＭＵＤ; |
4JT-21629-11-00 |
— | ||
|
25
|
25
90269-05049-00 RivetＲＩＶＥＴ; |
90269-05049-00 |
from US $1.84 |
||
|
26
|
26
4JT-2117G-00-00 ProtectorＰＲＯＴＥＣＴＯＲ; |
4JT-2117G-00-00 |
from US $2.02 |
||
|
27
|
27
4JT-21642-20-00
Guard, Flap
ＧＵＡＲＤ， ＦＬＡＰ; ＡＰ |
4JT-21642-20-00 |
— | ||
|
28
|
28
90269-05049-00 RivetＲＩＶＥＴ; ＡＰ |
90269-05049-00 |
from US $1.84 |
||
