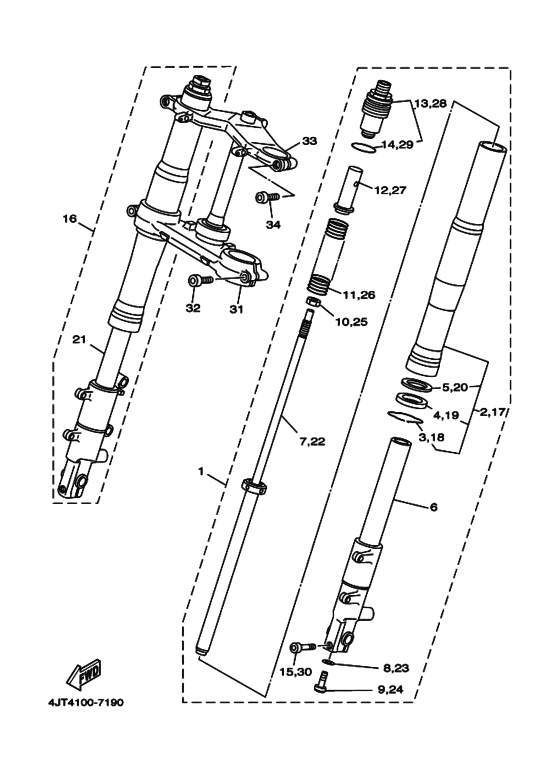

Front fork Diagram Yamaha TZ125
- Year
- 1999
- Colour
- White (WW; 0036)
- Model code
- 4JT6
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JT-23102-30-00
Front Fork Assy (L.h)
．ＦＲＯＮＴ ＦＯＲＫ ＡＳＳＹ ; ＬＨ |
4JT-23102-30-00 |
— | ||
|
2
|
2
4JT-23136-30-00
Tube, Outer 2
．ＴＵＢＥ， ＯＵＴＥＲ ; ＲＩＧＨＴ |
4JT-23136-30-00 |
— | ||
|
3
|
3
4A1-23156-00-00 Ring, Snap．．ＣＬＩＰ， ＯＩＬ ＳＥＡＬ; |
4A1-23156-00-00 |
from US $4.39 |
||
|
4
|
4
4ES-23145-00-00 Oil Seal．．ＯＩＬ ＳＥＡＬ; |
4ES-23145-00-00 |
from US $8.94 |
||
|
5
|
5
5K5-23149-00-00 Washer, Spring Upper．．ＷＡＳＨＥＲ， ＳＰＲＩＮＧ ＵＰＰＥＲ; |
5K5-23149-00-00 |
from US $6.94 |
||
|
6
|
6
4JT-23110-00-00
Inner Tube Comp.1
．．ＩＮＮＥＲ ＴＵＢＥ ＣＯＭＰ１; |
4JT-23110-00-00 |
— | ||
|
7
|
7
4JT-23170-30-00 Cylinder Comp., Front Fork．．ＣＹＬＩＮＤＥＲ ＣＯＭＰ， ＦＲＯＮＴ ＦＯＲＫ; |
4JT-23170-30-00 |
US $240.95 |
||
|
8
|
8
2K8-23158-L0-00 Gasket．ＧＡＳＫＥＴ; |
2K8-23158-L0-00 |
from US $12.47 |
||
|
9
|
9
3LC-23181-00-00 Bolt, Hexagon Socket Head．ＢＯＬＴ， ＨＥＸＡＧＯＮ ＳＯＣＫＥＴ ＨＥＡＤ; |
3LC-23181-00-00 |
from US $11.76 |
||
|
10
|
10
4JT-23357-20-00 Nut．ＮＵＴ; |
4JT-23357-20-00 |
US $7.93 |
||
|
11
|
11
4JT-23141-10-00 Spring, Front Fork．ＳＰＲＩＮＧ， ＦＲＯＮＴ ＦＯＲＫ; |
4JT-23141-10-00 |
US $29.68 |
||
|
12
|
12
4JT-23118-20-00
Spacer
．ＳＰＡＣＥＲ; |
4JT-23118-20-00 |
— | ||
|
13
|
13
4JT-23111-20-00
Bolt, Cap
．ＢＯＬＴ， ＣＡＰ; |
4JT-23111-20-00 |
— | ||
|
14
|
14
4V4-23188-L0-00 O-Ring．．Ｏ−ＲＩＮＧ; |
4V4-23188-L0-00 |
from US $8.36 |
||
|
15
|
15
1WG-23128-00-00
Bolt, Hexagon Socket Head
．ＢＯＬＴ， ＡＸＬＥ ＨＯＬＤＥＲ; |
1WG-23128-00-00 |
— | ||
| replacement | |||||
|
15
|
15
91314-08040-00 Bolt, Hexagon Socket Head．ＢＯＬＴ， ＡＸＬＥ ＨＯＬＤＥＲ; |
91314-08040-00 |
from US $3.26 |
||
|
16
|
16
4JT-23103-30-00
Front Fork Assy (R.h)
．ＦＲＯＮＴ ＦＯＲＫ ＡＳＳＹ ; ＲＨ |
4JT-23103-30-00 |
— | ||
|
17
|
17
4JT-23136-30-00
Tube, Outer 2
．ＴＵＢＥ， ＯＵＴＥＲ ; ＲＩＧＨＴ |
4JT-23136-30-00 |
— | ||
|
18
|
18
4A1-23156-00-00 Ring, Snap．．ＣＬＩＰ， ＯＩＬ ＳＥＡＬ; |
4A1-23156-00-00 |
from US $4.39 |
||
|
19
|
19
4ES-23145-00-00 Oil Seal．．ＯＩＬ ＳＥＡＬ; |
4ES-23145-00-00 |
from US $8.94 |
||
|
20
|
20
5K5-23149-00-00 Washer, Spring Upper．．ＷＡＳＨＥＲ， ＳＰＲＩＮＧ ＵＰＰＥＲ; |
5K5-23149-00-00 |
from US $6.94 |
||
|
21
|
21
4JT-23120-30-00
Inner Tube Comp.2
．．ＩＮＮＥＲ ＴＵＢＥ ＣＯＭＰ２; |
4JT-23120-30-00 |
— | ||
|
22
|
22
4JT-23170-30-00 Cylinder Comp., Front Fork．．ＣＹＬＩＮＤＥＲ ＣＯＭＰ， ＦＲＯＮＴ ＦＯＲＫ; |
4JT-23170-30-00 |
US $240.95 |
||
|
23
|
23
2K8-23158-L0-00 Gasket．ＧＡＳＫＥＴ; |
2K8-23158-L0-00 |
from US $12.47 |
||
|
24
|
24
3LC-23181-00-00 Bolt, Hexagon Socket Head．ＢＯＬＴ， ＨＥＸＡＧＯＮ ＳＯＣＫＥＴ ＨＥＡＤ; |
3LC-23181-00-00 |
from US $11.76 |
||
|
25
|
25
4JT-23357-20-00 Nut．ＮＵＴ; |
4JT-23357-20-00 |
US $7.93 |
||
|
26
|
26
4JT-23141-10-00 Spring, Front Fork．ＳＰＲＩＮＧ， ＦＲＯＮＴ ＦＯＲＫ; |
4JT-23141-10-00 |
US $29.68 |
||
|
27
|
27
4JT-23118-20-00
Spacer
．ＳＰＡＣＥＲ; |
4JT-23118-20-00 |
— | ||
|
28
|
28
4JT-23111-20-00
Bolt, Cap
．ＢＯＬＴ， ＣＡＰ; |
4JT-23111-20-00 |
— | ||
|
29
|
29
4V4-23188-L0-00 O-Ring．．Ｏ−ＲＩＮＧ; |
4V4-23188-L0-00 |
from US $8.36 |
||
|
30
|
30
1WG-23128-00-00
Bolt, Hexagon Socket Head
．ＢＯＬＴ， ＡＸＬＥ ＨＯＬＤＥＲ; |
1WG-23128-00-00 |
— | ||
| replacement | |||||
|
30
|
30
91314-08040-00 Bolt, Hexagon Socket Head．ＢＯＬＴ， ＡＸＬＥ ＨＯＬＤＥＲ; |
91314-08040-00 |
from US $3.26 |
||
|
31
|
31
4JT-23340-30-00
Under Bracket Comp
．ＵＮＤＥＲ ＢＲＡＣＫＥＴ ＣＯＭＰ; |
4JT-23340-30-00 |
— | ||
|
32
|
32
91311-10030-00 BoltＢＯＬＴ; |
91311-10030-00 |
from US $3.85 |
||
| replacement | |||||
|
32
|
32
91317-10030-00 Bolt, SocketＢＯＬＴ; |
91317-10030-00 |
from US $4.25 |
||
|
33
|
33
4JT-23435-30-00 Crown, HandleＣＲＯＷＮ， ＨＡＮＤＬＥ; |
4JT-23435-30-00 |
from US $537.17 |
||
|
34
|
34
91311-08030-00 Bolt, Hexagon Socket HeadＢＯＬＴ; |
91311-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
34
|
34
91314-08030-00 Bolt, Hexagon Socket HeadＢＯＬＴ; |
91314-08030-00 |
from US $1.07 |
||
