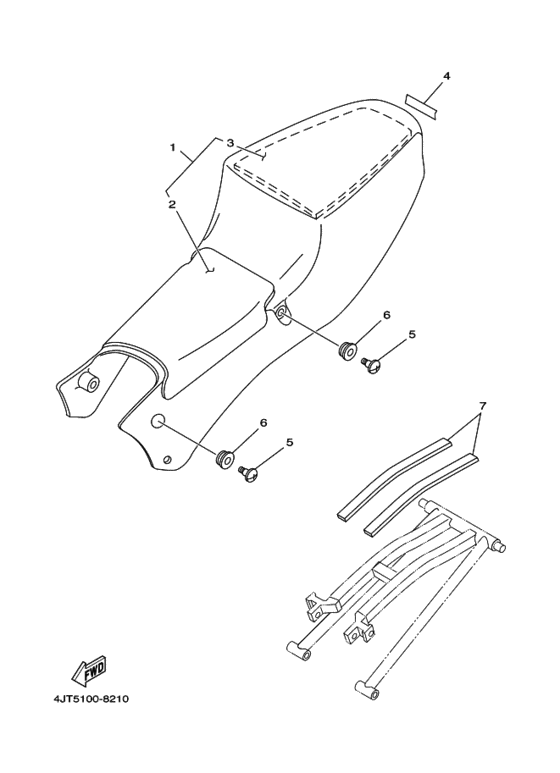

Seat Diagram Yamaha TZ125
- Year
- 1999
- Colour
- White (WW; 0036)
- Model code
- 4JT6
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TZ125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JT-24710-30-00
Single Seat Assy
ＳＩＮＧＬＥ ＳＥＡＴ ＡＳＳＹ; |
4JT-24710-30-00 |
— | ||
|
2
|
2
4JT-24713-10-00
Cushion
．ＣＵＳＨＩＯＮ; |
4JT-24713-10-00 |
— | ||
|
3
|
3
4JT-24763-00-00 Pad, Seat 2．ＰＡＤ， ＳＥＡＴ ２; |
4JT-24763-00-00 |
from US $32.35 |
||
|
4
|
4
99237-00080-00 Emblem, YamahaＥＭＢＬＥＭ， ＹＡＭＡＨＡ; ＡＰ |
99237-00080-00 |
from US $7.79 |
||
| replacement | |||||
|
4
|
4
992-47000-80-00 Emblem, YamahaＥＭＢＬＥＭ， ＹＡＭＡＨＡ; ＡＰ |
992-47000-80-00 |
from US $7.79 |
||
|
5
|
5
90150-06036-00 Screw, Round HeadＳＣＲＥＷ， ＲＯＵＮＤ ＨＥＡＤ; |
90150-06036-00 |
from US $1.84 |
||
|
6
|
6
90480-13197-00 GrommetＧＲＯＭＭＥＴ; |
90480-13197-00 |
from US $2.27 |
||
| replacement | |||||
|
6
|
6
90480-13014-00 GrommetＧＲＯＭＭＥＴ; |
90480-13014-00 |
from US $2.27 |
||
|
7
|
7
1KT-82122-00-00 DamperＳＥＡＴ， ＢＡＴＴＥＲＹ; |
1KT-82122-00-00 |
US $3.40 |
||
| replacement | |||||
|
7
|
7
4A0-83541-00-00 DamperＳＥＡＴ， ＢＡＴＴＥＲＹ; |
4A0-83541-00-00 |
from US $3.40 |
||
