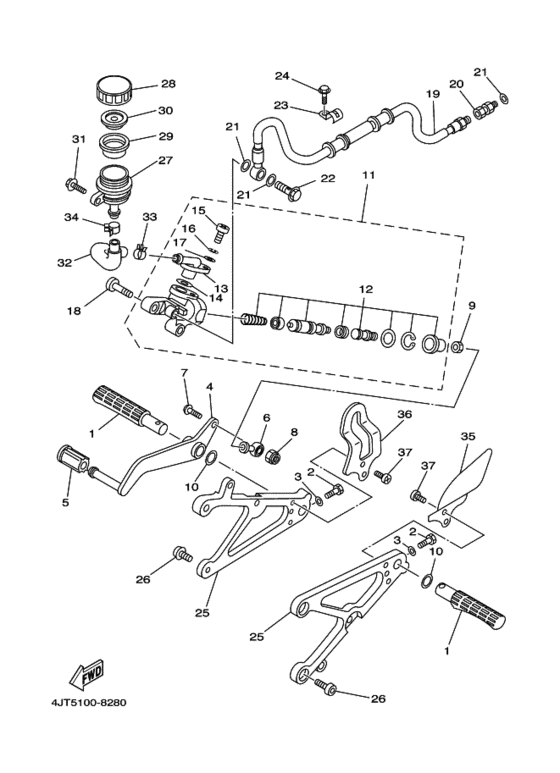

Stand & footrest Diagram Yamaha TZ125
- Year
- 1999
- Colour
- White (WW; 0036)
- Model code
- 4JT6
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JT-27411-11-00 Footrest 1ＦＯＯＴＲＥＳＴ １; |
4JT-27411-11-00 |
from US $78.17 |
||
| replacement | |||||
|
1
|
1
4JT-27411-20-00 Footrest 1ＦＯＯＴＲＥＳＴ １; |
4JT-27411-20-00 |
US $152.26 |
||
|
2
|
2
970-07060-20-00
Bolt
ＢＯＬＴ; |
970-07060-20-00 |
— | ||
| replacement | |||||
|
2
|
2
970-17060-20-00 BoltＢＯＬＴ; |
970-17060-20-00 |
from US $1.07 |
||
|
3
|
3
92907-06600-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
92907-06600-00 |
from US $1.04 |
||
|
4
|
4
4JT-27211-00-00
Pedal, Brake
ＰＥＤＡＬ， ＢＲＡＫＥ; |
4JT-27211-00-00 |
— | ||
|
5
|
5
4A0-18113-00-00 Cover, Shift PedalＣＯＶＥＲ， ＳＨＩＦＴ ＰＥＤＡＬ; |
4A0-18113-00-00 |
from US $7.37 |
||
| replacement | |||||
|
5
|
5
240-18113-00-00 Cover, Shift PedalＣＯＶＥＲ， ＳＨＩＦＴ ＰＥＤＡＬ; |
240-18113-00-00 |
from US $7.37 |
||
|
6
|
6
3YL-27222-00-00 Joint 1ＪＯＩＮＴ; |
3YL-27222-00-00 |
from US $37.30 |
||
| replacement | |||||
|
6
|
6
8CW-18156-00-00 Joint 1ＪＯＩＮＴ; |
8CW-18156-00-00 |
from US $37.30 |
||
|
7
|
7
92017-06020-00 Bolt, Button HeadＢＯＬＴ， ＢＵＴＴＯＮ ＨＥＡＤ; |
92017-06020-00 |
from US $1.56 |
||
|
8
|
8
956-07061-00-00
Nut, U
ＮＵＴ， Ｕ; |
956-07061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95617-06100-00 Nut, UＮＵＴ， Ｕ; |
95617-06100-00 |
from US $1.21 |
||
|
9
|
9
953-07066-00-00
Nut
ＮＵＴ; |
953-07066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95317-06600-00 Nut(6Ta)ＮＵＴ; |
95317-06600-00 |
from US $1.21 |
||
|
10
|
10
90201-14212-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-14212-00 |
from US $2.55 |
||
|
11
|
11
3YL-2583V-00-00 Rr. Master Cylinder Assy．．ＲＲ ＭＡＳＴＥＲ ＣＹＬＩＮＤＥＲ ＡＳＳＹ; |
3YL-2583V-00-00 |
from US $281.65 |
||
|
12
|
12
3YL-W0042-50-00 Cylinder Kit, Master．ＣＹＬＩＮＤＥＲ ＫＩＴ， ＭＡＳＴＥＲ; |
3YL-W0042-50-00 |
from US $183.35 |
||
|
13
|
13
36Y-2582A-50-00 Joint．ＪＯＩＮＴ; |
36Y-2582A-50-00 |
from US $13.88 |
||
| replacement | |||||
|
13
|
13
29L-2582A-50-00 Connector．ＪＯＩＮＴ; |
29L-2582A-50-00 |
from US $13.88 |
||
|
14
|
14
93210-15620-00 O-Ring．Ｏ−ＲＩＮＧ; |
93210-15620-00 |
from US $1.35 |
||
| replacement | |||||
|
14
|
14
93210-15566-00 O-Ring (22U)．Ｏ−ＲＩＮＧ; |
93210-15566-00 |
from US $1.35 |
||
|
15
|
15
985-11040-12-00 Screw, Panhead (4U5)．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
985-11040-12-00 |
from US $1.07 |
||
|
16
|
16
929-02041-00-00
Washer, Spring
．ＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
929-02041-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-04100-00 Washer, Spring．ＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
92990-04100-00 |
from US $1.21 |
||
|
17
|
17
929-01046-00-00
Washer
．ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-90046-00-00 Washer, Plate．ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90046-00-00 |
from US $1.07 |
||
|
18
|
18
92017-08025-00 Bolt, Button HeadＢＯＬＴ， ＢＵＴＴＯＮ ＨＥＡＤ; |
92017-08025-00 |
from US $1.56 |
||
|
19
|
19
4JT-25874-10-00 Hose, BrakeＨＯＳＥ， ＢＲＡＫＥ; |
4JT-25874-10-00 |
from US $135.12 |
||
|
20
|
20
3LC-25885-00-00 JointＪＯＩＮＴ; |
3LC-25885-00-00 |
from US $19.41 |
||
|
21
|
21
902-01101-18-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
90201-108J9-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-108J9-00 |
US $1.28 |
||
|
22
|
22
90401-10159-00 Bolt, Union(3Gm)ＢＯＬＴ， ＵＮＩＯＮ; |
90401-10159-00 |
from US $3.26 |
||
|
23
|
23
3XV-25876-00-00 Holder, Brake Hose 2ＨＯＬＤＥＲ， ＢＲＡＫＥ ＨＯＳＥ ２; |
3XV-25876-00-00 |
US $17.85 |
||
|
24
|
24
950-27060-16-00
Bolt, Flange
ＢＯＬＴ， ＦＬＡＮＧＥ; |
950-27060-16-00 |
— | ||
| replacement | |||||
|
24
|
24
901-05066-96-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
901-05066-96-00 |
from US $2.41 |
||
|
25
|
25
4JT-27412-20-00 Bracket, Footrest 1ＢＲＡＣＫＥＴ， ＦＯＯＴＲＥＳＴ １; |
4JT-27412-20-00 |
from US $159.20 |
||
|
26
|
26
92017-08020-00 Bolt, ButtonＢＯＬＴ， ＢＵＴＴＯＮ ＨＥＡＤ; |
92017-08020-00 |
from US $1.07 |
||
|
27
|
27
2VN-25894-00-00 Tank, ReservoirＴＡＮＫ， ＲＥＳＥＲＶＯＩＲ; |
2VN-25894-00-00 |
from US $11.90 |
||
|
28
|
28
3XP-25852-50-00 Cap, ReservoirＣＡＰ， ＲＥＳＥＲＶＯＩＲ; |
3XP-25852-50-00 |
from US $8.60 |
||
|
29
|
29
2VN-25854-00-00 Diaphragm, ReservoirＤＩＡＰＨＲＡＧＭ， ＲＥＳＥＲＶＯＩＲ; |
2VN-25854-00-00 |
from US $7.94 |
||
|
30
|
30
2VN-25855-00-00 Bush,diaphragmＢＵＳＨ，ＤＩＡＰＨＲＡＧＭ; |
2VN-25855-00-00 |
from US $6.52 |
||
|
31
|
31
90109-065G4-00 Bolt, FlangeＢＯＬＴ; |
90109-065G4-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
901-05061-09-00 Bolt, FlangeＢＯＬＴ; |
901-05061-09-00 |
from US $1.42 |
||
|
32
|
32
4JT-25895-10-00 Hose, ReservoirＨＯＳＥ， ＲＥＳＥＲＶＯＩＲ; |
4JT-25895-10-00 |
from US $23.58 |
||
|
33
|
33
90467-14057-00 ClipＣＬＩＰ; |
90467-14057-00 |
from US $1.28 |
||
|
34
|
34
90467-11044-00 Clip (7K7)ＣＬＩＰ; |
90467-11044-00 |
from US $1.28 |
||
|
35
|
35
4TW-27445-00-00 Plate 1ＰＬＡＴＥ １; |
4TW-27445-00-00 |
from US $34.08 |
||
|
36
|
36
4JT-27445-00-00 Plate 1ＰＬＡＴＥ １; |
4JT-27445-00-00 |
from US $34.08 |
||
|
37
|
37
90154-05064-00 Screw, BindＳＣＲＥＷ， ＢＩＮＤＩＮＧ; |
90154-05064-00 |
from US $1.42 |
||
| replacement | |||||
|
37
|
37
98907-05012-00 Screw, BindＳＣＲＥＷ， ＢＩＮＤＩＮＧ; |
98907-05012-00 |
from US $1.42 |
||
