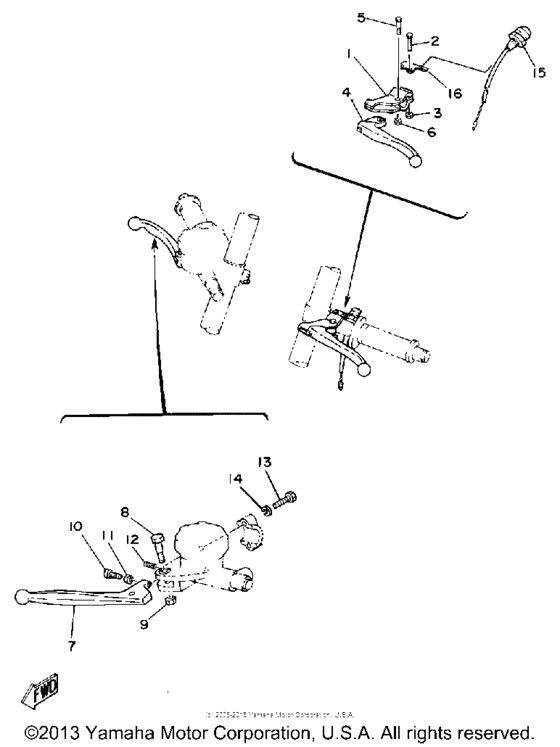

Handle switch & lever Diagram Yamaha TZ125
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 125
- Model
- TZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3V3-85540-10-00
Inactive Part Number (509-85540
509-85540 |
3V3-85540-10-00 |
— | ||
|
2
|
2
363-85546-00-00
Band
|
363-85546-00-00 |
— | ||
|
3
|
3
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
3
|
3
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
4
|
4
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
5
|
5
2X6-82310-10-00
Ignition Coil Assembly
|
2X6-82310-10-00 |
— | ||
|
6
|
6
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
8E7-82370-11-00 Plug Cap AssemblyPlug cap assy with noise suppressor AP W/NOISE SUPPRESSOR* |
8E7-82370-11-00 |
from US $44.80 |
||
| replacement | |||||
|
8
|
8
7KA-82370-00-00 Plug Cap AssyAP W/NOISE SUPPRESSOR* |
7KA-82370-00-00 |
from US $52.92 |
||
|
9
|
9
81E-82370-20-00 Plug Cap Assembly |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
9
|
9
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
10
|
10
3V3-82590-00-00
Wire Harness Assembly
|
3V3-82590-00-00 |
— | ||
