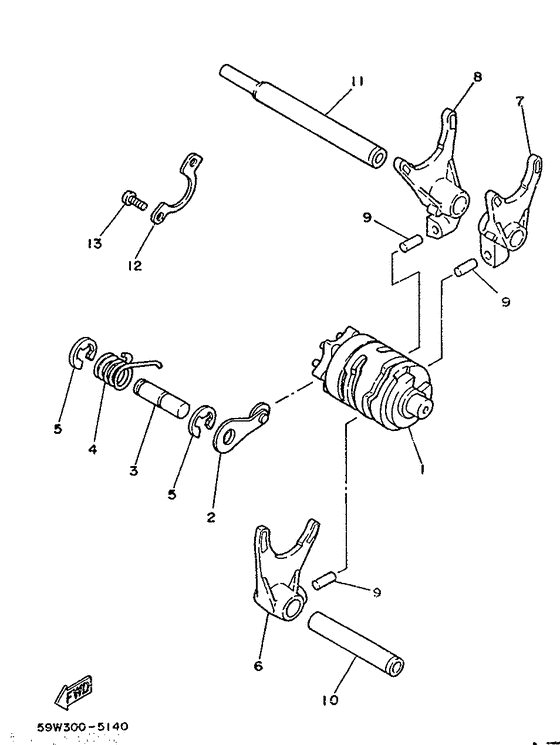

Shift Cam & Fork Diagram Yamaha TZ250
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 1RK
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TZ250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
59W-18540-00-00
Shift Cam Assembly
|
59W-18540-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
5F7-18140-00-00
Stopper Lever Assembly
|
5F7-18140-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
5F7-18197-00-00
Shaft
|
5F7-18197-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
90508-26489-00
Spring, Torsion
|
90508-26489-00 |
— | ||
|
05
|
05
93430-08007-00 Circlip, E-Type |
93430-08007-00 |
from US $1.84 |
||
|
06
|
06
5F7-18511-00-00
Fork, Shift 1
|
5F7-18511-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
5F7-18512-00-00
Fork, Shift 2
|
5F7-18512-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
5F7-18513-00-00
Fork, Shift 3
|
5F7-18513-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
93606-14154-00 Pin, Dowel |
93606-14154-00 |
from US $3.26 |
||
|
10
|
10
5F7-18531-00-00
Bar, Shif Frk Gde 1
|
5F7-18531-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
1RK-18535-00-00
Bar, Shift Fork Guide 2
|
1RK-18535-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
59W-18141-00-00
Plate, Stopper
|
59W-18141-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
