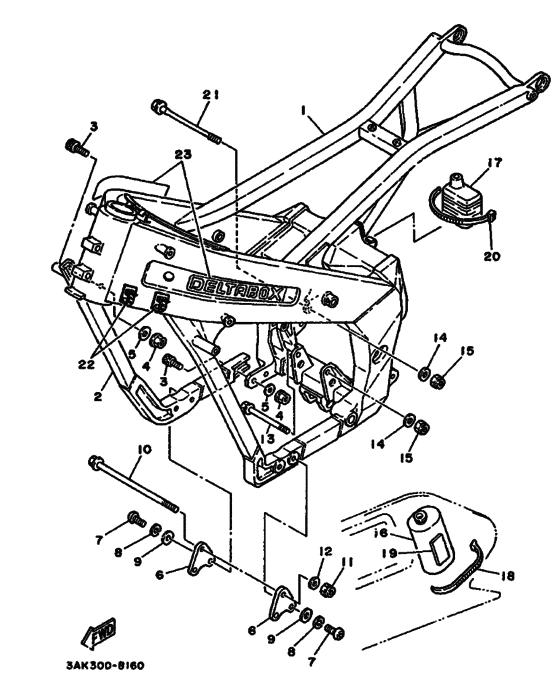

Frame Diagram Yamaha TZ250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3AK1
- Sales region
- Europe (020)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AK-21110-00-00
Frame Comp
|
3AK-21110-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
3AK-21140-00-00
Down Tube Comp
|
3AK-21140-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
913-11080-40-00
Bolt, Hexagon Socket Head
|
913-11080-40-00 |
— | ||
| replacement | |||||
|
3
|
3
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $3.26 |
||
|
4
|
4
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
5
|
5
90201-086J0-00 Washer, Plate |
90201-086J0-00 |
from US $1.35 |
||
|
6
|
6
3AK-21411-00-00
Bracket, Engine 1
|
3AK-21411-00-00 |
— | ||
|
7
|
7
92011-08025-00 Screw |
92011-08025-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
92014-08025-00 Bolt, Button Head |
92014-08025-00 |
from US $1.56 |
||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
9
|
9
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
10
|
10
90105-10401-00 Bolt, Flange |
90105-10401-00 |
from US $12.72 |
||
|
11
|
11
92901-10200-00 Washer |
92901-10200-00 |
from US $0.90 |
||
| replacement | |||||
|
11
|
11
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
12
|
12
92901-10200-00 Washer |
92901-10200-00 |
from US $0.90 |
||
| replacement | |||||
|
12
|
12
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
13
|
13
90105-08100-00
Bolt, Flange
|
90105-08100-00 |
— | ||
| replacement | |||||
|
13
|
13
95817-08095-00 Bolt, Flange(8Bt) |
95817-08095-00 |
from US $3.40 |
||
|
14
|
14
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
15
|
15
95601-08100-00 Nut, U |
95601-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
15
|
15
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
16
|
16
49V-21751-00-00 Tank, Oil |
49V-21751-00-00 |
from US $31.59 |
||
| replacement | |||||
|
16
|
16
3YL-21751-00-00 Tank, Oil |
3YL-21751-00-00 |
from US $31.59 |
||
|
17
|
17
4A0-21751-00-00 Tank, Oil |
4A0-21751-00-00 |
US $85.37 |
||
|
18
|
18
90465-13154-00 Clamp |
90465-13154-00 |
from US $2.83 |
||
| replacement | |||||
|
18
|
18
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
19
|
19
4J2-24182-00-00 Damper |
4J2-24182-00-00 |
US $3.12 |
||
| replacements | |||||
|
19
|
19
26H-21746-00-00 Damper, Side Cover |
26H-21746-00-00 |
from US $3.12 |
||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90465-13154-00 Clamp |
90465-13154-00 |
from US $2.83 |
||
| replacement | |||||
|
20
|
20
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
21
|
21
90105-08246-00 Bolt,washer Based |
90105-08246-00 |
US $8.08 |
||
| replacements | |||||
|
21
|
21
90105-08364-00 Bolt, Flange |
90105-08364-00 |
from US $5.68 |
||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90464-13087-00 Clamp |
90464-13087-00 |
from US $4.39 |
||
| replacement | |||||
|
22
|
22
90464-13185-00 Clamp |
90464-13185-00 |
from US $4.39 |
||
|
23
|
23
1RK-2118E-00-00
Emblem
|
1RK-2118E-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
