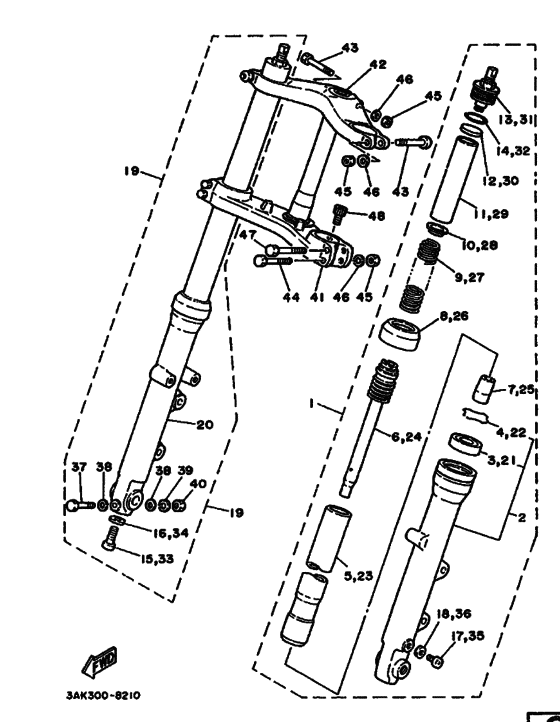

Front fork Diagram Yamaha TZ250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3AK1
- Sales region
- Europe (020)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AK-23102-00-00 Front Fork Assy (L.h) |
3AK-23102-00-00 |
US $714.80 |
||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
1RK-23126-00-00
Tube, Outer (Left)
|
1RK-23126-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
49V-23145-00-00 Oil Seal |
49V-23145-00-00 |
from US $33.01 |
||
| replacement | |||||
|
3
|
3
1NL-23145-00-00 Oil Seal |
1NL-23145-00-00 |
from US $31.76 |
||
|
4
|
4
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
5
|
5
3AK-23110-00-00 Inner Tube Comp.1 |
3AK-23110-00-00 |
US $192.74 |
||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
3AK-23170-00-00 Cylinder Comp., Front Fork |
3AK-23170-00-00 |
US $175.99 |
||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
2K8-23173-L0-00
Spindle, Taper
|
2K8-23173-L0-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
49V-23144-00-00
Seal, Dust
|
49V-23144-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
3AK-23141-00-00
Spring, Front Fork
|
3AK-23141-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
49V-23142-00-00
Seat, Spring Upper
|
49V-23142-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
2TK-23118-00-00 Spacer |
2TK-23118-00-00 |
US $4.82 |
||
|
12
|
12
49V-23149-00-00
Washer, Spring Upper
|
49V-23149-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
3AK-23111-00-00
Bolt, Cap
|
3AK-23111-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
26H-23147-00-00 O-Ring |
26H-23147-00-00 |
from US $5.81 |
||
|
15
|
15
3R4-23181-L0-00 Bolt, Hexagon Socket Head |
3R4-23181-L0-00 |
from US $8.35 |
||
|
16
|
16
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
17
|
17
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
17
|
17
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
17
|
17
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
18
|
18
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
19
|
19
3AK-23103-00-00 Front Fork Assy (R.h) |
3AK-23103-00-00 |
US $714.80 |
||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
1RK-23136-00-00
Tube, Outer (Right)
|
1RK-23136-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
49V-23145-00-00 Oil Seal |
49V-23145-00-00 |
from US $33.01 |
||
| replacement | |||||
|
21
|
21
1NL-23145-00-00 Oil Seal |
1NL-23145-00-00 |
from US $31.76 |
||
|
22
|
22
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
23
|
23
3AK-23110-00-00 Inner Tube Comp.1 |
3AK-23110-00-00 |
US $192.74 |
||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
3AK-23170-00-00 Cylinder Comp., Front Fork |
3AK-23170-00-00 |
US $175.99 |
||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
2K8-23173-L0-00
Spindle, Taper
|
2K8-23173-L0-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
49V-23144-00-00
Seal, Dust
|
49V-23144-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
3AK-23141-00-00
Spring, Front Fork
|
3AK-23141-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
49V-23142-00-00
Seat, Spring Upper
|
49V-23142-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
2TK-23118-00-00 Spacer |
2TK-23118-00-00 |
US $4.82 |
||
|
30
|
30
49V-23149-00-00
Washer, Spring Upper
|
49V-23149-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
3AK-23111-00-00
Bolt, Cap
|
3AK-23111-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
26H-23147-00-00 O-Ring |
26H-23147-00-00 |
from US $5.81 |
||
|
33
|
33
3R4-23181-L0-00 Bolt, Hexagon Socket Head |
3R4-23181-L0-00 |
from US $8.35 |
||
|
34
|
34
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
35
|
35
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
35
|
35
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
35
|
35
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
36
|
36
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
37
|
37
98021-08060-00 Bolt (663) |
98021-08060-00 |
from US $9.49 |
||
| replacement | |||||
|
37
|
37
970-13080-60-00 Bolt |
970-13080-60-00 |
from US $5.72 |
||
|
38
|
38
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
38
|
38
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
39
|
39
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
40
|
40
95311-08600-00 Nut |
95311-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
40
|
40
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
40
|
40
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
41
|
41
1RK-23340-00-00
Under Bracket Comp
|
1RK-23340-00-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
59W-23435-00-00
Crown, Handle
|
59W-23435-00-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
43
|
43
98021-08050-00 Bolt |
98021-08050-00 |
from US $3.97 |
||
| replacement | |||||
|
43
|
43
97027-08050-00 Bolt |
97027-08050-00 |
from US $3.97 |
||
|
44
|
44
98021-08060-00 Bolt (663) |
98021-08060-00 |
from US $9.49 |
||
| replacement | |||||
|
44
|
44
970-13080-60-00 Bolt |
970-13080-60-00 |
from US $5.72 |
||
|
45
|
45
90185-08054-00 Nut, Self-Locking |
90185-08054-00 |
from US $4.53 |
||
| replacements | |||||
|
45
|
45
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
45
|
45
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
|
46
|
46
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
46
|
46
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
47
|
47
98021-08065-00 Bolt |
98021-08065-00 |
from US $0.31 |
||
| replacement | |||||
|
47
|
47
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
48
|
48
91311-08016-00 Bolt, Hexagon Socket Head |
91311-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
48
|
48
91314-08016-00 Bolt, Hexagon Socket Head |
91314-08016-00 |
from US $1.42 |
||
