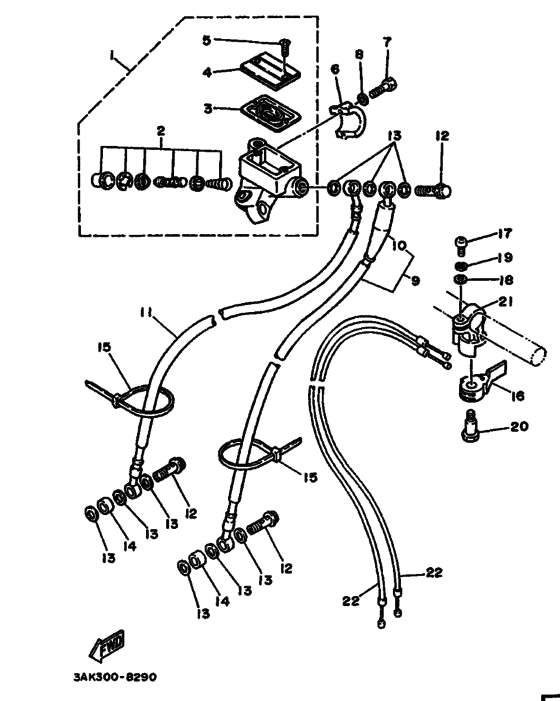

Front master cylinder Diagram Yamaha TZ250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3AK1
- Sales region
- Europe (020)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AK-25870-00-00
Master Cylinder Sub Assy
|
3AK-25870-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4H7-W0041-00-00 Cylinder Kit, Master |
4H7-W0041-00-00 |
from US $65.02 |
||
|
3
|
3
4K0-25854-00-00
Diaphragm, Reservoir
|
4K0-25854-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4HM-25854-00-00 Diaphragm, Reservoir |
4HM-25854-00-00 |
from US $17.48 |
||
|
4
|
4
3AK-25852-00-00 Cap, Reservoir |
3AK-25852-00-00 |
from US $25.79 |
||
| replacement | |||||
|
4
|
4
3GM-25852-02-00 Cap, Reservoir |
3GM-25852-02-00 |
from US $15.84 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
7
|
7
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
8
|
8
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
3AK-25872-00-00
Hose, Brake 1
|
3AK-25872-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
34L-25881-00-00
Protector, Brake Hose
|
34L-25881-00-00 |
— | ||
|
11
|
11
3AK-25873-00-00
Hose, Brake 2
|
3AK-25873-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
90401-10112-00
Bolt, Union
|
90401-10112-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
13
|
13
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
14
|
14
90387-102M6-00
Collar
|
90387-102M6-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90465-13154-00 Clamp |
90465-13154-00 |
from US $2.83 |
||
| replacement | |||||
|
15
|
15
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
16
|
16
240-83941-00-00 Lever, Starter |
240-83941-00-00 |
US $216.87 |
||
|
17
|
17
92501-06018-00 Screw, Pan Head |
92501-06018-00 |
US $3.26 |
||
| replacement | |||||
|
17
|
17
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
18
|
18
90201-12175-00 Washer, Plate |
90201-12175-00 |
from US $3.40 |
||
|
19
|
19
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
90109-08398-00
Bolt
|
90109-08398-00 |
— | ||
|
21
|
21
240-83946-00-00
Holder, Starter Lever
|
240-83946-00-00 |
— | ||
|
22
|
22
3AK-26331-00-00
Cable, Starter 1
|
3AK-26331-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
