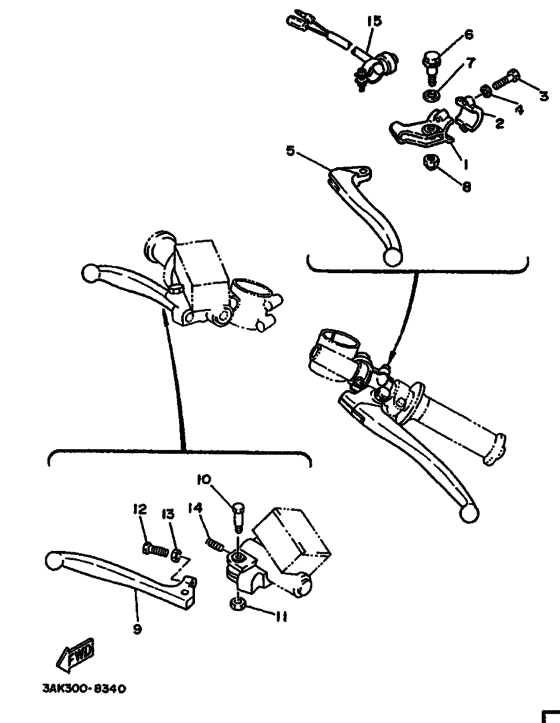

Handle switch & lever Diagram Yamaha TZ250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3AK1
- Sales region
- Europe (020)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5F6-82911-00-00
Holder, Lever 1
|
5F6-82911-00-00 |
— | ||
|
2
|
2
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
3
|
3
97006-05020-00 Bolt |
97006-05020-00 |
from US $1.42 |
||
| replacements | |||||
|
3
|
3
90101-05396-00 Bolt (2E9) |
90101-05396-00 |
from US $1.70 |
||
|
3
|
3
970-27050-20-00
Bolt
|
970-27050-20-00 |
— | ||
|
4
|
4
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
4
|
4
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
5
|
5
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $10.10 |
||
|
6
|
6
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
6
|
6
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
7
|
7
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
8
|
8
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
9
|
9
1RK-83922-00-00
Lever 2
|
1RK-83922-00-00 |
— | ||
|
10
|
10
341-83925-00-00 Bolt |
341-83925-00-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
11
|
11
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
11
|
11
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
11
|
11
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
12
|
12
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
13
|
13
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
14
|
14
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
15
|
15
4A0-83976-00-00 Switch, Handle 1 |
4A0-83976-00-00 |
from US $31.58 |
||
| replacement | |||||
|
15
|
15
3LC-83976-00-00 Switch, Handle 1 |
3LC-83976-00-00 |
from US $25.34 |
||
