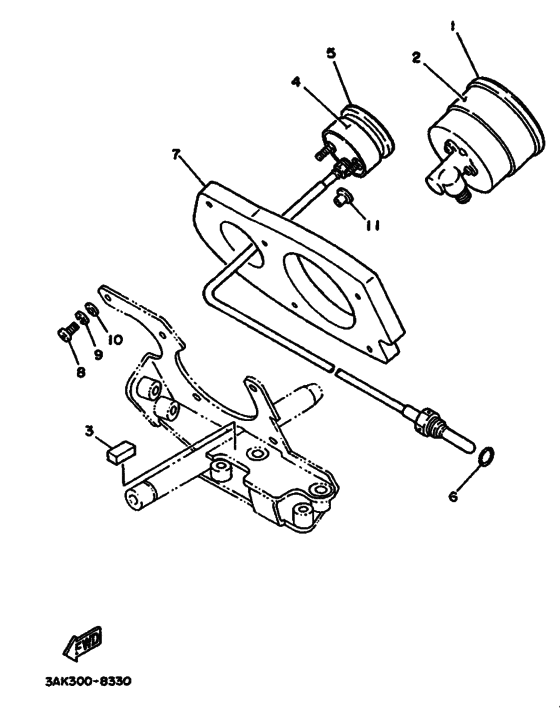

Meter Diagram Yamaha TZ250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3AK1
- Sales region
- Europe (020)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2KM-83540-00-00 Tachometer Assy |
2KM-83540-00-00 |
US $270.27 |
||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
1KT-82122-00-00 Damper |
1KT-82122-00-00 |
US $3.40 |
||
| replacement | |||||
|
2
|
2
4A0-83541-00-00 Damper |
4A0-83541-00-00 |
from US $3.40 |
||
|
3
|
3
1UJ-21638-00-00
Damper 1
|
1UJ-21638-00-00 |
— | ||
| replacement | |||||
|
3
|
3
83R-14425-00-00 Damper 1 |
83R-14425-00-00 |
from US $1.56 |
||
|
4
|
4
4A0-83592-00-00
Damper
|
4A0-83592-00-00 |
— | ||
| replacements | |||||
|
4
|
4
3YF-24724-01-00
Damper (3Yf-24724-00-00)
|
3YF-24724-01-00 |
— | ||
|
4
|
4
3YF-24724-00-00
Damper (3Yf-24724-00-00)
|
3YF-24724-00-00 |
— | ||
|
5
|
5
4A0-83590-00-00
Water Temperature Assy
|
4A0-83590-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
93210-10118-00 O-Ring |
93210-10118-00 |
from US $3.40 |
||
|
7
|
7
3AK-83611-00-00
Panel, Meter
|
3AK-83611-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
9
|
9
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
11
|
11
4A0-83522-00-00 Collar |
4A0-83522-00-00 |
from US $23.63 |
||
