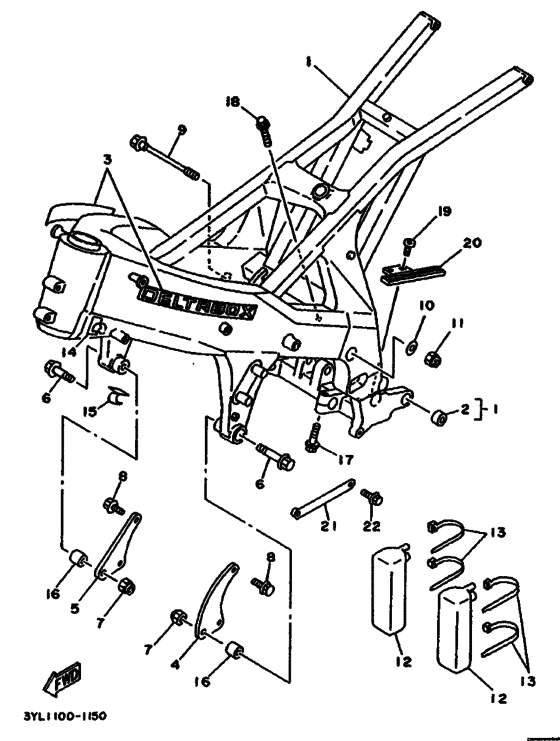

Frame Diagram Yamaha TZ250
- Year
- 1991
- Colour
- White (WW; 0036)
- Model code
- 3YL1
- Sales region
- Europe (030)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3YL-21110-00-00
Frame Comp
|
3YL-21110-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
3YL-21110-01-00
Frame Comp
SEE SEAT SECTION |
3YL-21110-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
SEE SEAT SECTION |
999-99999-99-00 |
— | ||
|
2
|
2
1UF-27414-00-00 Damper, Footrest |
1UF-27414-00-00 |
from US $11.33 |
||
| replacement | |||||
|
2
|
2
36Y-27414-00-00 Damper, Footrest |
36Y-27414-00-00 |
from US $7.42 |
||
|
3
|
3
1RK-2118E-00-00
Emblem
DEL TABOX |
1RK-2118E-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
DEL TABOX |
999-99999-99-00 |
— | ||
|
4
|
4
3YL-21411-00-00
Bracket, Engine 1
|
3YL-21411-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
3YL-21419-00-00
Bracket, Engine 2
|
3YL-21419-00-00 |
— | ||
|
6
|
6
95801-10045-00 Bolt, Flange |
95801-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
6
|
6
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.77 |
||
|
7
|
7
95601-10200-00 Nut, Self-Locking |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
7
|
7
90185-10170-00 Nut, Self-Locking |
90185-10170-00 |
from US $6.94 |
||
|
8
|
8
958-21080-20-00
Bolt, Flange (95811-08020-00)
|
958-21080-20-00 |
— | ||
| replacement | |||||
|
8
|
8
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
9
|
9
90105-10300-00 Bolt, Flange |
90105-10300-00 |
from US $6.40 |
||
|
10
|
10
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
11
|
11
956-01101-00-00
Nut, U (737 Steering Column)
|
956-01101-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
12
|
12
3YL-21751-00-00 Tank, Oil |
3YL-21751-00-00 |
from US $31.59 |
||
|
13
|
13
904-64141-17-00
Clamp
|
904-64141-17-00 |
— | ||
| replacement | |||||
|
13
|
13
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
14
|
14
90464-13135-00 Clamp |
90464-13135-00 |
from US $4.39 |
||
| replacement | |||||
|
14
|
14
90464-13185-00 Clamp |
90464-13185-00 |
from US $4.39 |
||
|
15
|
15
90464-20136-00 Clamp |
90464-20136-00 |
from US $3.04 |
||
| replacement | |||||
|
15
|
15
904-64200-21-00 Clamp |
904-64200-21-00 |
from US $3.54 |
||
|
16
|
16
3YL-21459-00-00 Spacer |
3YL-21459-00-00 |
from US $4.21 |
||
| replacement | |||||
|
16
|
16
90387-104U5-00 Collar |
90387-104U5-00 |
US $8.64 |
||
|
17
|
17
95811-06030-00 Bolt, Flange(2Hr) |
95811-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
18
|
18
95801-06035-00 Bolt, Flange |
95801-06035-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
95817-06035-00 Bolt, Flange |
95817-06035-00 |
from US $1.02 |
||
|
19
|
19
98901-05014-00 Screw, Bind |
98901-05014-00 |
from US $1.56 |
||
| replacements | |||||
|
19
|
19
901-5405X-03-00
Screw, Binding (11H)
|
901-5405X-03-00 |
— | ||
|
19
|
19
98907-05014-00 Screw, Bind |
98907-05014-00 |
from US $1.56 |
||
|
20
|
20
3YL-22151-00-00
Seal, Guard
|
3YL-22151-00-00 |
— | ||
| replacements | |||||
|
20
|
20
4TW-22151-00-00
Seal, Guard
|
4TW-22151-00-00 |
— | ||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
3YL-2117A-00-00
Stay
|
3YL-2117A-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
