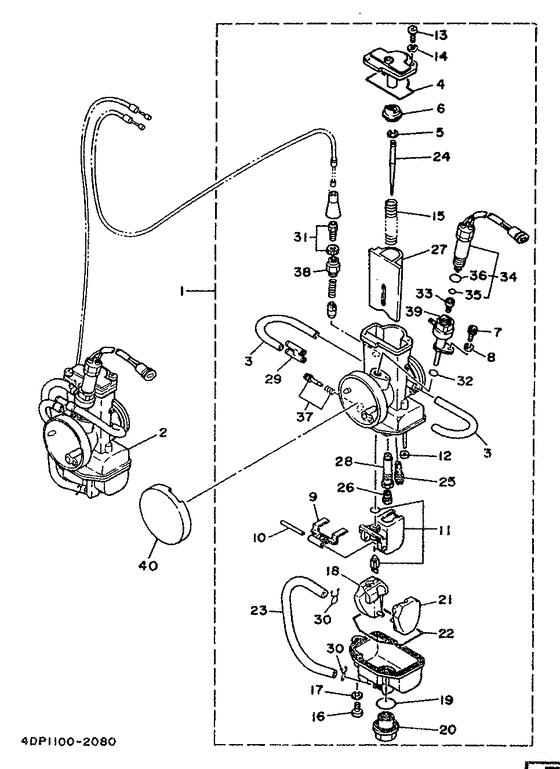

Carburetor Diagram Yamaha TZ250
- Year
- 1993
- Colour
- White (WW; 0036)
- Model code
- 4DP2
- Sales region
- North America (999)
- Engine Capacity
- 250
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4DP-14101-01-00 Carburetor Assy 1 |
4DP-14101-01-00 |
US $402.59 |
||
|
02
|
02
4DP-14102-01-00 Carburetor Assy 2 |
4DP-14102-01-00 |
US $402.59 |
||
| replacement | |||||
|
02
|
02
4DP-14102-02-00
Carburetor Assy 2
|
4DP-14102-02-00 |
— | ||
|
03
|
03
310-14196-00-00
Pipe, Overflow
|
310-14196-00-00 |
— | ||
|
04
|
04
3JD-14147-00-00 O-Ring |
3JD-14147-00-00 |
from US $13 |
||
|
05
|
05
256-14919-00-00 Clip |
256-14919-00-00 |
from US $3.12 |
||
|
06
|
06
3JD-14194-00-00
Ring
|
3JD-14194-00-00 |
— | ||
|
07
|
07
91312-04010-00 Bolt |
91312-04010-00 |
from US $1.28 |
||
| replacement | |||||
|
07
|
07
91317-04010-00 Bolt |
91317-04010-00 |
from US $1.28 |
||
|
08
|
08
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
08
|
08
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
09
|
09
363-14187-00-00
Arm, Float
|
363-14187-00-00 |
— | ||
|
10
|
10
353-14186-00-00 Pin, Float |
353-14186-00-00 |
from US $4.39 |
||
|
11
|
11
3JD-14107-35-00 Needle Valve Set |
3JD-14107-35-00 |
from US $51.84 |
||
|
12
|
12
214-14118-00-00 Cap |
214-14118-00-00 |
from US $10.39 |
||
|
13
|
13
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
14
|
14
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
3JD-14131-00-00
Spring, Throttle Valve
|
3JD-14131-00-00 |
— | ||
|
16
|
16
98580-03010-00 Screw Pan Head |
98580-03010-00 |
from US $1.98 |
||
|
17
|
17
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
18
|
18
3JD-14185-00-00
Float
|
3JD-14185-00-00 |
— | ||
|
19
|
19
3JE-14561-00-00 O-Ring |
3JE-14561-00-00 |
from US $9.49 |
||
|
20
|
20
3TC-14115-00-00
Plug, Screw
|
3TC-14115-00-00 |
— | ||
| replacement | |||||
|
20
|
20
4DP-14115-00-00
Plug, Screw
|
4DP-14115-00-00 |
— | ||
|
21
|
21
3JE-14185-00-00
Float
|
3JE-14185-00-00 |
— | ||
|
22
|
22
3JE-14147-00-00 O-Ring |
3JE-14147-00-00 |
from US $14.31 |
||
|
23
|
23
3V8-14987-00-00
Hose
|
3V8-14987-00-00 |
— | ||
|
24
|
24
239-14116-80-00
Needle
|
239-14116-80-00 |
— | ||
|
25
|
25
193-14142-20-00 Jet, Pilot #20Std |
193-14142-20-00 |
from US $10.48 |
||
|
25
|
25
193-14142-22-00 Jet, Pilot (#22.5)Ur |
193-14142-22-00 |
from US $11.54 |
||
|
25
|
25
193-14142-17-00 Jet, Pilot #17 (#17.5) |
193-14142-17-00 |
from US $10.94 |
||
|
26
|
26
137-14143-82-00 Jet, Main (#410)Ur |
137-14143-82-00 |
from US $10.66 |
||
|
26
|
26
137-14143-84-00 Jet, Main (#420)Ur |
137-14143-84-00 |
from US $10.66 |
||
|
26
|
26
137-14143-86-00 Jet, Main (#430)Ur |
137-14143-86-00 |
from US $10.66 |
||
|
26
|
26
137-14143-88-00 Jet, Main (#440)Ur |
137-14143-88-00 |
from US $10.66 |
||
|
26
|
26
137-14143-90-00 Jet, Main (#450)Ur |
137-14143-90-00 |
from US $9.76 |
||
|
26
|
26
137-14143-92-00 Jet, Main (#460)Ur |
137-14143-92-00 |
from US $9.76 |
||
|
26
|
26
137-14143-94-00 Jet, Main (#470)Ur |
137-14143-94-00 |
from US $9.76 |
||
|
26
|
26
137-14143-96-00 Jet, Main (#480)Ur |
137-14143-96-00 |
from US $9.77 |
||
|
26
|
26
137-14143-98-00 Jet, Main (490)Ur |
137-14143-98-00 |
from US $7.61 |
||
|
26
|
26
137-14143-68-00 Jet, Main (#340)Ur |
137-14143-68-00 |
from US $10.62 |
||
|
26
|
26
137-1414K-00-00 Jet, Main (500)Ur |
137-1414K-00-00 |
from US $9.45 |
||
|
26
|
26
137-14143-70-00 Jet, Main (350)Ur |
137-14143-70-00 |
from US $9.77 |
||
|
26
|
26
137-1414K-01-00
Jet, Main
Ur |
137-1414K-01-00 |
— | ||
|
26
|
26
137-14143-72-00 Jet, Main (360)Ur |
137-14143-72-00 |
from US $9.77 |
||
|
26
|
26
137-1414K-08-00 Jet, Main (540)Std |
137-1414K-08-00 |
from US $10.78 |
||
|
26
|
26
137-14143-74-00 Jet, Main (370)Ur |
137-14143-74-00 |
from US $10.67 |
||
|
26
|
26
137-14174-36-6A
Cap, Plunger
Ur |
137-14174-36-6A |
— | ||
|
26
|
26
137-14143-76-00 Jet, Main (380)Ur |
137-14143-76-00 |
from US $10.53 |
||
|
26
|
26
137-14143-78-00 Jet, Main (#390)Ur |
137-14143-78-00 |
from US $9.77 |
||
|
26
|
26
137-14143-80-00 Jet, Main (#400)Ur |
137-14143-80-00 |
from US $10.66 |
||
|
27
|
27
3JD-14112-35-00
Valve, Throttle (C.a 3.5)
|
3JD-14112-35-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
3TC-14141-R4-00
Nozzle, Main (R-4)
Ur |
3TC-14141-R4-00 |
— | ||
|
28
|
28
3TC-14141-R8-00
Nozzle, Main (R-8)
Std |
3TC-14141-R8-00 |
— | ||
|
28
|
28
3TC-14141-R6-00
Nozzle, Main (R-6)
Ur |
3TC-14141-R6-00 |
— | ||
|
29
|
29
8J0-14251-00-00 Nipple |
8J0-14251-00-00 |
US $9.97 |
||
|
30
|
30
8A7-14139-00-00 Clip, Pipe |
8A7-14139-00-00 |
from US $3.74 |
||
|
31
|
31
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $11.79 |
||
|
32
|
32
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $3.04 |
||
|
33
|
33
3G2-14231-10-00
Jet, Power (#50)
Ur |
3G2-14231-10-00 |
— | ||
|
33
|
33
3G2-14231-12-00 Jet, MainStd |
3G2-14231-12-00 |
from US $12.02 |
||
|
33
|
33
3G2-14231-14-00 Jet, MainUr |
3G2-14231-14-00 |
from US $13.10 |
||
|
34
|
34
3LC-1410H-00-00
Fuel Cut Solenoid Valve
|
3LC-1410H-00-00 |
— | ||
|
35
|
35
3LC-14147-00-00
O-Ring
|
3LC-14147-00-00 |
— | ||
|
36
|
36
3LC-1416A-00-00 O-Ring |
3LC-1416A-00-00 |
from US $6.32 |
||
|
37
|
37
3JD-1410A-00-00
Starter Set
|
3JD-1410A-00-00 |
— | ||
|
38
|
38
127-14174-00-00 Cap, Plunger |
127-14174-00-00 |
from US $10.64 |
||
|
39
|
39
4DP-14261-00-00
Holder
|
4DP-14261-00-00 |
— | ||
|
40
|
40
5F7-14157-01-00
Cover, Mixing
|
5F7-14157-01-00 |
— | ||
