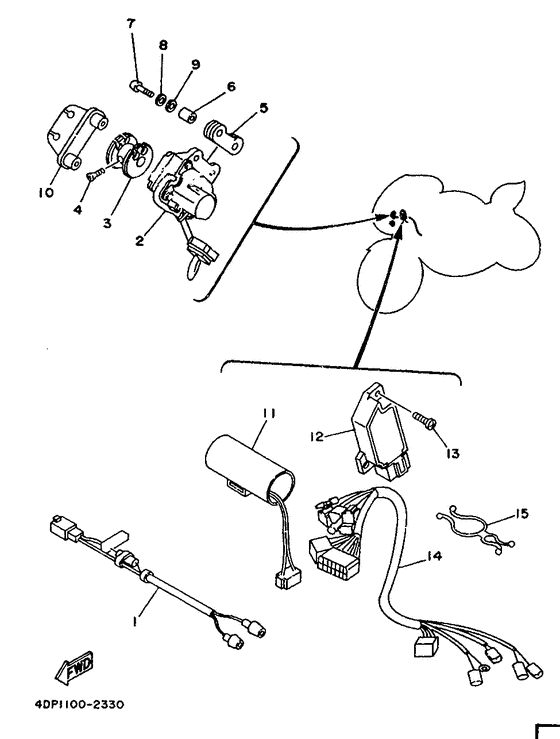

Electrical 1 Diagram Yamaha TZ250
- Year
- 1993
- Colour
- White (WW; 0036)
- Model code
- 4DP2
- Sales region
- North America (999)
- Engine Capacity
- 250
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3TC-82117-00-00
Wire, Lead
|
3TC-82117-00-00 |
— | ||
|
02
|
02
3LC-85850-00-00 Geared Motor Comp |
3LC-85850-00-00 |
US $1,054.46 |
||
|
03
|
03
3YL-85821-00-00
Pulley, Drive
|
3YL-85821-00-00 |
— | ||
|
04
|
04
90151-05031-00 Screw, Countersunk |
90151-05031-00 |
from US $2.13 |
||
| replacement | |||||
|
04
|
04
90151-05023-00 Screw, Countersunk |
90151-05023-00 |
from US $2.13 |
||
|
05
|
05
29L-85823-00-00
Damper
|
29L-85823-00-00 |
— | ||
|
06
|
06
90387-064A5-00 Collar |
90387-064A5-00 |
from US $1.98 |
||
| replacement | |||||
|
06
|
06
90387-06088-00 Collar |
90387-06088-00 |
from US $1.71 |
||
|
07
|
07
98580-06035-00 Screw Pan Head |
98580-06035-00 |
US $2.13 |
||
| replacement | |||||
|
07
|
07
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
08
|
08
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
09
|
09
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
09
|
09
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
10
|
10
3YL-85824-00-00 Bracket, Cable |
3YL-85824-00-00 |
US $132.28 |
||
|
11
|
11
3TC-81965-00-00 Condenser, Smoothing |
3TC-81965-00-00 |
from US $69.22 |
||
|
12
|
12
1JK-81960-A1-00 Rectifier & Regulator Assy |
1JK-81960-A1-00 |
from US $158.88 |
||
|
13
|
13
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
14
|
14
4DP-82590-00-00
Wire Harness Assy
|
4DP-82590-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90464-26114-00 Clamp |
90464-26114-00 |
from US $1.35 |
||
