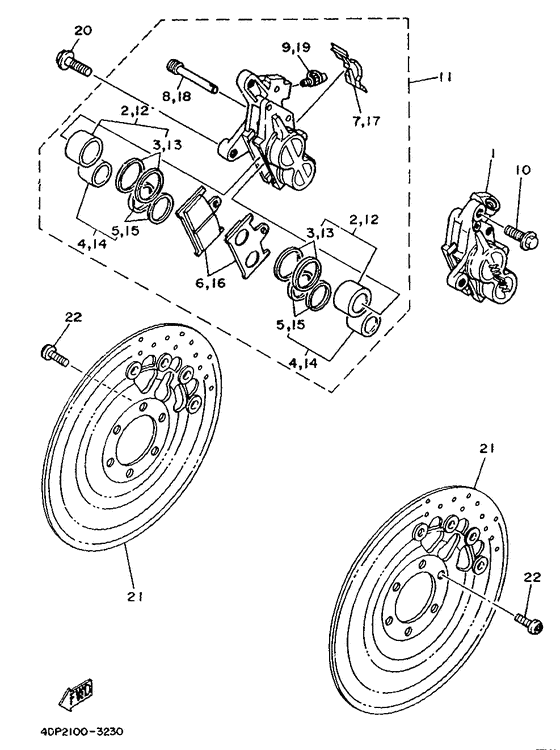

Front brake. caliper Diagram Yamaha TZ250
- Year
- 1993
- Colour
- White (WW; 0036)
- Model code
- 4DP2
- Sales region
- North America (999)
- Engine Capacity
- 250
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4DP-2580T-10-00
Caliper Assy (Left)
|
4DP-2580T-10-00 |
— | ||
| replacement | |||||
|
01
|
01
4TW-2580T-00-00
Caliper Assy (Left)
|
4TW-2580T-00-00 |
— | ||
|
02
|
02
3FV-W0057-00-00 Piston Assy, Caliper |
3FV-W0057-00-00 |
US $96.88 |
||
|
03
|
03
3FV-W0047-00-00 Caliper Seal Kit |
3FV-W0047-00-00 |
from US $27.99 |
||
|
04
|
04
3FV-W0057-10-00 Piston Assy, Caliper |
3FV-W0057-10-00 |
from US $98.80 |
||
|
05
|
05
3FV-W0047-10-00
Caliper Seal Kit
|
3FV-W0047-10-00 |
— | ||
|
06
|
06
4DP-W0045-00-00 Brake Pad Kit |
4DP-W0045-00-00 |
US $58.70 |
||
| replacement | |||||
|
06
|
06
4TW-W0045-00-00 Brake Pad Kit |
4TW-W0045-00-00 |
US $55.44 |
||
|
07
|
07
3FV-25919-00-00 Support, Pad |
3FV-25919-00-00 |
from US $9.72 |
||
|
08
|
08
3FV-25924-00-00 Pin, Pad |
3FV-25924-00-00 |
from US $7.08 |
||
|
09
|
09
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $10.37 |
||
|
10
|
10
90105-10577-00 Bolt, Flange |
90105-10577-00 |
from US $9.21 |
||
| replacement | |||||
|
10
|
10
90105-10725-00 Bolt, Washer Based |
90105-10725-00 |
from US $7.61 |
||
|
11
|
11
4DP-2580U-10-00 Caliper Assy (Right) |
4DP-2580U-10-00 |
US $319.72 |
||
|
12
|
12
3FV-W0057-00-00 Piston Assy, Caliper |
3FV-W0057-00-00 |
US $96.88 |
||
|
13
|
13
3FV-W0047-00-00 Caliper Seal Kit |
3FV-W0047-00-00 |
from US $27.99 |
||
|
14
|
14
3FV-W0057-10-00 Piston Assy, Caliper |
3FV-W0057-10-00 |
from US $98.80 |
||
|
15
|
15
3FV-W0047-10-00
Caliper Seal Kit
|
3FV-W0047-10-00 |
— | ||
|
16
|
16
4DP-W0045-00-00 Brake Pad Kit |
4DP-W0045-00-00 |
US $58.70 |
||
| replacement | |||||
|
16
|
16
4TW-W0045-00-00 Brake Pad Kit |
4TW-W0045-00-00 |
US $55.44 |
||
|
17
|
17
3FV-25919-00-00 Support, Pad |
3FV-25919-00-00 |
from US $9.72 |
||
|
18
|
18
3FV-25924-00-00 Pin, Pad |
3FV-25924-00-00 |
from US $7.08 |
||
|
19
|
19
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $10.37 |
||
|
20
|
20
90105-10577-00 Bolt, Flange |
90105-10577-00 |
from US $9.21 |
||
| replacement | |||||
|
20
|
20
90105-10725-00 Bolt, Washer Based |
90105-10725-00 |
from US $7.61 |
||
|
21
|
21
4DP-2581T-10-00
Disk Brake Assy
|
4DP-2581T-10-00 |
— | ||
|
22
|
22
901-09087-18-00
Bolt,hex. Socket But
|
901-09087-18-00 |
— | ||
| replacement | |||||
|
22
|
22
90111-08084-00 Bolt,hex. Socket Button |
90111-08084-00 |
from US $5.81 |
||
