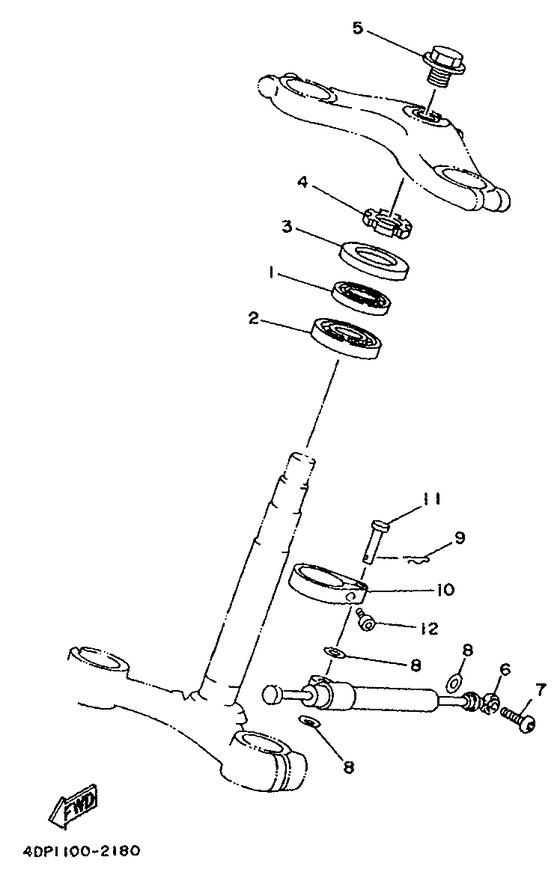

Steering Diagram Yamaha TZ250
- Year
- 1993
- Colour
- White (WW; 0036)
- Model code
- 4DP2
- Sales region
- North America (999)
- Engine Capacity
- 250
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.62 |
||
|
02
|
02
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.15 |
||
|
03
|
03
1J7-23415-00-00 Cover, Ball Race 1 |
1J7-23415-00-00 |
from US $4.16 |
||
|
04
|
04
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
04
|
04
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
04
|
04
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
05
|
05
2KM-23451-00-00 Bolt, Fitting 1 |
2KM-23451-00-00 |
from US $9.63 |
||
| replacement | |||||
|
05
|
05
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
06
|
06
4DP-23490-00-00
Handlebar Shimmy Damper Assy
|
4DP-23490-00-00 |
— | ||
| replacements | |||||
|
06
|
06
4JT-23490-01-00
element
|
4JT-23490-01-00 |
— | ||
|
06
|
06
4JT-23490-00-00
Handlebar Shimmy Damper Assy
|
4JT-23490-00-00 |
— | ||
|
07
|
07
92011-08025-00 Screw |
92011-08025-00 |
from US $1.56 |
||
| replacement | |||||
|
07
|
07
92014-08025-00 Bolt, Button Head |
92014-08025-00 |
from US $1.56 |
||
|
08
|
08
90201-08455-00 Washer, Plate |
90201-08455-00 |
from US $4.11 |
||
|
09
|
09
90468-16099-00 Clip |
90468-16099-00 |
from US $1.98 |
||
| replacement | |||||
|
09
|
09
90468-16192-00 Clip |
90468-16192-00 |
from US $1.98 |
||
|
10
|
10
3YL-23495-00-00
Stay, Damper
|
3YL-23495-00-00 |
— | ||
|
11
|
11
91701-08042-00 Pin |
91701-08042-00 |
from US $2.98 |
||
|
12
|
12
91311-06025-00 Bolt, Hexagon Socket Head |
91311-06025-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
