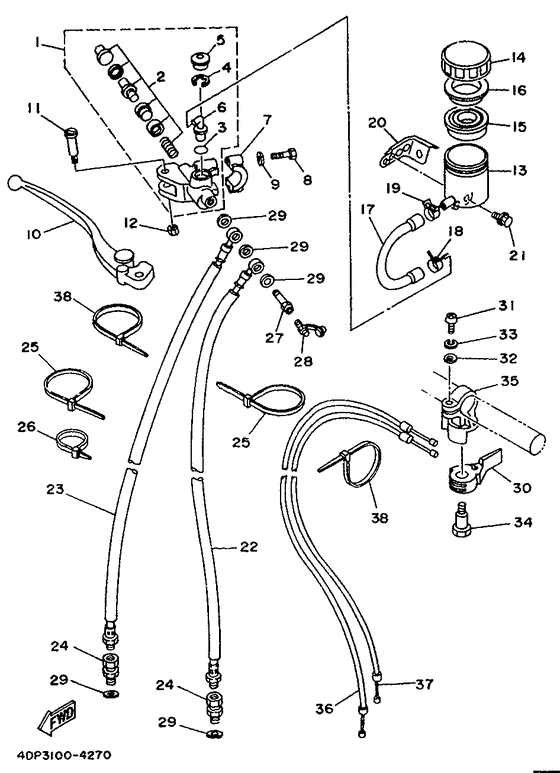

Front master cylinder Diagram Yamaha TZ250
- Year
- 1994
- Colour
- White (WW; 0036)
- Model code
- 4DP3
- Sales region
- North America (999)
- Engine Capacity
- 250
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3FV-W2587-00-00
Master Cylinder Sub Assy
|
3FV-W2587-00-00 |
— | ||
|
02
|
02
4K0-W0041-50-00 Cylinder Kit, Master |
4K0-W0041-50-00 |
from US $51.26 |
||
|
03
|
03
93210-15620-00 O-Ring |
93210-15620-00 |
from US $1.39 |
||
| replacement | |||||
|
03
|
03
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.52 |
||
|
04
|
04
2VN-25866-00-00 Circlip |
2VN-25866-00-00 |
from US $3.12 |
||
|
05
|
05
3FV-2589A-00-00 Cover, Dust |
3FV-2589A-00-00 |
from US $8.60 |
||
|
06
|
06
2VN-2582A-00-00 Joint |
2VN-2582A-00-00 |
from US $8.17 |
||
| replacements | |||||
|
06
|
06
2VN-2582A-50-00 Joint |
2VN-2582A-50-00 |
from US $10.54 |
||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
08
|
08
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
08
|
08
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
09
|
09
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
09
|
09
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
10
|
10
3TJ-83922-00-00 Lever 2 |
3TJ-83922-00-00 |
from US $60.10 |
||
| replacement | |||||
|
10
|
10
3TJ-83922-01-00 Lever 2 |
3TJ-83922-01-00 |
from US $60.10 |
||
|
11
|
11
3FV-2589F-00-00 Bolt, Lever |
3FV-2589F-00-00 |
from US $7.21 |
||
|
12
|
12
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
13
|
13
3FV-25894-00-00 Tank, Reservoir |
3FV-25894-00-00 |
from US $32.30 |
||
|
14
|
14
3FV-25852-00-00 Cap, Reservoir |
3FV-25852-00-00 |
from US $21.96 |
||
| replacement | |||||
|
14
|
14
3GM-25852-50-00 Cap, Reservoir |
3GM-25852-50-00 |
from US $24.28 |
||
|
15
|
15
3FV-25854-00-00 Gasket, Diaphragm |
3FV-25854-00-00 |
from US $11.05 |
||
|
16
|
16
2J2-25855-50-00 Bush,diaphragm |
2J2-25855-50-00 |
from US $7.79 |
||
|
17
|
17
3YL-2582F-00-00 Hose |
3YL-2582F-00-00 |
from US $16.52 |
||
|
18
|
18
90467-12085-00 Clip |
90467-12085-00 |
from US $4.86 |
||
|
19
|
19
3PA-24356-00-00 Clip, Pipe 1 |
3PA-24356-00-00 |
from US $4.03 |
||
|
20
|
20
3YL-26292-00-00
Stay
|
3YL-26292-00-00 |
— | ||
|
21
|
21
958-16060-12-00
Bolt, Flange(2Xj)
|
958-16060-12-00 |
— | ||
| replacement | |||||
|
21
|
21
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
22
|
22
4DP-25872-00-00
Hose, Brake 1
|
4DP-25872-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
4DP-25873-00-00
Hose, Brake 2
|
4DP-25873-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99031-63-00
Hose,brake 2 (4Dp2587300)
|
999-99031-63-00 |
— | ||
|
24
|
24
3LC-25885-00-00 Joint |
3LC-25885-00-00 |
from US $19.41 |
||
|
25
|
25
904-64141-17-00
Clamp
|
904-64141-17-00 |
— | ||
| replacement | |||||
|
25
|
25
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
26
|
26
90465-13169-00 Band |
90465-13169-00 |
from US $1.28 |
||
| replacement | |||||
|
26
|
26
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
27
|
27
90401-10142-00
Bolt, Union
|
90401-10142-00 |
— | ||
| replacement | |||||
|
27
|
27
90401-10174-00
Bolt, Union
|
90401-10174-00 |
— | ||
|
28
|
28
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $10.37 |
||
|
29
|
29
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
29
|
29
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
30
|
30
240-83941-00-00 Lever, Starter |
240-83941-00-00 |
US $216.87 |
||
|
31
|
31
98503-06018-00 Screw, Pan Head (92503-060180-00) |
98503-06018-00 |
US $2.99 |
||
| replacement | |||||
|
31
|
31
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
32
|
32
90201-12175-00 Washer, Plate |
90201-12175-00 |
from US $3.40 |
||
|
33
|
33
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
34
|
34
90109-08398-00
Bolt
|
90109-08398-00 |
— | ||
|
35
|
35
240-83946-00-00
Holder, Starter Lever
|
240-83946-00-00 |
— | ||
|
36
|
36
4DP-26331-00-00 Cable, Starter 1L=905 |
4DP-26331-00-00 |
from US $15.70 |
||
|
37
|
37
4DP-26334-00-00 Cable, Starter 2L=730 |
4DP-26334-00-00 |
from US $14.31 |
||
| replacement | |||||
|
37
|
37
4DP-26334-01-00 Cable, Starter 2L=730 |
4DP-26334-01-00 |
from US $13.10 |
||
|
38
|
38
904-64141-17-00
Clamp
|
904-64141-17-00 |
— | ||
| replacement | |||||
|
38
|
38
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
