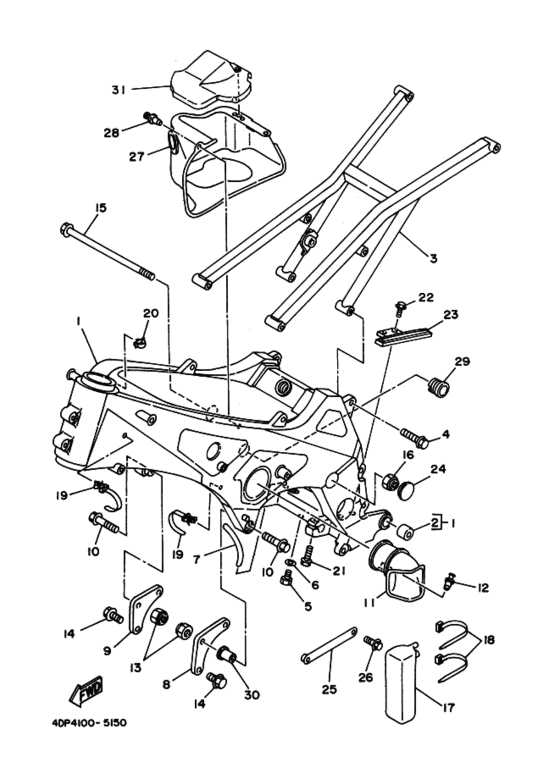

Frame Diagram Yamaha TZ250
- Year
- 1995
- Colour
- White (WW; 0036)
- Model code
- 4DP4
- Sales region
- Europe (999)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4DP-21110-21-00
Frame Comp
|
4DP-21110-21-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
36Y-27414-00-00 Damper, Footrest |
36Y-27414-00-00 |
from US $7.42 |
||
|
3
|
3
4DP-21190-00-00
Rear Frame Comp
|
4DP-21190-00-00 |
— | ||
|
4
|
4
901-09087-18-00
Bolt,hex. Socket But
|
901-09087-18-00 |
— | ||
| replacement | |||||
|
4
|
4
90111-08084-00 Bolt,hex. Socket Button |
90111-08084-00 |
from US $5.81 |
||
|
5
|
5
90338-06041-00 Plug |
90338-06041-00 |
from US $9.49 |
||
|
6
|
6
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.39 |
||
|
7
|
7
90445-093H6-00 Hose (L200) |
90445-093H6-00 |
from US $3.76 |
||
| replacement | |||||
|
7
|
7
90445-090G9-00 Hose (L685) |
90445-090G9-00 |
from US $16.86 |
||
|
8
|
8
4DP-21411-00-00
Bracket, Engine 1
|
4DP-21411-00-00 |
— | ||
|
9
|
9
4DP-21419-00-00
Bracket, Engine 2
|
4DP-21419-00-00 |
— | ||
|
10
|
10
901-05103-16-00
Bolt, Flange
|
901-05103-16-00 |
— | ||
| replacements | |||||
|
10
|
10
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.91 |
||
|
10
|
10
90105-10778-00 Bolt, Flange |
90105-10778-00 |
from US $4.53 |
||
|
11
|
11
4DP-2135H-00-00
Pipe, Inlet
|
4DP-2135H-00-00 |
— | ||
|
12
|
12
90269-05049-00 Rivet |
90269-05049-00 |
from US $2.08 |
||
|
13
|
13
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
13
|
13
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
14
|
14
95027-08020-00 Bolt, Flange |
95027-08020-00 |
from US $1.39 |
||
| replacement | |||||
|
14
|
14
90105-081A1-00 Bolt, Washer Based(3Jp) |
90105-081A1-00 |
from US $2.77 |
||
|
15
|
15
90105-10227-00 Bolt, Washer Based |
90105-10227-00 |
US $7.79 |
||
| replacement | |||||
|
15
|
15
95817-10165-00 Bolt,flange |
95817-10165-00 |
from US $7.79 |
||
|
16
|
16
90179-10594-00
Nut
|
90179-10594-00 |
— | ||
|
17
|
17
3YL-21751-00-00 Tank, Oil |
3YL-21751-00-00 |
from US $31.59 |
||
|
18
|
18
904-64141-17-00
Clamp
|
904-64141-17-00 |
— | ||
| replacement | |||||
|
18
|
18
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
19
|
19
90464-12089-00 Clamp |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
19
|
19
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
20
|
20
90464-25160-00 Clamp |
90464-25160-00 |
from US $5.24 |
||
|
21
|
21
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
21
|
21
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
22
|
22
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
23
|
23
3YL-22151-00-00
Seal, Guard
|
3YL-22151-00-00 |
— | ||
| replacements | |||||
|
23
|
23
4TW-22151-00-00
Seal, Guard
|
4TW-22151-00-00 |
— | ||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
90338-24177-00 Plug |
90338-24177-00 |
from US $3.54 |
||
| replacement | |||||
|
24
|
24
90338-24260-00 Plug |
90338-24260-00 |
from US $3.54 |
||
|
25
|
25
4DP-2117A-10-00 Stay |
4DP-2117A-10-00 |
US $141.88 |
||
|
26
|
26
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
26
|
26
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
27
|
27
4DP-21642-00-00
Guard, Flap
|
4DP-21642-00-00 |
— | ||
|
28
|
28
90269-05049-00 Rivet |
90269-05049-00 |
from US $2.08 |
||
|
29
|
29
4DP-21495-00-00
Bolt, Engine Adjusting
|
4DP-21495-00-00 |
— | ||
|
30
|
30
90387-105U6-00
Collar
|
90387-105U6-00 |
— | ||
|
31
|
31
4DP-2160F-10-00
Lid
AP |
4DP-2160F-10-00 |
— | ||
