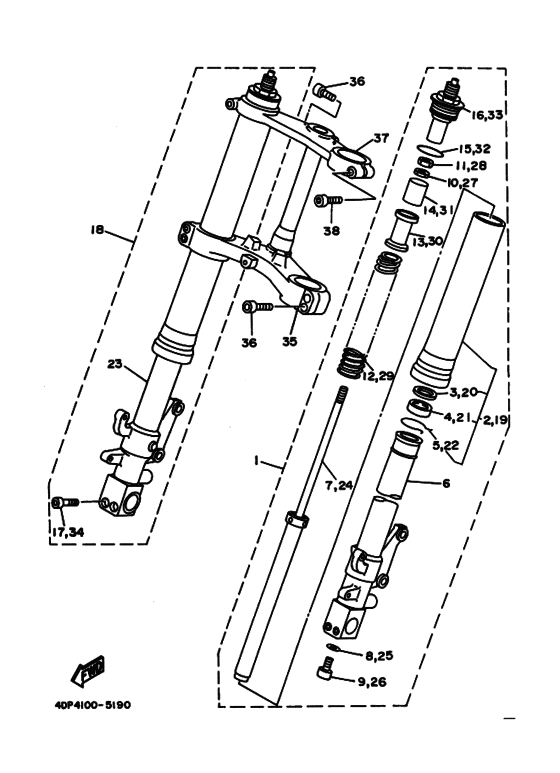

Front fork Diagram Yamaha TZ250
- Year
- 1995
- Colour
- White (WW; 0036)
- Model code
- 4DP4
- Sales region
- Europe (999)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4DP-23102-01-00
Front Fork Assy (L.h)
|
4DP-23102-01-00 |
— | ||
|
2
|
2
4DP-23136-00-00
Tube, Outer 2
|
4DP-23136-00-00 |
— | ||
|
3
|
3
36Y-23140-10-00
Fork Unit Assy 2
|
36Y-23140-10-00 |
— | ||
|
4
|
4
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $30.96 |
||
|
5
|
5
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
6
|
6
4DP-23110-00-00
Inner Tube Comp.1
|
4DP-23110-00-00 |
— | ||
|
7
|
7
4DP-23170-00-00
Cylinder Comp., Front Fork
|
4DP-23170-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
9
|
9
3LC-23181-00-00 Bolt, Hexagon Socket Head |
3LC-23181-00-00 |
from US $11.76 |
||
|
10
|
10
4DP-23357-00-00 Nut |
4DP-23357-00-00 |
US $17.57 |
||
|
11
|
11
3LC-23357-00-00 Nut |
3LC-23357-00-00 |
from US $4.39 |
||
|
12
|
12
3YL-23141-00-00 Spring, Front Fork |
3YL-23141-00-00 |
from US $34.60 |
||
|
13
|
13
4DP-23142-00-00 Seat, Spring Upper |
4DP-23142-00-00 |
US $137.72 |
||
|
14
|
14
4DP-23118-00-00
Spacer
|
4DP-23118-00-00 |
— | ||
|
15
|
15
3SP-23147-M0-00 O-Ring |
3SP-23147-M0-00 |
from US $3.97 |
||
|
16
|
16
4DP-23111-00-00
Bolt, Cap
|
4DP-23111-00-00 |
— | ||
|
17
|
17
913-11060-40-00
Bolt, Hexagon Socket Head
|
913-11060-40-00 |
— | ||
| replacement | |||||
|
17
|
17
91314-06040-00 Bolt, Hexagon Socket Head |
91314-06040-00 |
from US $1.52 |
||
|
18
|
18
4DP-23103-01-00
Front Fork Assy (R.h)
|
4DP-23103-01-00 |
— | ||
|
19
|
19
4DP-23136-00-00
Tube, Outer 2
|
4DP-23136-00-00 |
— | ||
|
20
|
20
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
21
|
21
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $30.96 |
||
|
22
|
22
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
23
|
23
4DP-23120-00-00
Inner Tube Comp.2
|
4DP-23120-00-00 |
— | ||
|
24
|
24
4DP-23170-00-00
Cylinder Comp., Front Fork
|
4DP-23170-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
26
|
26
3LC-23181-00-00 Bolt, Hexagon Socket Head |
3LC-23181-00-00 |
from US $11.76 |
||
|
27
|
27
4DP-23357-00-00 Nut |
4DP-23357-00-00 |
US $17.57 |
||
|
28
|
28
3LC-23357-00-00 Nut |
3LC-23357-00-00 |
from US $4.39 |
||
|
29
|
29
3YL-23141-00-00 Spring, Front Fork |
3YL-23141-00-00 |
from US $34.60 |
||
|
30
|
30
4DP-23142-00-00 Seat, Spring Upper |
4DP-23142-00-00 |
US $137.72 |
||
|
31
|
31
4DP-23118-00-00
Spacer
|
4DP-23118-00-00 |
— | ||
|
32
|
32
3SP-23147-M0-00 O-Ring |
3SP-23147-M0-00 |
from US $3.97 |
||
|
33
|
33
4DP-23111-00-00
Bolt, Cap
|
4DP-23111-00-00 |
— | ||
|
34
|
34
913-11060-40-00
Bolt, Hexagon Socket Head
|
913-11060-40-00 |
— | ||
| replacement | |||||
|
34
|
34
91314-06040-00 Bolt, Hexagon Socket Head |
91314-06040-00 |
from US $1.52 |
||
|
35
|
35
3YL-23340-00-00
Under Bracket Comp
|
3YL-23340-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
3TC-23471-00-00
Bolt
|
3TC-23471-00-00 |
— | ||
|
37
|
37
4DP-23435-00-00
Crown, Handle
|
4DP-23435-00-00 |
— | ||
|
38
|
38
90110-08071-00 Bolt, Hexagon Socket Head |
90110-08071-00 |
from US $4.16 |
||
