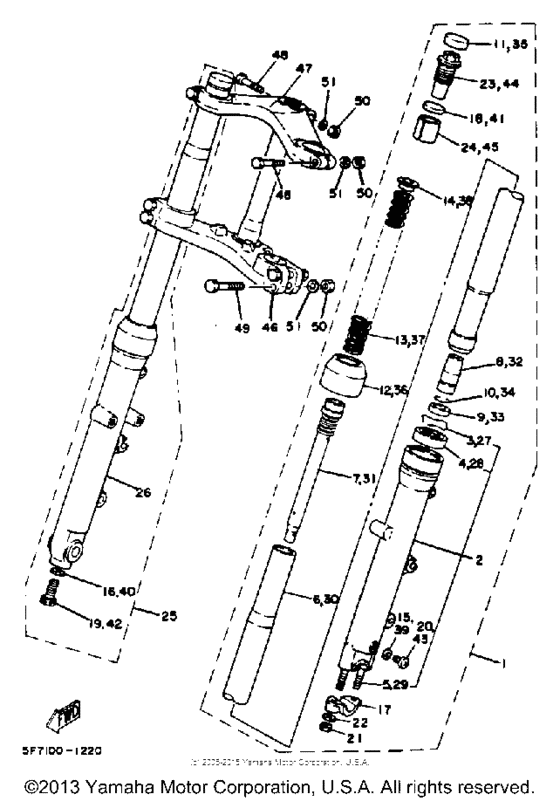

Front fork Diagram Yamaha TZ250
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5F7-23102-01-00
Front Fork Assembly L
|
5F7-23102-01-00 |
— | ||
|
2
|
2
5F7-23126-00-00
Tube, Outer 1
|
5F7-23126-00-00 |
— | ||
|
3
|
3
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
4
|
4
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
4
|
4
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
5
|
5
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
6
|
6
5F7-22124-00-00
Bush 2
|
5F7-22124-00-00 |
— | ||
|
7
|
7
5F7-23170-00-00
Cylinder, Frtfrk
|
5F7-23170-00-00 |
— | ||
|
8
|
8
3G2-23173-00-00
Spindle, Taper
|
3G2-23173-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
3G2-23184-00-00
Cap, Air Valve
|
3G2-23184-00-00 |
— | ||
|
10
|
10
3G2-23183-00-00 Circlip |
3G2-23183-00-00 |
US $3.12 |
||
|
11
|
11
2F0-23168-00-00
Cap, Front Fork
|
2F0-23168-00-00 |
— | ||
|
12
|
12
583-23144-00-00
Seal, Dust
|
583-23144-00-00 |
— | ||
|
13
|
13
5F7-23141-00-00
Spring, Front Fork
|
5F7-23141-00-00 |
— | ||
|
14
|
14
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
15
|
15
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
16
|
16
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
17
|
17
341-23167-50-00 Holder, Axle |
341-23167-50-00 |
from US $46.97 |
||
|
18
|
18
2H7-23149-00-00
Washer, Spring Upr
|
2H7-23149-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
19
|
19
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
20
|
20
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
20
|
20
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
20
|
20
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
21
|
21
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
21
|
21
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
22
|
22
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
23
|
23
5F7-23111-00-00
Bolt, Cap
|
5F7-23111-00-00 |
— | ||
|
24
|
24
1U6-23118-M0-00
Spacer
|
1U6-23118-M0-00 |
— | ||
|
25
|
25
5F7-23103-01-00
Front Fork Assembly R
|
5F7-23103-01-00 |
— | ||
|
26
|
26
5F7-23136-00-00
Tube, Outer 2
|
5F7-23136-00-00 |
— | ||
|
27
|
27
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
28
|
28
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
29
|
29
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
30
|
30
5F7-23124-00-00
Tube, Inner 1
|
5F7-23124-00-00 |
— | ||
|
31
|
31
5F7-23170-00-00
Cylinder, Frtfrk
|
5F7-23170-00-00 |
— | ||
|
32
|
32
3G2-23173-00-00
Spindle, Taper
|
3G2-23173-00-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
3G2-23184-00-00
Cap, Air Valve
|
3G2-23184-00-00 |
— | ||
|
34
|
34
3G2-23183-00-00 Circlip |
3G2-23183-00-00 |
US $3.12 |
||
|
35
|
35
2F0-23168-00-00
Cap, Front Fork
|
2F0-23168-00-00 |
— | ||
|
36
|
36
583-23144-00-00
Seal, Dust
|
583-23144-00-00 |
— | ||
|
37
|
37
5F7-23141-01-00
Spring, Front Fork
|
5F7-23141-01-00 |
— | ||
|
38
|
38
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
39
|
39
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
40
|
40
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
41
|
41
2H7-23149-00-00
Washer, Spring Upr
|
2H7-23149-00-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
42
|
42
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
43
|
43
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
43
|
43
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
43
|
43
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
44
|
44
5F7-23111-00-00
Bolt, Cap
|
5F7-23111-00-00 |
— | ||
|
45
|
45
1U6-23118-M0-00
Spacer
|
1U6-23118-M0-00 |
— | ||
|
46
|
46
5F7-23340-00-00
Under Bracket
|
5F7-23340-00-00 |
— | ||
|
47
|
47
1H3-23435-00-00
Crown, Handle
|
1H3-23435-00-00 |
— | ||
| replacement | |||||
|
47
|
47
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
48
|
48
90101-08263-00
Bolt
|
90101-08263-00 |
— | ||
| replacement | |||||
|
48
|
48
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
49
|
49
5F7-23346-00-00
Bolt 1
|
5F7-23346-00-00 |
— | ||
|
50
|
50
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
50
|
50
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
51
|
51
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
51
|
51
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
