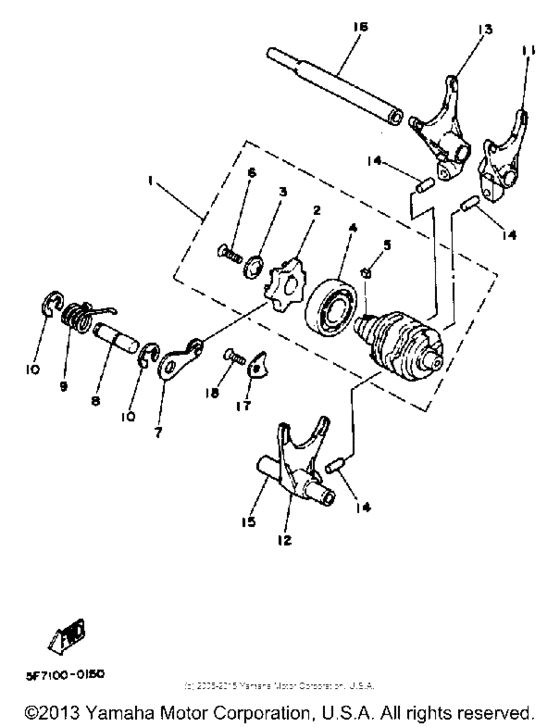

Shift cam - fork Diagram Yamaha TZ250
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59W-18540-00-00
Shift Cam Assembly
|
59W-18540-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
3R4-18185-00-00 Segment |
3R4-18185-00-00 |
from US $23.80 |
||
|
3
|
3
3R4-18561-00-00 Plate, Side 1 |
3R4-18561-00-00 |
from US $6.09 |
||
|
4
|
4
93306-00435-00 Bearing |
93306-00435-00 |
from US $13.18 |
||
| replacement | |||||
|
4
|
4
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $13.60 |
||
|
5
|
5
90282-04036-00 Key, Straight |
90282-04036-00 |
from US $4.11 |
||
|
6
|
6
98701-05016-00 Screw, Flat Head |
98701-05016-00 |
from US $1.42 |
||
| replacements | |||||
|
6
|
6
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
6
|
6
90151-05055-00 Screw, Countersunk(3Ac) |
90151-05055-00 |
from US $2.27 |
||
|
7
|
7
5F7-18140-00-00
Stopper Lever Assembly
|
5F7-18140-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
5F7-18197-00-00
Shaft
|
5F7-18197-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90508-26489-00
Spring, Torsion
|
90508-26489-00 |
— | ||
|
10
|
10
93430-08007-00 Circlip, E-Type |
93430-08007-00 |
from US $1.84 |
||
|
11
|
11
3AK-18511-00-00
Fork, Shift 1
|
3AK-18511-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
5F7-18512-00-00
Fork, Shift 2
|
5F7-18512-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
93606-14154-00 Pin, Dowel |
93606-14154-00 |
from US $3.26 |
||
|
14
|
14
93606-14154-00 Pin, Dowel |
93606-14154-00 |
from US $3.26 |
||
|
15
|
15
5F7-18531-00-00
Bar, Shif Frk Gde 1
|
5F7-18531-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
5F7-18535-00-00
Bar, Shif Frk Gde 2
|
5F7-18535-00-00 |
— | ||
|
17
|
17
5F7-18141-00-00
Plate, Stopper
|
5F7-18141-00-00 |
— | ||
|
18
|
18
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
