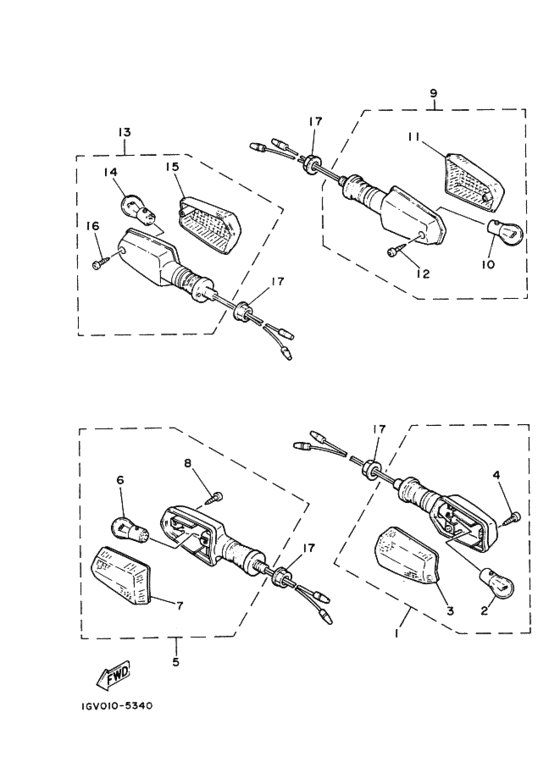

Flasher light Diagram Yamaha TZR125
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 2RM0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TZR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2AK-83340-00-00 Rear Flasher Light Assy 2リヤフラツシヤライトアセンブリ ２; |
2AK-83340-00-00 |
US $72.95 |
||
|
2
|
2
51Y-83311-20-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ |
51Y-83311-20-00 |
US $7.51 |
||
| replacement | |||||
|
2
|
2
306-83311-40-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ |
306-83311-40-00 |
from US $7.51 |
||
|
3
|
3
51L-83332-01-00 Lens, Flasher．レンズ，フラツシヤ; |
51L-83332-01-00 |
from US $10.51 |
||
|
4
|
4
977-06406-20-00 Screw, Tapping．スクリユ，タツピング; |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
97707-40520-00 Screw, Tapping．スクリユ，タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
5
|
5
2AK-83330-00-00 Rear Flasher Light Assy 1 |
2AK-83330-00-00 |
US $72.95 |
||
|
6
|
6
51Y-83311-20-00 Bulb, Flasher (12V-21W)．バルブフラツシヤ ; １２Ｖ−２１Ｗ |
51Y-83311-20-00 |
US $7.51 |
||
| replacement | |||||
|
6
|
6
306-83311-40-00 Bulb, Flasher (12V-21W)．バルブフラツシヤ ; １２Ｖ−２１Ｗ |
306-83311-40-00 |
from US $7.51 |
||
|
7
|
7
51L-83342-01-00 Lens, Flasher 2．レンズ，フラツシヤ; |
51L-83342-01-00 |
from US $11.36 |
||
|
8
|
8
977-06406-20-00 Screw, Tapping．スクリユ，タツピング; |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
97707-40520-00 Screw, Tapping．スクリユ，タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
9
|
9
2AK-83330-00-00 Rear Flasher Light Assy 1 |
2AK-83330-00-00 |
US $72.95 |
||
|
10
|
10
51Y-83311-20-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ |
51Y-83311-20-00 |
US $7.51 |
||
| replacement | |||||
|
10
|
10
306-83311-40-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ |
306-83311-40-00 |
from US $7.51 |
||
|
11
|
11
51L-83342-01-00 Lens, Flasher 2．レンズ，フラツシヤ ２; |
51L-83342-01-00 |
from US $11.36 |
||
|
12
|
12
977-06406-20-00 Screw, Tapping．スクリユ，タツピング; |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
97707-40520-00 Screw, Tapping．スクリユ，タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
13
|
13
2AK-83340-00-00 Rear Flasher Light Assy 2リヤフラツシヤライトアセンブリ ２; |
2AK-83340-00-00 |
US $72.95 |
||
|
14
|
14
51Y-83311-20-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ |
51Y-83311-20-00 |
US $7.51 |
||
| replacement | |||||
|
14
|
14
306-83311-40-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ |
306-83311-40-00 |
from US $7.51 |
||
|
15
|
15
51L-83332-01-00 Lens, Flasher．レンズ，フラツシヤ; |
51L-83332-01-00 |
from US $10.51 |
||
|
16
|
16
977-06406-20-00 Screw, Tapping．スクリユ，タツピング; |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
97707-40520-00 Screw, Tapping．スクリユ，タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
17
|
17
95316-12700-00 Nutナツト; |
95316-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
95317-12700-00 Nut, Hexagon Smallナツト; |
95317-12700-00 |
from US $2.36 |
||
