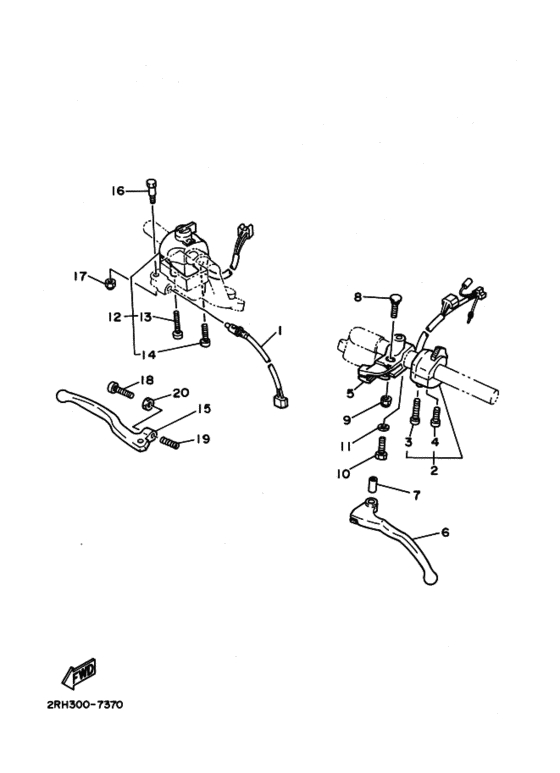

Handle switch & lever Diagram Yamaha TZR125
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 2RM0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TZR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34X-83980-01-00 Stop Switch Asy |
34X-83980-01-00 |
from US $32.94 |
||
| replacement | |||||
|
1
|
1
3YF-83980-00-00 Front Stop Switch Assy |
3YF-83980-00-00 |
from US $41.45 |
||
|
2
|
2
21T-83973-00-00
Switch,handle Wr250Zj Wr200Adr
|
21T-83973-00-00 |
— | ||
| replacement | |||||
|
2
|
2
21T-83973-01-00
Switch, Handle 3
|
21T-83973-01-00 |
— | ||
|
3
|
3
90157-05027-00 Screw, Pan Head．スクリユ，パンヘツド; |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
3
|
3
90157-05057-00 Screw, Pan Head(41N)．スクリユ，パンヘツド; |
90157-05057-00 |
from US $1.98 |
||
|
4
|
4
985-01050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01050-30-00 |
— | ||
| replacements | |||||
|
4
|
4
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
4
|
4
98580-05530-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-05530-00 |
from US $2.27 |
||
|
5
|
5
57V-82911-00-00 Holder, Lever 1 (31A-82911-00)ホルダ，レバー １; |
57V-82911-00-00 |
from US $29.14 |
||
|
6
|
6
31A-83912-00-00 Leverレバー １; |
31A-83912-00-00 |
from US $27.77 |
||
| replacement | |||||
|
6
|
6
31A-83912-01-00 Lever 1レバー １; |
31A-83912-01-00 |
from US $27.77 |
||
|
7
|
7
31A-83913-00-00 Collar, Lever 1カラー，レバー １; |
31A-83913-00-00 |
from US $10.48 |
||
|
8
|
8
31A-83945-00-00 Bolt, Leverボルト，レバー; |
31A-83945-00-00 |
from US $7.45 |
||
|
9
|
9
95606-06100-00 Nut, Uナツト，Ｕ; |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
9
|
9
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
10
|
10
97306-06022-00 Bolt |
97306-06022-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
97007-06022-00 Bolt |
97007-06022-00 |
from US $1.56 |
||
|
11
|
11
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
12
|
12
2RH-83975-20-00
Switch, Handle 2
|
2RH-83975-20-00 |
— | ||
|
13
|
13
98506-05040-00 Screw, Pan Head．スクリユ，パンヘツド; |
98506-05040-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
98507-05040-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05040-00 |
from US $1.42 |
||
|
14
|
14
985-06050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-06050-30-00 |
— | ||
| replacement | |||||
|
14
|
14
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
15
|
15
31A-83922-00-00 Lever Rレバー ２; |
31A-83922-00-00 |
from US $25.64 |
||
|
16
|
16
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
17
|
17
95606-06100-00 Nut, Uナツト，Ｕ; |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
17
|
17
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
18
|
18
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
90149-06131-00 Screw |
90149-06131-00 |
from US $2.08 |
||
|
19
|
19
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
20
|
20
90170-06010-00 Nut |
90170-06010-00 |
from US $2.35 |
||
