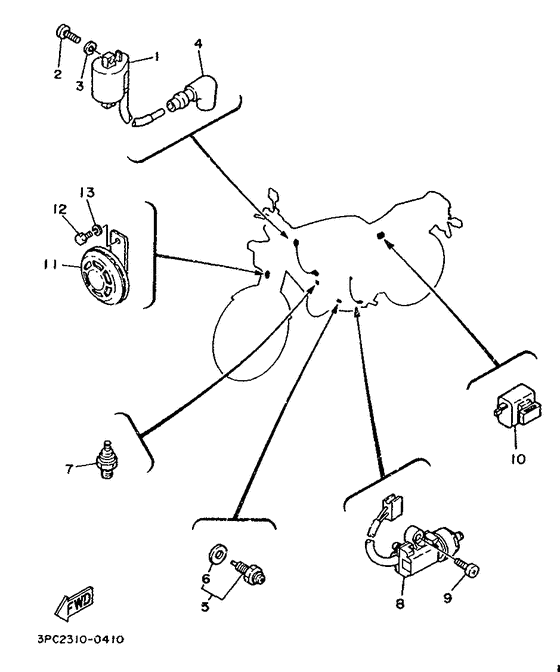

Electrical 2 Diagram Yamaha TZR125
- Year
- 1991
- Colour
- Silky White (SW; 00GE)
- Model code
- 3PC3
- Sales region
- England (999)
- Engine Capacity
- 125
- Model
- TZR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2JN-82310-M0-00
Ignition Coil Assemb
|
2JN-82310-M0-00 |
— | ||
| replacements | |||||
|
01
|
01
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
01
|
01
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
01
|
01
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
01
|
01
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
01
|
01
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
01
|
01
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
02
|
02
97001-06020-00 Bolt(78G) |
97001-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
02
|
02
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
03
|
03
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
04
|
04
2TV-82370-00-00
Plug Cap Assembly
With noice suppressor |
2TV-82370-00-00 |
— | ||
| replacement | |||||
|
04
|
04
8DG-82370-00-00 Plug Cap AssyWith noice suppressor |
8DG-82370-00-00 |
from US $28.34 |
||
|
05
|
05
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
05
|
05
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
05
|
05
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
06
|
06
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
06
|
06
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
07
|
07
11H-83591-00-00 Thermo Unit |
11H-83591-00-00 |
from US $90.36 |
||
|
08
|
08
3MB-82556-00-00
Damper, Stopper
|
3MB-82556-00-00 |
— | ||
|
09
|
09
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
09
|
09
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
10
|
10
34L-83350-20-00 Flasher Relay Assy |
34L-83350-20-00 |
from US $30.31 |
||
|
11
|
11
33M-83371-30-00 Horn |
33M-83371-30-00 |
from US $59.65 |
||
| replacement | |||||
|
11
|
11
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
12
|
12
97003-06012-00 Bolt,kt100S/j Recoil Starter |
97003-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
13
|
13
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
