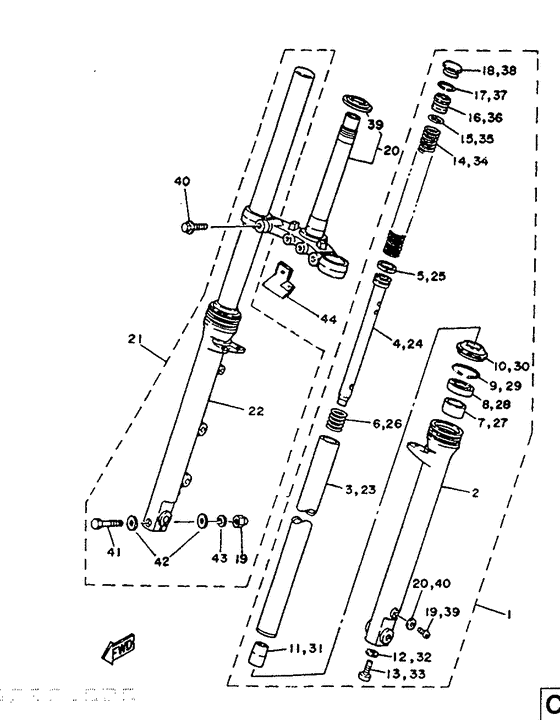

Front fork Diagram Yamaha TZR125
- Year
- 1991
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3PE2
- Sales region
- Spain (999)
- Engine Capacity
- 125
- Model
- TZR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3YG-F3102-00-00
Front Fork Assy (L.h)
|
3YG-F3102-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
3YG-F3126-00-00
Tube, Outer (L.h)
|
3YG-F3126-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
2RN-F3110-00-00
Inner Tube Comp.1
|
2RN-F3110-00-00 |
— | ||
| replacement | |||||
|
03
|
03
1GU-23110-00-00
Inner Tube Comp.1
|
1GU-23110-00-00 |
— | ||
|
04
|
04
1GV-23171-00-00
Piston, Front Fork
|
1GV-23171-00-00 |
— | ||
| replacement | |||||
|
04
|
04
1GV-23171-01-00
Piston, Front Fork
|
1GV-23171-01-00 |
— | ||
|
05
|
05
2RN-F3157-00-00
Ring, Piston
|
2RN-F3157-00-00 |
— | ||
|
06
|
06
2RN-F3151-00-00
Spring, Rebound
|
2RN-F3151-00-00 |
— | ||
|
07
|
07
1GU-23125-00-00 Metal, Slide 1 |
1GU-23125-00-00 |
from US $10.19 |
||
|
08
|
08
93110-33023-00 Ok Seal, Swo-Type |
93110-33023-00 |
from US $12.04 |
||
|
09
|
09
2RN-F3156-00-00
Ring, Snap
|
2RN-F3156-00-00 |
— | ||
|
10
|
10
1GU-23144-00-00 Seal, Dust |
1GU-23144-00-00 |
US $13.88 |
||
|
11
|
11
2RN-F3173-00-00
Spindle, Taper
|
2RN-F3173-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
90201-081E6-00 Gasket |
90201-081E6-00 |
US $1.70 |
||
| replacements | |||||
|
12
|
12
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
12
|
12
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
13
|
13
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
14
|
14
2RN-F3131-00-00
Cover, Upper 2
|
2RN-F3131-00-00 |
— | ||
|
15
|
15
93210-23858-00 O-Ring |
93210-23858-00 |
US $4.25 |
||
| replacement | |||||
|
15
|
15
93210-23587-00 O-Ring |
93210-23587-00 |
US $4.25 |
||
|
16
|
16
2RN-F3111-00-00
Bolt, Cap
|
2RN-F3111-00-00 |
— | ||
|
17
|
17
93450-31114-00 Circlip, Inner |
93450-31114-00 |
US $2.27 |
||
| replacement | |||||
|
17
|
17
93450-32116-00 Circlip |
93450-32116-00 |
from US $2.18 |
||
|
18
|
18
2RN-F3154-00-00
Cap
|
2RN-F3154-00-00 |
— | ||
|
19
|
19
95311-08600-00 Nut |
95311-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
19
|
19
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
19
|
19
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
20
|
20
2RN-F3340-00-00
Under Bracket Comp
|
2RN-F3340-00-00 |
— | ||
| replacement | |||||
|
20
|
20
1GU-23340-00-33
Under Bracket Comp
|
1GU-23340-00-33 |
— | ||
|
21
|
21
3PE-F3103-AO-00
Front Fork Assy (R.h)
|
3PE-F3103-AO-00 |
— | ||
|
22
|
22
3PE-F3136-AO-00
Tube, Outer 2
|
3PE-F3136-AO-00 |
— | ||
|
23
|
23
2RN-E3110-00-00
Oil Pump Assy
|
2RN-E3110-00-00 |
— | ||
|
24
|
24
1GV-23171-00-00
Piston, Front Fork
|
1GV-23171-00-00 |
— | ||
| replacement | |||||
|
24
|
24
1GV-23171-01-00
Piston, Front Fork
|
1GV-23171-01-00 |
— | ||
|
25
|
25
2RN-F3157-00-00
Ring, Piston
|
2RN-F3157-00-00 |
— | ||
|
26
|
26
2RN-F3151-00-00
Spring, Rebound
|
2RN-F3151-00-00 |
— | ||
|
27
|
27
1GU-23125-00-00 Metal, Slide 1 |
1GU-23125-00-00 |
from US $10.19 |
||
|
28
|
28
93110-33023-00 Ok Seal, Swo-Type |
93110-33023-00 |
from US $12.04 |
||
|
29
|
29
2RN-F3156-00-00
Ring, Snap
|
2RN-F3156-00-00 |
— | ||
|
30
|
30
1GU-23144-00-00 Seal, Dust |
1GU-23144-00-00 |
US $13.88 |
||
|
31
|
31
2RN-F3173-00-00
Spindle, Taper
|
2RN-F3173-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
90201-081E6-00 Gasket |
90201-081E6-00 |
US $1.70 |
||
| replacements | |||||
|
32
|
32
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
32
|
32
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
33
|
33
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
33
|
33
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
34
|
34
2RN-F3141-00-00
Spring, Front Fork
|
2RN-F3141-00-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
93210-23858-00 O-Ring |
93210-23858-00 |
US $4.25 |
||
| replacement | |||||
|
35
|
35
93210-23587-00 O-Ring |
93210-23587-00 |
US $4.25 |
||
|
36
|
36
2RN-F3111-00-00
Bolt, Cap
|
2RN-F3111-00-00 |
— | ||
|
37
|
37
93450-31114-00 Circlip, Inner |
93450-31114-00 |
US $2.27 |
||
| replacement | |||||
|
37
|
37
93450-32116-00 Circlip |
93450-32116-00 |
from US $2.18 |
||
|
38
|
38
2RN-F3154-00-00
Cap
|
2RN-F3154-00-00 |
— | ||
|
39
|
39
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
39
|
39
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
40
|
40
95821-10030-00 Bolt, Flange |
95821-10030-00 |
from US $1.07 |
||
| replacement | |||||
|
40
|
40
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.18 |
||
|
41
|
41
97021-08060-00 Bolt |
97021-08060-00 |
US $9.49 |
||
| replacement | |||||
|
41
|
41
970-13080-60-00 Bolt |
970-13080-60-00 |
from US $5.72 |
||
|
42
|
42
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
42
|
42
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
43
|
43
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
43
|
43
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
44
|
44
3PE-F3164-AO-00
Stay, Light Guard
|
3PE-F3164-AO-00 |
— | ||
