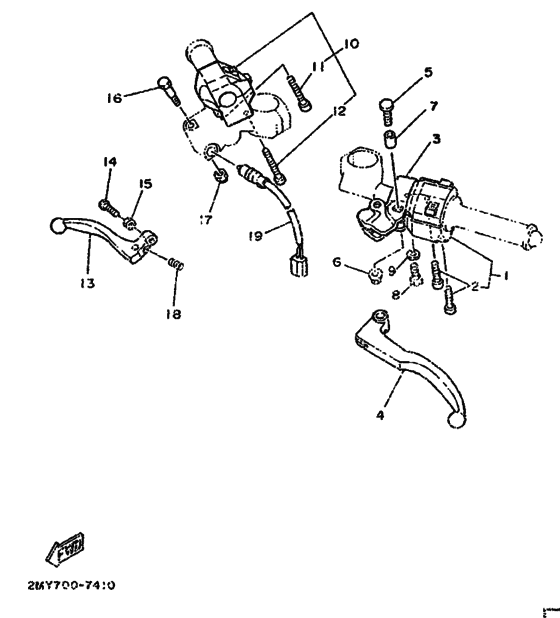

Handle switch & lever Diagram Yamaha TZR250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 2ME0
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52X-83973-00-00 Switch, Handle 3 |
52X-83973-00-00 |
US $217.85 |
||
|
2
|
2
98506-05035-00 Screw, Pan Head |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
3
|
3
29L-82911-01-00 Holder, Lever 1 |
29L-82911-01-00 |
from US $45.39 |
||
|
4
|
4
29L-83912-01-00 Lever L |
29L-83912-01-00 |
from US $28.76 |
||
|
5
|
5
31A-83945-00-00 Bolt, Lever |
31A-83945-00-00 |
from US $7.45 |
||
|
6
|
6
95706-06100-00 Nut, With Washer |
95706-06100-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
7
|
7
31A-83913-00-00 Collar, Lever 1 |
31A-83913-00-00 |
from US $10.48 |
||
|
8
|
8
97306-06025-00 Bolt |
97306-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
9
|
9
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
10
|
10
2ME-83976-00-00
Switch, Handle 1
|
2ME-83976-00-00 |
— | ||
|
11
|
11
98506-05040-00 Screw, Pan Head |
98506-05040-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
12
|
12
98506-05045-00 Screw, Pan Head |
98506-05045-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.52 |
||
|
13
|
13
31A-83922-00-00 Lever R |
31A-83922-00-00 |
from US $25.64 |
||
|
14
|
14
90149-06131-00 Screw |
90149-06131-00 |
from US $2.08 |
||
|
15
|
15
90170-06010-00 Nut |
90170-06010-00 |
from US $2.35 |
||
|
16
|
16
90109-06465-00 Bolt |
90109-06465-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
17
|
17
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
18
|
18
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
19
|
19
34X-83980-01-00 Stop Switch Asy |
34X-83980-01-00 |
from US $32.94 |
||
| replacement | |||||
|
19
|
19
3YF-83980-00-00 Front Stop Switch Assy |
3YF-83980-00-00 |
from US $41.45 |
||
