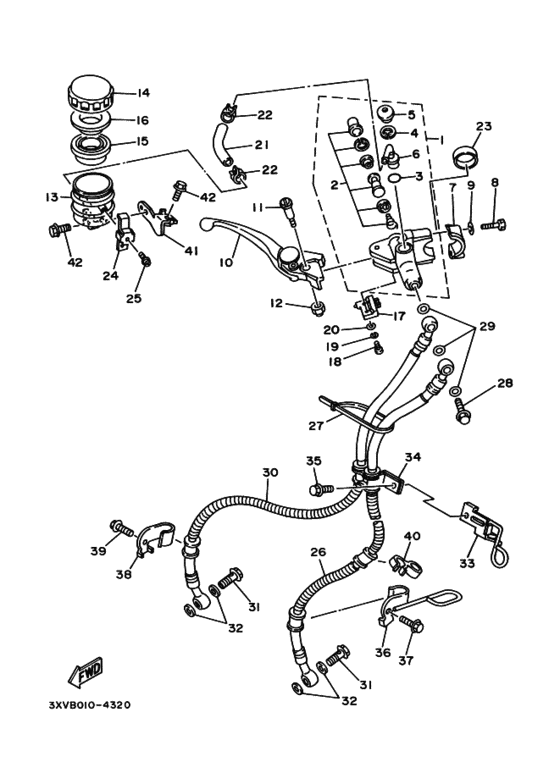

Front master cylinder Diagram Yamaha TZR250
- Year
- 1994
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 3XVB
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3XV-W2587-00-00 Master Cylinder Sub Assyマスタシリンダサブアツシイ; |
3XV-W2587-00-00 |
US $164.41 |
||
| replacement | |||||
|
1
|
1
4SV-W2587-10-00 Master Cylinder Sub Assyマスタシリンダサブアツシイ; |
4SV-W2587-10-00 |
from US $164.41 |
||
|
2
|
2
3XV-W0041-50-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
3XV-W0041-50-00 |
US $56.92 |
||
| replacement | |||||
|
2
|
2
4SV-W0041-00-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
4SV-W0041-00-00 |
from US $56.92 |
||
|
3
|
3
93210-15620-00 O-Ring．Ｏ−リング; |
93210-15620-00 |
from US $1.39 |
||
| replacement | |||||
|
3
|
3
93210-15566-00 O-Ring (22U)．Ｏ−リング; |
93210-15566-00 |
from US $1.52 |
||
|
4
|
4
2VN-25866-00-00 Circlip．サークリツプ; |
2VN-25866-00-00 |
from US $3.12 |
||
|
5
|
5
3FV-2589A-00-00 Cover, Dust．カバー，ダスト; |
3FV-2589A-00-00 |
from US $8.60 |
||
|
6
|
6
2VN-2582A-50-00 Joint．ジヨイント; |
2VN-2582A-50-00 |
from US $10.54 |
||
|
7
|
7
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
8
|
8
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
9
|
9
929-06066-00-00
Washer
ワツシヤ，プレート; |
929-06066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
10
|
10
3XV-83922-10-00 Lever 2レバー ２; |
3XV-83922-10-00 |
US $47.33 |
||
| replacement | |||||
|
10
|
10
3XV-83922-11-00 Lever 2レバー ２; |
3XV-83922-11-00 |
US $47.33 |
||
|
11
|
11
3FV-2589F-00-00 Bolt, Leverボルト，レバー; |
3FV-2589F-00-00 |
from US $7.21 |
||
|
12
|
12
956-16061-00-00
Nut (17W)
ナツト，Ｕ; |
956-16061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
13
|
13
3FV-25894-00-00 Tank, Reservoirタンク，リザーバ; |
3FV-25894-00-00 |
from US $32.30 |
||
|
14
|
14
3FV-25852-00-00 Cap, Reservoirキヤツプ，リザーバ; |
3FV-25852-00-00 |
from US $21.96 |
||
| replacement | |||||
|
14
|
14
3GM-25852-50-00 Cap, Reservoirキヤツプ，リザーバ; |
3GM-25852-50-00 |
from US $24.28 |
||
|
15
|
15
3FV-25854-00-00 Gasket, Diaphragmダイヤフラム，リザーバ; |
3FV-25854-00-00 |
from US $11.05 |
||
|
16
|
16
2J2-25855-50-00 Bush,diaphragm |
2J2-25855-50-00 |
from US $7.79 |
||
|
17
|
17
3FV-83980-00-00 Front Stop Switch Assy |
3FV-83980-00-00 |
from US $22.39 |
||
| replacement | |||||
|
17
|
17
4HM-83980-00-00 Front Stop Switch Assy |
4HM-83980-00-00 |
from US $27.19 |
||
|
18
|
18
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
19
|
19
92990-04100-00 Washer, Springワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
20
|
20
929-01046-00-00
Washer
ワツシヤ，プレート; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-90046-00-00 Washer, Plateワツシヤ，プレート; |
929-90046-00-00 |
from US $1.07 |
||
|
21
|
21
3TJ-2582F-01-00
Hose
ホース; |
3TJ-2582F-01-00 |
— | ||
| replacement | |||||
|
21
|
21
3GM-2585F-00-00 O-Ringホース; |
3GM-2585F-00-00 |
US $5.44 |
||
|
22
|
22
3PA-24356-00-00 Clip, Pipe 1 |
3PA-24356-00-00 |
from US $4.03 |
||
|
23
|
23
80Y-23843-00-00 Washer, Plainワツシヤ，プレーン; |
80Y-23843-00-00 |
from US $6.88 |
||
|
24
|
24
3FV-2589G-00-00 Holderホルダー; |
3FV-2589G-00-00 |
from US $17.57 |
||
|
25
|
25
3GM-2589H-00-00 Screwスクリユ，ウイズワツシヤ; |
3GM-2589H-00-00 |
from US $2.13 |
||
|
26
|
26
3XV-25872-10-00
Hose, Brake 1
ホース，ブレーキ １; |
3XV-25872-10-00 |
— | ||
|
27
|
27
904-64141-17-00
Clamp
|
904-64141-17-00 |
— | ||
| replacement | |||||
|
27
|
27
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
28
|
28
90401-10160-00 Bolt, Union(3Gm)ボルト，ユニオン; |
90401-10160-00 |
from US $9.49 |
||
| replacement | |||||
|
28
|
28
90401-10038-00 Bolt, Unionボルト，ユニオン; |
90401-10038-00 |
from US $9.49 |
||
|
29
|
29
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
29
|
29
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
|
30
|
30
3XV-25873-10-00
Hose, Brake 2
ホース，ブレーキ ２; |
3XV-25873-10-00 |
— | ||
|
31
|
31
90401-10159-00 Bolt, Union(3Gm)ボルト，ユニオン; |
90401-10159-00 |
from US $3.26 |
||
|
32
|
32
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
32
|
32
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
|
33
|
33
3XV-2612E-00-00
Bracket
|
3XV-2612E-00-00 |
— | ||
|
34
|
34
3XV-26393-00-00
Holder
|
3XV-26393-00-00 |
— | ||
|
35
|
35
958-16060-12-00
Bolt, Flange(2Xj)
|
958-16060-12-00 |
— | ||
| replacement | |||||
|
35
|
35
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
36
|
36
3XV-25876-10-00
Holder, Brake Hose 2
ホルダ，ブレーキホース ２; |
3XV-25876-10-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
ホルダ，ブレーキホース ２; |
999-99999-99-00 |
— | ||
|
37
|
37
958-16060-12-00
Bolt, Flange(2Xj)
|
958-16060-12-00 |
— | ||
| replacement | |||||
|
37
|
37
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
38
|
38
3XV-25876-20-00
Holder, Brake Hose 2
ホルダ，ブレーキホース ２; |
3XV-25876-20-00 |
— | ||
|
39
|
39
958-16060-12-00
Bolt, Flange(2Xj)
|
958-16060-12-00 |
— | ||
| replacement | |||||
|
39
|
39
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
40
|
40
3MA-26279-00-00 Guide, Cableガイド，ケーブル; |
3MA-26279-00-00 |
US $5.67 |
||
|
41
|
41
3XV-26292-10-00
Stay
|
3XV-26292-10-00 |
— | ||
|
42
|
42
958-16060-12-00
Bolt, Flange(2Xj)
|
958-16060-12-00 |
— | ||
| replacement | |||||
|
42
|
42
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
