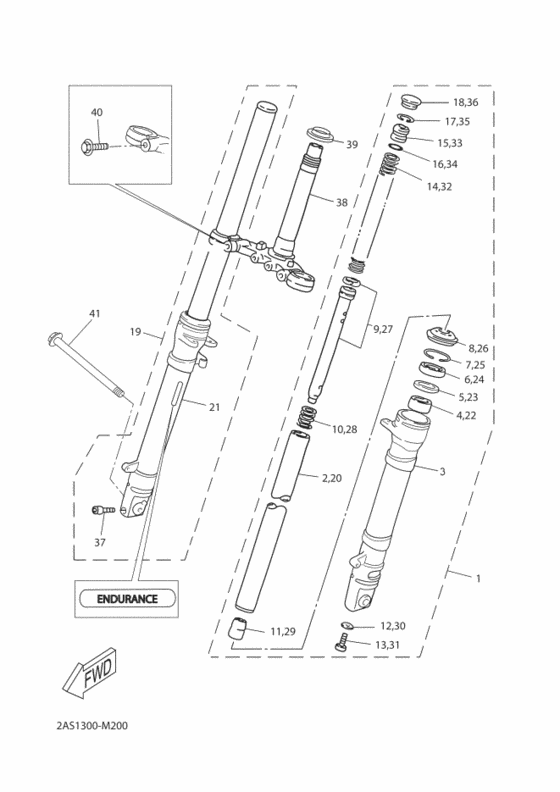

Front fork 1 Diagram Yamaha TZR50
- Year
- 2012
- Colour
- Mat White Metallic 2 (MW M2; 1247)
- Model code
- 2AS1
- Sales region
- Europe (040)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- TZR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5WX-F3102-20-00
Front Fork Assy (L.h)
AP (ENDURANCE) |
5WX-F3102-20-00 |
— | ||
|
2
|
2
5WX-F3110-20-00
Inner Tube Comp.1
|
5WX-F3110-20-00 |
— | ||
|
3
|
3
5WX-F3126-20-00
Tube, Outer (L.h)
|
5WX-F3126-20-00 |
— | ||
|
4
|
4
5WX-F3125-20-00
Metal, Slide 1
|
5WX-F3125-20-00 |
— | ||
|
5
|
5
5WX-F3165-20-00
Washer, Felt
|
5WX-F3165-20-00 |
— | ||
|
6
|
6
5WX-F3145-20-00
Oil Seal
|
5WX-F3145-20-00 |
— | ||
|
7
|
7
5WX-F3156-20-00
Ring, Snap
|
5WX-F3156-20-00 |
— | ||
|
8
|
8
5WX-F3144-20-00
Seal, Dust
|
5WX-F3144-20-00 |
— | ||
|
9
|
9
5WX-F3170-20-00
Cylinder Comp., Front Fork
|
5WX-F3170-20-00 |
— | ||
|
10
|
10
5WX-F3151-20-00
Spring, Rebound
|
5WX-F3151-20-00 |
— | ||
|
11
|
11
5WX-F3173-20-00
Spindle, Taper
|
5WX-F3173-20-00 |
— | ||
|
12
|
12
5B2-F3158-20-00
Gasket
(ENDURANCE) |
5B2-F3158-20-00 |
— | ||
|
13
|
13
5B2-F3181-20-00
Bolt, Hexagon Socket Head
(ENDURANCE) |
5B2-F3181-20-00 |
— | ||
|
14
|
14
5WX-F3141-20-00
Spring, Front Fork
|
5WX-F3141-20-00 |
— | ||
|
15
|
15
5WX-F3111-20-00
Bolt, Cap
|
5WX-F3111-20-00 |
— | ||
|
16
|
16
5WX-F3157-20-00
Ring, Piston
|
5WX-F3157-20-00 |
— | ||
|
17
|
17
5WX-F3183-20-00
Circlip
|
5WX-F3183-20-00 |
— | ||
|
18
|
18
5WX-F3154-00-00
Cap
|
5WX-F3154-00-00 |
— | ||
|
19
|
19
5WX-F3103-20-00
Front Fork Assy (R.h)
AP (ENDURANCE) |
5WX-F3103-20-00 |
— | ||
|
20
|
20
5WX-F3110-20-00
Inner Tube Comp.1
|
5WX-F3110-20-00 |
— | ||
|
21
|
21
5WX-F3136-20-00
Tube, Outer (R.h)
|
5WX-F3136-20-00 |
— | ||
|
22
|
22
5WX-F3125-20-00
Metal, Slide 1
|
5WX-F3125-20-00 |
— | ||
|
23
|
23
5WX-F3165-20-00
Washer, Felt
|
5WX-F3165-20-00 |
— | ||
|
24
|
24
5WX-F3145-20-00
Oil Seal
|
5WX-F3145-20-00 |
— | ||
|
25
|
25
5WX-F3156-20-00
Ring, Snap
|
5WX-F3156-20-00 |
— | ||
|
26
|
26
5WX-F3144-20-00
Seal, Dust
|
5WX-F3144-20-00 |
— | ||
|
27
|
27
5WX-F3170-20-00
Cylinder Comp., Front Fork
|
5WX-F3170-20-00 |
— | ||
|
28
|
28
5WX-F3151-20-00
Spring, Rebound
|
5WX-F3151-20-00 |
— | ||
|
29
|
29
5WX-F3173-20-00
Spindle, Taper
|
5WX-F3173-20-00 |
— | ||
|
30
|
30
5B2-F3158-20-00
Gasket
(ENDURANCE) |
5B2-F3158-20-00 |
— | ||
|
31
|
31
5B2-F3181-20-00
Bolt, Hexagon Socket Head
(ENDURANCE) |
5B2-F3181-20-00 |
— | ||
|
32
|
32
5WX-F3141-20-00
Spring, Front Fork
|
5WX-F3141-20-00 |
— | ||
|
33
|
33
5WX-F3111-20-00
Bolt, Cap
|
5WX-F3111-20-00 |
— | ||
|
34
|
34
5WX-F3157-20-00
Ring, Piston
|
5WX-F3157-20-00 |
— | ||
|
35
|
35
5WX-F3183-20-00
Circlip
|
5WX-F3183-20-00 |
— | ||
|
36
|
36
5WX-F3154-00-00
Cap
|
5WX-F3154-00-00 |
— | ||
|
37
|
37
5WX-F3346-20-00
Bolt 1
|
5WX-F3346-20-00 |
— | ||
|
38
|
38
5WX-F3340-20-00
Under Bracket Comp
AP |
5WX-F3340-20-00 |
— | ||
|
39
|
39
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
39
|
39
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
40
|
40
5WX-F3346-10-00
Bolt 1
|
5WX-F3346-10-00 |
— | ||
|
41
|
41
5HP-25381-00-00 Axle, WheelAP (FOR ENDURANCE) |
5HP-25381-00-00 |
from US $29.02 |
||
