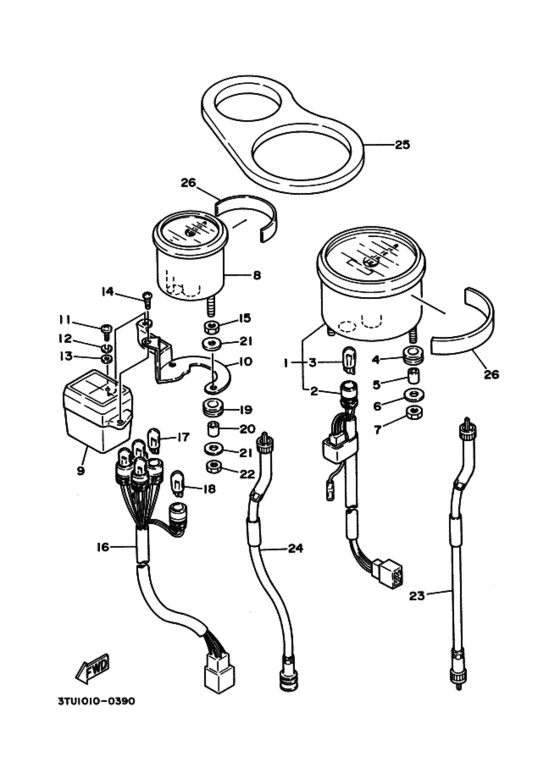

Meter Diagram Yamaha TZR50
- Year
- 1992
- Colour
- White (WW; 0036)
- Model code
- 3TU3
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- TZR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3TU-83580-01-00
Speedometer Assy
スピードメータアセンブリ; |
3TU-83580-01-00 |
— | ||
|
2
|
2
3TU-83509-00-00
Socket Cord Assy
．ソケツトコードアセンブリ; |
3TU-83509-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
．ソケツトコードアセンブリ; |
999-99999-99-00 |
— | ||
|
3
|
3
4G1-84744-00-00 Bulb (12V-3.4W T10)．．バルブ ; １２Ｖ−３４Ｗ |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
3
|
3
4G1-84744-00-XX
Bulb (12V-3.4W T10)
．．バルブ ; １２Ｖ−３４Ｗ |
4G1-84744-00-XX |
— | ||
|
4
|
4
904-80134-28-00 Grommet(80K) |
904-80134-28-00 |
from US $2.41 |
||
|
5
|
5
90387-053H3-00 Collarカラー; |
90387-053H3-00 |
from US $1.98 |
||
|
6
|
6
90201-05031-00 Washer, Plateワツシヤ，プレート; |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
6
|
6
90201-05725-00 Washer, Plateワツシヤ，プレート; |
90201-05725-00 |
from US $1.70 |
||
|
6
|
6
90201-05043-00 Washer, Plateワツシヤ，プレート; |
90201-05043-00 |
from US $1.70 |
||
|
7
|
7
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
8
|
8
3TU-83540-00-00
Tachometer Assy
タコメータアセンブリ; |
3TU-83540-00-00 |
— | ||
|
9
|
9
3TU-83530-00-00 Pilot Light Assy |
3TU-83530-00-00 |
US $46.61 |
||
| replacement | |||||
|
9
|
9
4YV-83530-00-00 Pilot Light Assy |
4YV-83530-00-00 |
US $46.61 |
||
|
10
|
10
3TU-83519-00-00
Bracket, Meter
ブラケツト，メータ; |
3TU-83519-00-00 |
— | ||
|
11
|
11
98506-03012-00 Screw, Pan Head |
98506-03012-00 |
US $2.13 |
||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
92990-03100-00 Washer, Springワツシヤ，スプリング; |
92990-03100-00 |
from US $1.21 |
||
|
13
|
13
92902-03600-00 Washerワツシヤ，プレート; |
92902-03600-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
92907-03600-00 Washer(3Sx)ワツシヤ，プレート; |
92907-03600-00 |
from US $1.07 |
||
|
14
|
14
90164-03027-00 Screw, Tapping |
90164-03027-00 |
US $1.94 |
||
| replacement | |||||
|
14
|
14
90164-03024-00 Screw, Tapping |
90164-03024-00 |
from US $1.48 |
||
|
15
|
15
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
16
|
16
3TU-8350L-00-00
Socket Assy
ソケツトアセンブリ; |
3TU-8350L-00-00 |
— | ||
|
17
|
17
4G1-84744-00-00 Bulb (12V-3.4W T10)．バルブ ; １２Ｖ−３４Ｗ |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
17
|
17
4G1-84744-00-XX
Bulb (12V-3.4W T10)
．バルブ ; １２Ｖ−３４Ｗ |
4G1-84744-00-XX |
— | ||
|
18
|
18
1YT-83517-00-00 Bulb (12V-1.7W T10)．バルブ ; １２Ｖ−１７Ｗ，Ｔ１０ |
1YT-83517-00-00 |
US $3.26 |
||
| replacement | |||||
|
18
|
18
3GM-83517-00-00 Bulb (12V-1.7W)．バルブ ; １２Ｖ−１７Ｗ，Ｔ１０ |
3GM-83517-00-00 |
from US $3.26 |
||
|
19
|
19
904-80134-28-00 Grommet(80K) |
904-80134-28-00 |
from US $2.41 |
||
|
20
|
20
90387-053H3-00 Collarカラー; |
90387-053H3-00 |
from US $1.98 |
||
|
21
|
21
90201-05031-00 Washer, Plateワツシヤ，プレート; |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
21
|
21
90201-05725-00 Washer, Plateワツシヤ，プレート; |
90201-05725-00 |
from US $1.70 |
||
|
21
|
21
90201-05043-00 Washer, Plateワツシヤ，プレート; |
90201-05043-00 |
from US $1.70 |
||
|
22
|
22
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
23
|
23
3TU-83550-00-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
3TU-83550-00-00 |
US $27.61 |
||
| replacement | |||||
|
23
|
23
3TU-83550-01-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
3TU-83550-01-00 |
US $27.61 |
||
|
24
|
24
5R2-83560-01-00 Tachometer Cable Assyタコメータケーブルアセンブリ; |
5R2-83560-01-00 |
US $40.62 |
||
| replacement | |||||
|
24
|
24
3SX-83560-01-00 Tachometer Cable Assyタコメータケーブルアセンブリ; |
3SX-83560-01-00 |
US $40.62 |
||
|
25
|
25
3TU-83611-00-00
Panel, Meter
パネル，メータ; |
3TU-83611-00-00 |
— | ||
|
26
|
26
53Y-82121-00-00 Pad, Battery |
53Y-82121-00-00 |
US $2.18 |
||
