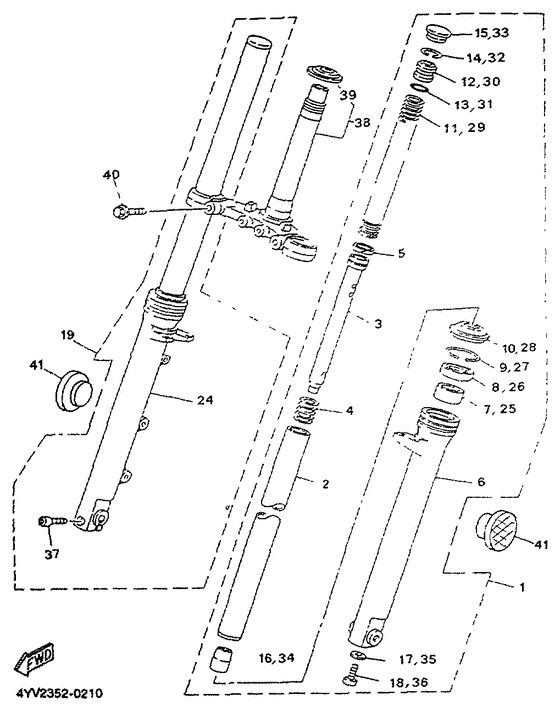

Front fork Diagram Yamaha TZR50
- Year
- 2000
- Model code
- 4YV2
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- TZR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4BA-F3102-00-35
Front Fork Assy (L.h)
|
4BA-F3102-00-35 |
— | ||
|
02
|
02
2RN-F3110-00-00
Inner Tube Comp.1
|
2RN-F3110-00-00 |
— | ||
| replacement | |||||
|
02
|
02
1GU-23110-00-00
Inner Tube Comp.1
|
1GU-23110-00-00 |
— | ||
|
03
|
03
4BA-23171-01-00
Piston, Front Fork
|
4BA-23171-01-00 |
— | ||
| replacement | |||||
|
03
|
03
4BA-23170-00-00
Cylinder Comp., Front Fork
|
4BA-23170-00-00 |
— | ||
|
04
|
04
2RN-F3151-00-00
Spring, Rebound
|
2RN-F3151-00-00 |
— | ||
|
05
|
05
2RN-F3157-00-00
Ring, Piston
|
2RN-F3157-00-00 |
— | ||
|
06
|
06
4BA-F3126-00-35
Tube, Outer (L.h)
|
4BA-F3126-00-35 |
— | ||
|
07
|
07
1GU-23125-00-00 Metal, Slide 1 |
1GU-23125-00-00 |
from US $10.19 |
||
|
08
|
08
93110-33023-00 Ok Seal, Swo-Type |
93110-33023-00 |
from US $12.04 |
||
|
09
|
09
2RN-F3156-00-00
Ring, Snap
|
2RN-F3156-00-00 |
— | ||
|
10
|
10
1GU-23144-00-00 Seal, Dust |
1GU-23144-00-00 |
US $13.88 |
||
|
12
|
12
2RN-F3111-00-00
Bolt, Cap
|
2RN-F3111-00-00 |
— | ||
|
13
|
13
93210-23858-00 O-Ring |
93210-23858-00 |
US $4.25 |
||
| replacement | |||||
|
13
|
13
93210-23587-00 O-Ring |
93210-23587-00 |
US $4.25 |
||
|
14
|
14
93450-31114-00 Circlip, Inner |
93450-31114-00 |
US $2.27 |
||
| replacement | |||||
|
14
|
14
93450-32116-00 Circlip |
93450-32116-00 |
from US $2.18 |
||
|
15
|
15
2RN-F3154-00-00
Cap
|
2RN-F3154-00-00 |
— | ||
|
16
|
16
4BA-F3173-00-00
Spindle, Taper
|
4BA-F3173-00-00 |
— | ||
|
17
|
17
90201-081E6-00 Gasket |
90201-081E6-00 |
US $1.70 |
||
| replacements | |||||
|
17
|
17
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
17
|
17
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
18
|
18
90110-08X00-00 Bolt, Hexagon Socket Head |
90110-08X00-00 |
US $2.13 |
||
|
19
|
19
4BA-F3103-00-35
Front Fork Assy (R.h)
|
4BA-F3103-00-35 |
— | ||
|
20
|
20
2RN-F3110-00-00
Inner Tube Comp.1
|
2RN-F3110-00-00 |
— | ||
| replacement | |||||
|
20
|
20
1GU-23110-00-00
Inner Tube Comp.1
|
1GU-23110-00-00 |
— | ||
|
21
|
21
4BA-23171-01-00
Piston, Front Fork
|
4BA-23171-01-00 |
— | ||
| replacement | |||||
|
21
|
21
4BA-23170-00-00
Cylinder Comp., Front Fork
|
4BA-23170-00-00 |
— | ||
|
22
|
22
2RN-F3151-00-00
Spring, Rebound
|
2RN-F3151-00-00 |
— | ||
|
23
|
23
2RN-F3157-00-00
Ring, Piston
|
2RN-F3157-00-00 |
— | ||
|
24
|
24
4BA-F3136-00-35
Tube, Outer 2
|
4BA-F3136-00-35 |
— | ||
|
25
|
25
1GU-23125-00-00 Metal, Slide 1 |
1GU-23125-00-00 |
from US $10.19 |
||
|
26
|
26
93110-33023-00 Ok Seal, Swo-Type |
93110-33023-00 |
from US $12.04 |
||
|
27
|
27
2RN-F3156-00-00
Ring, Snap
|
2RN-F3156-00-00 |
— | ||
|
28
|
28
1GU-23144-00-00 Seal, Dust |
1GU-23144-00-00 |
US $13.88 |
||
|
29
|
29
4BA-F3141-00-00
Spring, Front Fork
|
4BA-F3141-00-00 |
— | ||
|
30
|
30
2RN-F3111-00-00
Bolt, Cap
|
2RN-F3111-00-00 |
— | ||
|
31
|
31
93210-23858-00 O-Ring |
93210-23858-00 |
US $4.25 |
||
| replacement | |||||
|
31
|
31
93210-23587-00 O-Ring |
93210-23587-00 |
US $4.25 |
||
|
32
|
32
93450-31114-00 Circlip, Inner |
93450-31114-00 |
US $2.27 |
||
| replacement | |||||
|
32
|
32
93450-32116-00 Circlip |
93450-32116-00 |
from US $2.18 |
||
|
33
|
33
2RN-F3154-00-00
Cap
|
2RN-F3154-00-00 |
— | ||
|
34
|
34
4BA-F3173-00-00
Spindle, Taper
|
4BA-F3173-00-00 |
— | ||
|
35
|
35
90201-081E6-00 Gasket |
90201-081E6-00 |
US $1.70 |
||
| replacements | |||||
|
35
|
35
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
35
|
35
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
36
|
36
90110-08X00-00 Bolt, Hexagon Socket Head |
90110-08X00-00 |
US $2.13 |
||
|
37
|
37
9131L-08030-00 BoltBolt hex. socket |
9131L-08030-00 |
US $1.07 |
||
|
38
|
38
1GU-23340-00-33
Under Bracket Comp
|
1GU-23340-00-33 |
— | ||
|
39
|
39
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
39
|
39
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
40
|
40
9582M-10030-00
Bolt
|
9582M-10030-00 |
— | ||
|
41
|
41
4YV-H5111-00-00
Reflector, Front 1
|
4YV-H5111-00-00 |
— | ||
