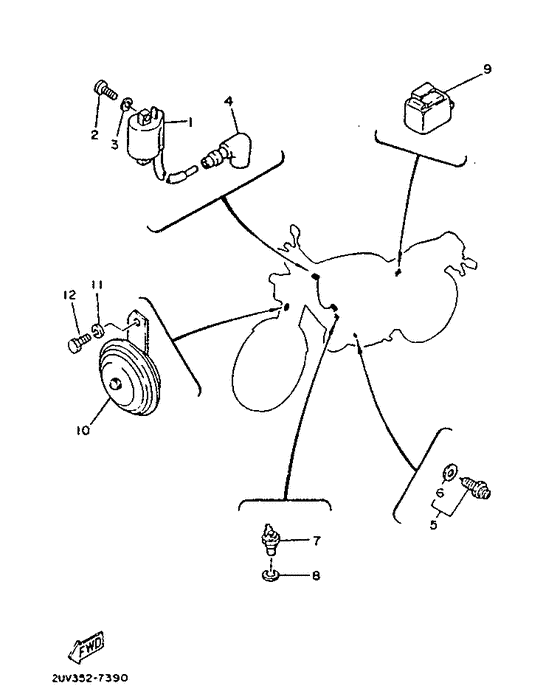

Equipo electrico 2 Diagram Yamaha TZR80
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 2UV
- Sales region
- Spain (999)
- Engine Capacity
- 80
- Model
- TZR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2UV-82310-M0-00 Ignition Coil Assy |
2UV-82310-M0-00 |
from US $58.88 |
||
| replacements | |||||
|
01
|
01
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
01
|
01
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
01
|
01
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
01
|
01
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
01
|
01
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
01
|
01
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
02
|
02
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
02
|
02
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
03
|
03
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
04
|
04
2RN-H2370-00-00
Plug Cap Assy
|
2RN-H2370-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
341-82540-01-00
Neutral Switch Assy
|
341-82540-01-00 |
— | ||
| replacements | |||||
|
05
|
05
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
05
|
05
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
06
|
06
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
06
|
06
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
07
|
07
17W-83591-00-00 Thermo Unit |
17W-83591-00-00 |
US $83.93 |
||
|
08
|
08
90430-10164-00 Gasket |
90430-10164-00 |
from US $1.56 |
||
|
09
|
09
2RN-H3350-00-00
Flasher Relay Assy
|
2RN-H3350-00-00 |
— | ||
| replacement | |||||
|
09
|
09
21L-H3350-00-00
Flasher Relay Assy
|
21L-H3350-00-00 |
— | ||
|
10
|
10
2RN-H3371-00-00
Horn
|
2RN-H3371-00-00 |
— | ||
|
11
|
11
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
97001-06012-00 Bolt, Hexagon |
97001-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
