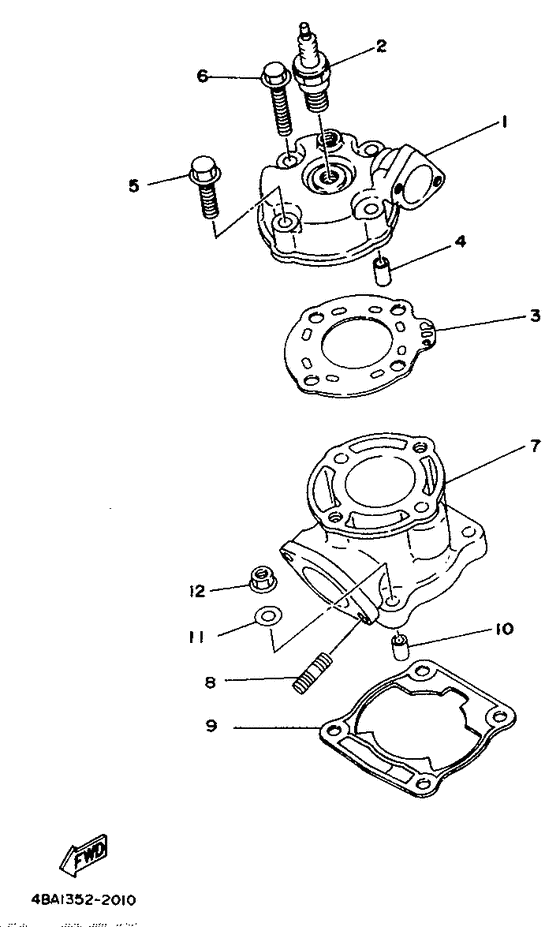

Cilindro Diagram Yamaha TZR80
- Year
- 1992
- Colour
- White (WW; 0036)
- Model code
- 4BA1
- Sales region
- Spain (999)
- Engine Capacity
- 80
- Model
- TZR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4BA-11111-00-00
Head, Cylinder 1
|
4BA-11111-00-00 |
— | ||
|
02
|
02
947-02001-88-00 Br9Es Ngk Solid Top |
947-02001-88-00 |
from US $5.32 |
||
| replacements | |||||
|
02
|
02
947-09001-88-00 Plug, Spark (Ngk Br9Es) |
947-09001-88-00 |
US $7.08 |
||
|
02
|
02
BR9-ES01P-C0-00 YA BR9ES NGK SPLUG SOLID |
BR9-ES01P-C0-00 |
US $25.64 |
||
|
03
|
03
4BA-11181-00-00
Gasket, Cylinder Head 1
|
4BA-11181-00-00 |
— | ||
|
04
|
04
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
04
|
04
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
05
|
05
95811-08035-00 Bolt, Flange (95821-08035-00) |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
06
|
06
958-11080-45-00
Bolt, Flange
|
958-11080-45-00 |
— | ||
| replacements | |||||
|
06
|
06
95814-08045-00 Bolt, Flange |
95814-08045-00 |
from US $2.83 |
||
|
06
|
06
95817-08045-00 Bolt, Flange(Jn5) |
95817-08045-00 |
from US $1.07 |
||
|
07
|
07
4BA-11311-00-00
Cylinder 1
|
4BA-11311-00-00 |
— | ||
|
08
|
08
95611-08325-00 Bolt, Stud |
95611-08325-00 |
from US $5.81 |
||
| replacement | |||||
|
08
|
08
956-17083-25-00 Bolt, Stud 2 |
956-17083-25-00 |
from US $5.81 |
||
|
09
|
09
4BA-11351-00-00 Gasket, Cylinder |
4BA-11351-00-00 |
US $9.07 |
||
|
10
|
10
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
10
|
10
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
11
|
11
929-01082-00-00
Washer, Plain
|
929-01082-00-00 |
— | ||
| replacements | |||||
|
11
|
11
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
11
|
11
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
12
|
12
90179-08299-00 Nut |
90179-08299-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
