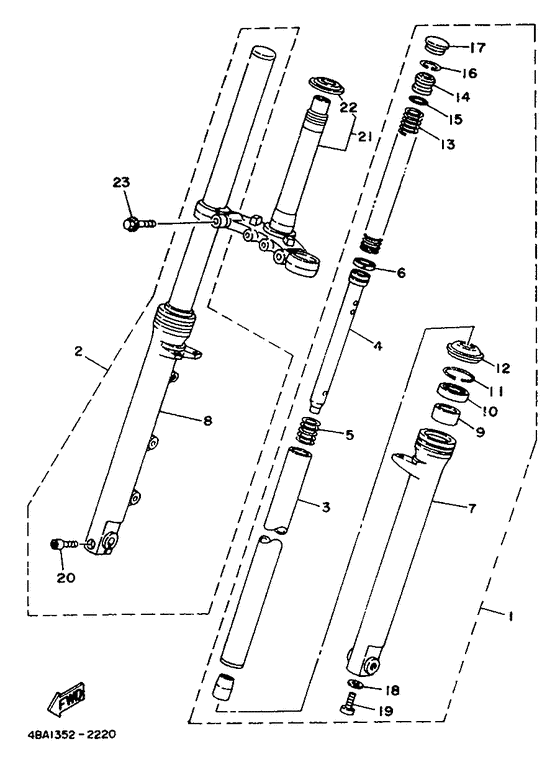

Front fork Diagram Yamaha TZR80
- Year
- 1992
- Colour
- White (WW; 0036)
- Model code
- 4BA1
- Sales region
- Spain (999)
- Engine Capacity
- 80
- Model
- TZR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4BA-23102-00-00
Front Fork Assy (L.h)
|
4BA-23102-00-00 |
— | ||
|
02
|
02
4BA-23103-00-00
Front Fork Assy (R.h)
|
4BA-23103-00-00 |
— | ||
|
03
|
03
1GU-23110-00-00
Inner Tube Comp.1
1gu-23110-00 |
1GU-23110-00-00 |
— | ||
|
04
|
04
4BA-23171-00-00
Piston, Front Fork
|
4BA-23171-00-00 |
— | ||
| replacement | |||||
|
04
|
04
4BA-23170-00-00
Cylinder Comp., Front Fork
|
4BA-23170-00-00 |
— | ||
|
05
|
05
1GU-23151-00-00
Spring, Rebound
1gu-23151-00 |
1GU-23151-00-00 |
— | ||
|
06
|
06
1GU-23157-00-00
Ring, Piston
1gu-23157-00 |
1GU-23157-00-00 |
— | ||
|
07
|
07
4BA-23126-00-00
Tube, Outer (L.h)
|
4BA-23126-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
4BA-23136-00-00
Tube, Outer 2
|
4BA-23136-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
1GU-23125-00-00 Metal, Slide 1 |
1GU-23125-00-00 |
from US $10.19 |
||
|
10
|
10
93110-33023-00 Ok Seal, Swo-Type |
93110-33023-00 |
from US $12.04 |
||
|
11
|
11
2RN-F3156-00-00
Ring, Snap
93450-46113 |
2RN-F3156-00-00 |
— | ||
|
12
|
12
1GU-23144-00-00 Seal, Dust |
1GU-23144-00-00 |
US $13.88 |
||
|
13
|
13
4BA-23141-00-00
Spring, Front Fork
|
4BA-23141-00-00 |
— | ||
| replacement | |||||
|
13
|
13
4BA-F3141-00-00
Spring, Front Fork
|
4BA-F3141-00-00 |
— | ||
|
14
|
14
2RN-F3111-00-00
Bolt, Cap
|
2RN-F3111-00-00 |
— | ||
|
15
|
15
93210-23858-00 O-Ring93210-23587 |
93210-23858-00 |
US $4.25 |
||
| replacement | |||||
|
15
|
15
93210-23587-00 O-Ring93210-23587 |
93210-23587-00 |
US $4.25 |
||
|
16
|
16
93450-31114-00 Circlip, Inner |
93450-31114-00 |
US $2.27 |
||
| replacement | |||||
|
16
|
16
93450-32116-00 Circlip |
93450-32116-00 |
from US $2.18 |
||
|
17
|
17
1GU-23154-00-00 Plug, Inner Tube1gu-23154-00 |
1GU-23154-00-00 |
US $10.37 |
||
|
18
|
18
90430-08155-00 Gasket |
90430-08155-00 |
US $1.70 |
||
| replacements | |||||
|
18
|
18
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
18
|
18
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
19
|
19
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
20
|
20
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
20
|
20
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
21
|
21
2RN-F3340-00-00
Under Bracket Comp
1gm-23340-00 |
2RN-F3340-00-00 |
— | ||
| replacement | |||||
|
21
|
21
1GU-23340-00-33
Under Bracket Comp
1gm-23340-00 |
1GU-23340-00-33 |
— | ||
|
22
|
22
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
22
|
22
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
23
|
23
95826-10030-00 Bolt, Flange |
95826-10030-00 |
US $1.07 |
||
| replacement | |||||
|
23
|
23
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.18 |
||
