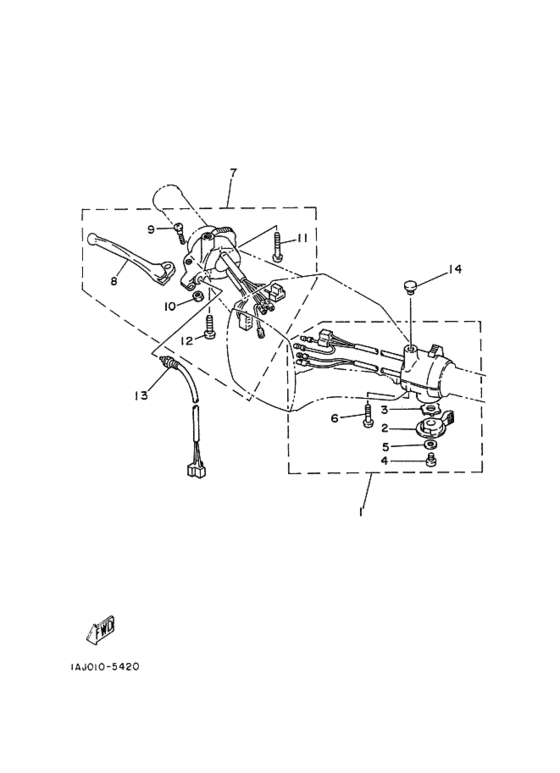

Handle switch & lever Diagram Yamaha V80 Mate
- Year
- 1985
- Colour
- Candy Blue (CB; 0029)
- Model code
- 1HF
- Sales region
- Japan (010)
- Engine Capacity
- 80
- Color Variant
- B
- Model
- V80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18A-83975-00-00
Switch, Handle 2
|
18A-83975-00-00 |
— | ||
|
2
|
2
18A-83941-00-00 Lever, Starter．レバー，スタータ; |
18A-83941-00-00 |
US $10.48 |
||
|
3
|
3
90209-10131-00 Washer．ワツシヤ; |
90209-10131-00 |
from US $1.84 |
||
|
4
|
4
92501-06008-00 Screw, Pan Head．スクリユ，パンヘツド; |
92501-06008-00 |
US $1.56 |
||
| replacements | |||||
|
4
|
4
97885-06008-00 Screw, Pan Head．スクリユ，パンヘツド; |
97885-06008-00 |
from US $1.56 |
||
|
4
|
4
985-80060-08-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-80060-08-00 |
— | ||
|
5
|
5
929-01066-00-00
Washer
．ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646)．ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
902-01061-A5-00 Washer, Plate (4H7)．ワツシヤ，プレート; |
902-01061-A5-00 |
from US $2.08 |
||
|
5
|
5
92907-06600-00 Washer, Plate．ワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
6
|
6
98501-05025-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-05025-00 |
US $1.35 |
||
| replacement | |||||
|
6
|
6
985-80055-25-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-80055-25-00 |
from US $1.33 |
||
|
7
|
7
18A-W8292-00-00
Lever Holder Assy (Right)
レバー，ホルダアセンブリ ; ライト |
18A-W8292-00-00 |
— | ||
|
8
|
8
395-83922-02-00 Lever 2．レバー ２; |
395-83922-02-00 |
US $14.17 |
||
|
9
|
9
90149-06174-00 Screw．スクリユ; |
90149-06174-00 |
US $3.54 |
||
|
10
|
10
95601-05100-00 Nut, U．ナツト，Ｕ; |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
10
|
10
95617-05100-00 Nut, U．ナツト，Ｕ; |
95617-05100-00 |
from US $2.22 |
||
|
11
|
11
985-01050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01050-30-00 |
— | ||
| replacements | |||||
|
11
|
11
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
11
|
11
98580-05530-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-05530-00 |
from US $2.27 |
||
|
12
|
12
98501-05025-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-05025-00 |
US $1.35 |
||
| replacement | |||||
|
12
|
12
985-80055-25-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-80055-25-00 |
from US $1.33 |
||
|
13
|
13
18A-83980-00-00 Stop Switch Assembly (K/kc) |
18A-83980-00-00 |
US $15.80 |
||
|
14
|
14
90338-07011-00 Plug |
90338-07011-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
