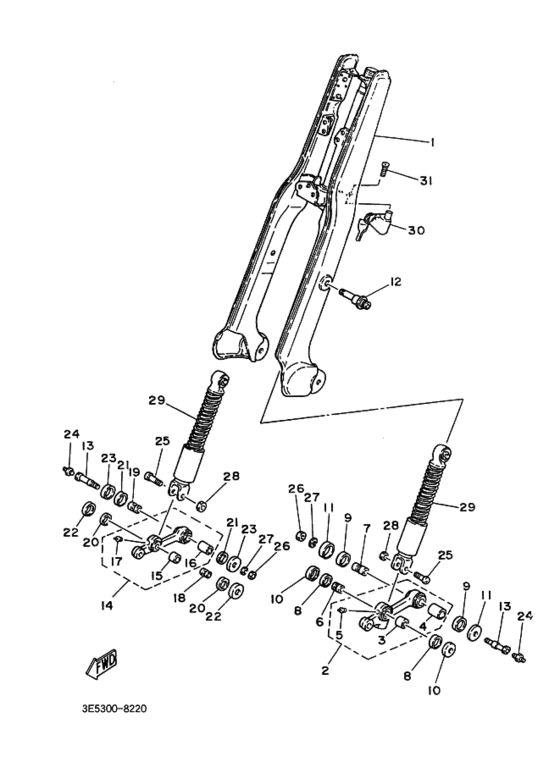

Front fork Diagram Yamaha V80 V80IIIED
- Year
- 1978
- Colour
- New High Sparkle Green (NHG; 00V9)
- Model code
- 3E7
- Sales region
- Japan (010)
- Engine Capacity
- 80
- Color Variant
- A
- Model
- V80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
517-23310-02-V9
Fork Cover Comp
フオークカバーコンプリート; ＵＲ ＮＨＧ |
517-23310-02-V9 |
— | ||
|
2
|
2
296-23361-02-00 Arm 1アーム １; |
296-23361-02-00 |
US $121.17 |
||
|
3
|
3
296-23362-09-00 Bush 1．ブツシング １; |
296-23362-09-00 |
from US $9.38 |
||
|
4
|
4
296-23372-09-00 Bush 2．ブツシング ２; |
296-23372-09-00 |
from US $12.17 |
||
|
5
|
5
93700-04002-00 Nipple, Grease．ニツプル，グリース; |
93700-04002-00 |
from US $2.81 |
||
|
6
|
6
296-23363-01-00 Collar 1カラー １; |
296-23363-01-00 |
from US $6.32 |
||
|
7
|
7
296-23364-01-00 Collar 2カラー ２; |
296-23364-01-00 |
US $11.62 |
||
| replacement | |||||
|
7
|
7
296-23364-02-00 Collar 2カラー ２; |
296-23364-02-00 |
from US $7.52 |
||
|
8
|
8
296-23381-01-00 Seal, Dust 1シール，ダスト １; |
296-23381-01-00 |
from US $2.11 |
||
|
9
|
9
296-23382-01-00 Seal, Dust 2シール，ダスト ２; |
296-23382-01-00 |
from US $2.11 |
||
|
10
|
10
116-23383-00-00 Cover, Dust Sealカバー，ダストシール １; |
116-23383-00-00 |
from US $2.11 |
||
|
11
|
11
116-23384-00-00 Cover, Dust Seal 2カバー，ダストシール ２; |
116-23384-00-00 |
from US $3.20 |
||
| replacement | |||||
|
11
|
11
3AC-23384-00-00 Cover, Dust Seal 2カバー，ダストシール ２; |
3AC-23384-00-00 |
from US $3.87 |
||
|
12
|
12
90109-08208-00
Bolt
|
90109-08208-00 |
— | ||
|
13
|
13
90401-10035-00 Bolt, Union |
90401-10035-00 |
from US $5.85 |
||
|
14
|
14
296-23371-02-00 Arm 2アーム ２; |
296-23371-02-00 |
US $121.17 |
||
|
15
|
15
296-23362-09-00 Bush 1．ブツシング １; |
296-23362-09-00 |
from US $9.38 |
||
|
16
|
16
296-23372-09-00 Bush 2．ブツシング ２; |
296-23372-09-00 |
from US $12.17 |
||
|
17
|
17
93700-04002-00 Nipple, Grease．ニツプル，グリース; |
93700-04002-00 |
from US $2.81 |
||
|
18
|
18
296-23363-01-00 Collar 1カラー １; |
296-23363-01-00 |
from US $6.32 |
||
|
19
|
19
296-23364-01-00 Collar 2カラー ２; |
296-23364-01-00 |
US $11.62 |
||
| replacement | |||||
|
19
|
19
296-23364-02-00 Collar 2カラー ２; |
296-23364-02-00 |
from US $7.52 |
||
|
20
|
20
296-23381-01-00 Seal, Dust 1シール，ダスト １; |
296-23381-01-00 |
from US $2.11 |
||
|
21
|
21
296-23382-01-00 Seal, Dust 2シール，ダスト ２; |
296-23382-01-00 |
from US $2.11 |
||
|
22
|
22
116-23383-00-00 Cover, Dust Sealカバー，ダストシール １; |
116-23383-00-00 |
from US $2.11 |
||
|
23
|
23
116-23384-00-00 Cover, Dust Seal 2カバー，ダストシール ２; |
116-23384-00-00 |
from US $3.20 |
||
| replacement | |||||
|
23
|
23
3AC-23384-00-00 Cover, Dust Seal 2カバー，ダストシール ２; |
3AC-23384-00-00 |
from US $3.87 |
||
|
24
|
24
937-00060-04-00
Nipple, Grease
ニツプル，グリース; |
937-00060-04-00 |
— | ||
| replacement | |||||
|
24
|
24
93700-06M03-00 Nipple, Greaseニツプル，グリース; |
93700-06M03-00 |
from US $3.04 |
||
|
25
|
25
90155-08002-00 Screw, Flat Fillisterスクリユ，フラツトフリスター; |
90155-08002-00 |
from US $2.69 |
||
|
26
|
26
95301-10700-00 Nut |
95301-10700-00 |
US $7.37 |
||
| replacements | |||||
|
26
|
26
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
26
|
26
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
27
|
27
92901-10100-00 Washer, Springワツシヤ，スプリング; |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
27
|
27
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.66 |
||
|
28
|
28
95301-08700-00 Nut |
95301-08700-00 |
US $1.42 |
||
| replacement | |||||
|
28
|
28
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
29
|
29
296-23350-02-00 Shock Absorber Assyシヨツクアブソーバアセンブリ; |
296-23350-02-00 |
US $143.69 |
||
|
30
|
30
3E1-23408-00-00 Steering Lock Assy |
3E1-23408-00-00 |
US $50.62 |
||
|
31
|
31
98602-05010-00 Screw, Oval Headスクリユ，オーバルヘツド; |
98602-05010-00 |
from US $1.84 |
||
| replacement | |||||
|
31
|
31
98707-05010-00 Screw, Countersunkスクリユ，オーバルヘツド; |
98707-05010-00 |
from US $1.84 |
||
