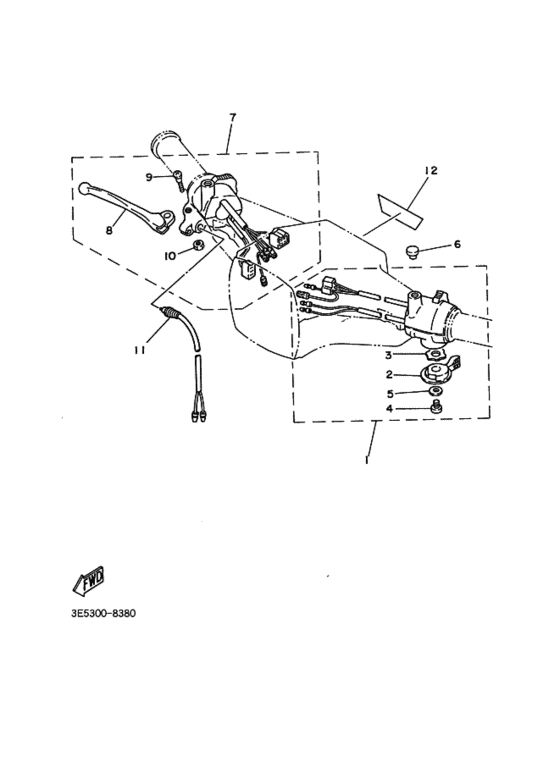

Handle switch & lever Diagram Yamaha V80 V80IIIED
- Year
- 1978
- Colour
- New High Sparkle Green (NHG; 00V9)
- Model code
- 3E7
- Sales region
- Japan (010)
- Engine Capacity
- 80
- Color Variant
- A
- Model
- V80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3E1-83975-00-00
Lever Holder Assy (L.h)
レバーホルダアセンブリ １; |
3E1-83975-00-00 |
— | ||
|
2
|
2
439-83941-02-00 Lever, Starter．レバー，スタータ; |
439-83941-02-00 |
from US $14.38 |
||
| replacement | |||||
|
2
|
2
3LA-83941-00-00 Lever, Starter．レバー，スタータ; |
3LA-83941-00-00 |
from US $10.12 |
||
|
3
|
3
90209-10131-00 Washer．ワツシヤ; |
90209-10131-00 |
from US $1.84 |
||
|
4
|
4
92501-06008-00 Screw, Pan Head．スクリユ，パンヘツド; |
92501-06008-00 |
US $1.56 |
||
| replacements | |||||
|
4
|
4
97885-06008-00 Screw, Pan Head．スクリユ，パンヘツド; |
97885-06008-00 |
from US $1.56 |
||
|
4
|
4
985-80060-08-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-80060-08-00 |
— | ||
|
5
|
5
929-01066-00-00
Washer
．ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646)．ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
902-01061-A5-00 Washer, Plate (4H7)．ワツシヤ，プレート; |
902-01061-A5-00 |
from US $2.08 |
||
|
5
|
5
92907-06600-00 Washer, Plate．ワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
6
|
6
90338-07011-00 Plug |
90338-07011-00 |
from US $2.13 |
||
| replacement | |||||
|
6
|
6
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
|
7
|
7
3E3-W8272-00-00
Lever Holder Assy (Right)
レバーホルダアセンブリ ２; |
3E3-W8272-00-00 |
— | ||
|
8
|
8
122-83922-01-38
Lever 2
．レバー２; ＣＬＰ |
122-83922-01-38 |
— | ||
| replacement | |||||
|
8
|
8
122-83922-01-00
Lever R
．レバー２; ＣＬＰ |
122-83922-01-00 |
— | ||
|
9
|
9
90149-05119-00 Screw (2E9)．スクリユ; |
90149-05119-00 |
from US $1.70 |
||
|
10
|
10
95601-05100-00 Nut, U．ナツト，Ｕ; |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
10
|
10
95617-05100-00 Nut, U．ナツト，Ｕ; |
95617-05100-00 |
from US $2.22 |
||
|
11
|
11
2E9-83980-00-00 Front Stop Switch Assy |
2E9-83980-00-00 |
from US $21.62 |
||
| replacement | |||||
|
11
|
11
3E1-83980-09-00 Front Stop Switch Assy |
3E1-83980-09-00 |
from US $25.12 |
||
|
12
|
12
3E1-82505-00-00
Emblem, Main Switch
エンブレム; |
3E1-82505-00-00 |
— | ||
