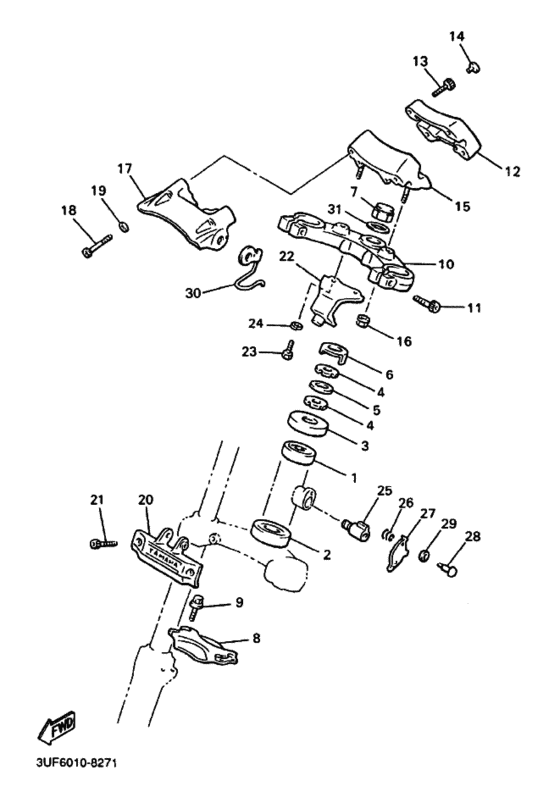

Steering Diagram Yamaha VMAX12 V-MAX (JP)
- Year
- 1999
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3UF6
- Sales region
- Japan (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- VMAX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.53 |
||
|
2
|
2
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.92 |
||
|
3
|
3
1J7-23415-00-00 Cover, Ball Race 1カバー，ボールレース １; |
1J7-23415-00-00 |
from US $3.68 |
||
|
4
|
4
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
4
|
4
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
4
|
4
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
5
|
5
90202-26142-00 Washer, Plateワツシヤ，プレート; |
90202-26142-00 |
from US $1.84 |
||
|
6
|
6
26H-23418-01-00 Washer, Special |
26H-23418-01-00 |
from US $6.94 |
||
|
7
|
7
90176-22081-00 Nut, Crownナツト，クラウン; |
90176-22081-00 |
from US $13.88 |
||
|
8
|
8
3LR-2313A-00-00 Brace, Forkブレイス，フオーク; |
3LR-2313A-00-00 |
US $185.18 |
||
|
9
|
9
95024-08016-00 Bolt, Flange (Small Head)ボルト，フランジ; |
95024-08016-00 |
from US $1.98 |
||
|
10
|
10
1FK-23435-10-00
Crown, Handle
|
1FK-23435-10-00 |
— | ||
|
11
|
11
91314-08040-00 Bolt, Hexagon Socket Headボルト; |
91314-08040-00 |
from US $3.26 |
||
|
12
|
12
1FK-23441-00-38 Holder, Handle Upperホルダ，ハンドルアツパ; クリヤ （バフアリ） |
1FK-23441-00-38 |
from US $85.38 |
||
|
13
|
13
913-17080-30-00 Boltボルト，ソケツトヘツド; |
913-17080-30-00 |
from US $1.07 |
||
|
14
|
14
90338-08163-00 Plug (Crome) |
90338-08163-00 |
from US $2 |
||
|
15
|
15
1FK-23442-00-38 Holder, Handle Lowerホルダ，ハンドルロワー; クリヤ （バフアリ） |
1FK-23442-00-38 |
US $224.10 |
||
|
16
|
16
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
16
|
16
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
17
|
17
1FK-23437-00-38 Cover, Crownカバー，クラウン; クリヤ （バフアリ） |
1FK-23437-00-38 |
from US $204.48 |
||
|
18
|
18
91314-06050-00 Boltボルト; |
91314-06050-00 |
from US $1.56 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
20
|
20
1FK-23174-00-00
Stay, Headlight
ステー，ヘツドライト; |
1FK-23174-00-00 |
— | ||
|
21
|
21
913-14060-20-00 Boltボルト; |
913-14060-20-00 |
from US $1.07 |
||
|
22
|
22
1FK-23486-00-00 Stay, Plateステー，プレート; |
1FK-23486-00-00 |
from US $32.65 |
||
|
23
|
23
970-27060-12-00
Bolt, Hexagon
ボルト; |
970-27060-12-00 |
— | ||
| replacement | |||||
|
23
|
23
97017-06012-00 Boltボルト; |
97017-06012-00 |
from US $1.21 |
||
|
24
|
24
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
25
|
25
2A6-23408-00-00 Steering Lock Assy |
2A6-23408-00-00 |
from US $77.92 |
||
|
26
|
26
90502-09024-00 Spring, Conical |
90502-09024-00 |
from US $2.55 |
||
|
27
|
27
584-23484-01-00 Cap, Handle Lock |
584-23484-01-00 |
from US $11.86 |
||
| replacement | |||||
|
27
|
27
3DM-23484-00-00 Cap, Handle Lock |
3DM-23484-00-00 |
from US $11.05 |
||
|
28
|
28
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
29
|
29
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
|
30
|
30
1FK-23317-00-00 Holder, Cableホルダ，ケーブル; |
1FK-23317-00-00 |
US $26.35 |
||
|
31
|
31
90201-220T0-00 Washer, Plateワツシヤ，プレート; |
90201-220T0-00 |
from US $3.71 |
||
| replacement | |||||
|
31
|
31
90201-22018-00 Washer, Plateワツシヤ，プレート; |
90201-22018-00 |
from US $4.39 |
||
