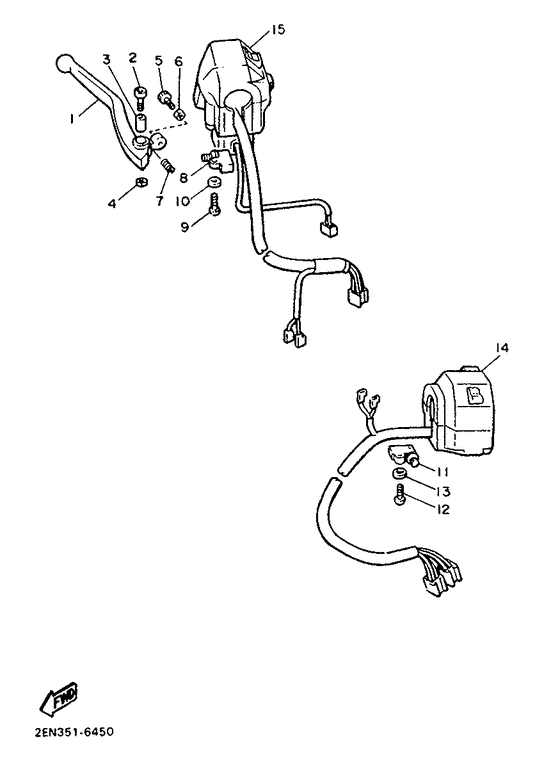

Handle switch & lever Diagram Yamaha VMX12 V-MAX
- Year
- 1992
- Colour
- Deep Scarlet (DPS; 00KU)
- Model code
- 2EN
- Sales region
- France (999)
- Engine Capacity
- 1200
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1FK-83922-00-00 Lever 2 |
1FK-83922-00-00 |
from US $28.17 |
||
|
02
|
02
90110-06074-00 Bolt, Hexagon Socket Head |
90110-06074-00 |
from US $1.84 |
||
|
03
|
03
36Y-83913-00-00 Collar, Lever 1 |
36Y-83913-00-00 |
from US $6.09 |
||
| replacement | |||||
|
03
|
03
36Y-83913-01-00 Collar, Lever 1 |
36Y-83913-01-00 |
from US $6.09 |
||
|
04
|
04
95606-06100-00 Nut, U |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
04
|
04
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
05
|
05
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
05
|
05
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
06
|
06
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
07
|
07
90501-10321-00
Spring, Compression
|
90501-10321-00 |
— | ||
|
08
|
08
36Y-83980-00-00 Front Stop Switch Assy |
36Y-83980-00-00 |
from US $27.31 |
||
| replacement | |||||
|
08
|
08
J45-82503-01-00 Front Stop Switch Assy |
J45-82503-01-00 |
from US $32.18 |
||
|
09
|
09
98508-04018-00
Screw, Pan Head
|
98508-04018-00 |
— | ||
|
10
|
10
92906-04600-00 Washer |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
11
|
11
36Y-82917-00-00 Stop Switch Assy |
36Y-82917-00-00 |
from US $19.84 |
||
|
12
|
12
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
12
|
12
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
13
|
13
92906-04600-00 Washer |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
14
|
14
2EN-83972-00-00
Switch, Handle 4
|
2EN-83972-00-00 |
— | ||
|
15
|
15
2EN-83972-10-00
Switch, Handle 4
|
2EN-83972-10-00 |
— | ||
