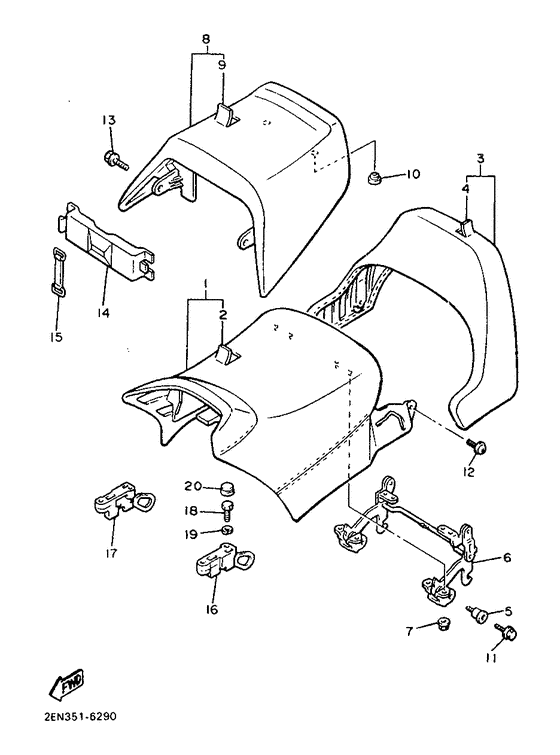

Seat Diagram Yamaha VMX12 V-MAX
- Year
- 1992
- Colour
- Deep Scarlet (DPS; 00KU)
- Model code
- 2EN
- Sales region
- France (999)
- Engine Capacity
- 1200
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1FK-24771-00-00 Seat Comp |
1FK-24771-00-00 |
US $531 |
||
|
02
|
02
1FK-24711-00-00 Cover, Single Seat |
1FK-24711-00-00 |
US $151.87 |
||
|
03
|
03
1FK-24790-00-00
Seat Back Assy
|
1FK-24790-00-00 |
— | ||
|
04
|
04
1FK-24791-00-00
Cover, Seat Back
|
1FK-24791-00-00 |
— | ||
|
05
|
05
1FK-2476F-00-00 Pin, Guide |
1FK-2476F-00-00 |
from US $8.78 |
||
|
06
|
06
1FK-24772-00-00 Hinge Ass'y |
1FK-24772-00-00 |
US $249.97 |
||
|
07
|
07
95706-06500-00 Nut, With Washer |
95706-06500-00 |
from US $1.07 |
||
| replacement | |||||
|
07
|
07
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
08
|
08
1FK-24750-00-00 Tandem Seat Assy |
1FK-24750-00-00 |
US $272.34 |
||
|
09
|
09
1FK-24751-00-00 Cover, Tandem Seat |
1FK-24751-00-00 |
US $128.07 |
||
|
10
|
10
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.36 |
||
|
11
|
11
95806-06012-00 Bolt Hexagon |
95806-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
12
|
12
901-59060-71-00
Screw, With Washer
|
901-59060-71-00 |
— | ||
| replacements | |||||
|
12
|
12
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
12
|
12
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
13
|
13
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
13
|
13
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
14
|
14
1FK-2473T-00-00
Lid 1
|
1FK-2473T-00-00 |
— | ||
|
15
|
15
5H9-21376-00-00 Band, Tool |
5H9-21376-00-00 |
from US $4.57 |
||
|
16
|
16
1FK-24760-00-00 Seat Lever Assy |
1FK-24760-00-00 |
from US $45.05 |
||
|
17
|
17
1FK-24780-00-00 Seat Lock Assy |
1FK-24780-00-00 |
from US $35.03 |
||
|
18
|
18
97002-06012-00 Bolt(80N) |
97002-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
18
|
18
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
19
|
19
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
5K0-28349-50-00 Cap |
5K0-28349-50-00 |
US $19.78 |
||
