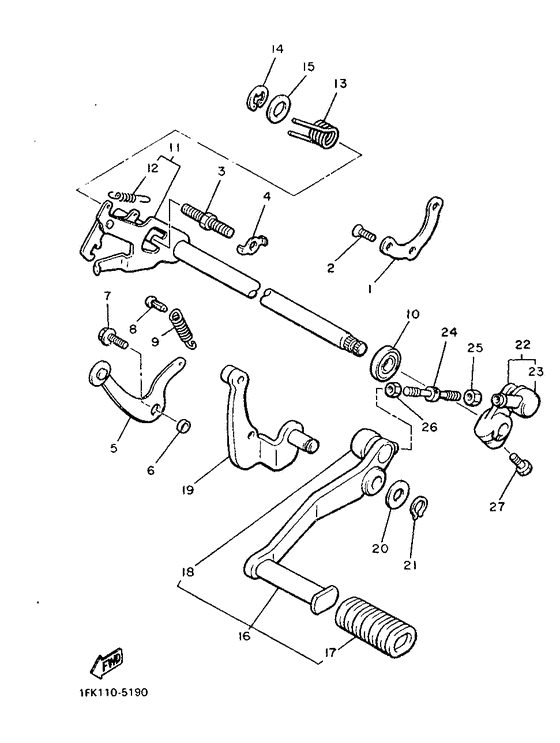

Shift shaft Diagram Yamaha VMX12 V-MAX
- Year
- 1992
- Colour
- Deep Scarlet (DPS; 00KU)
- Model code
- 2EN
- Sales region
- France (999)
- Engine Capacity
- 1200
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
26H-18536-00-00 Stopper, Shift Bar |
26H-18536-00-00 |
US $9.63 |
||
|
02
|
02
90151-06041-00 Screw, Flat Head |
90151-06041-00 |
from US $1.56 |
||
| replacement | |||||
|
02
|
02
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
03
|
03
90109-08441-00 Bolt |
90109-08441-00 |
from US $4.82 |
||
|
04
|
04
90215-08115-00 Washer, Lock |
90215-08115-00 |
from US $1.70 |
||
|
05
|
05
26H-18140-01-00 Stopper Lever Assy |
26H-18140-01-00 |
from US $18.34 |
||
| replacement | |||||
|
05
|
05
26H-18140-02-00 Stopper Lever Assy |
26H-18140-02-00 |
from US $20.57 |
||
|
06
|
06
90387-063F7-00 Collar |
90387-063F7-00 |
from US $2.91 |
||
|
07
|
07
90109-065A9-00 Bolt |
90109-065A9-00 |
from US $2.27 |
||
| replacement | |||||
|
07
|
07
90109-06036-00 Bolt |
90109-06036-00 |
from US $2.27 |
||
|
08
|
08
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
09
|
09
90506-13312-00 Spring, Tension |
90506-13312-00 |
from US $2.77 |
||
|
10
|
10
93102-12106-00 Oil Seal (Sd 12-22-5 Hs) |
93102-12106-00 |
from US $3.72 |
||
| replacement | |||||
|
10
|
10
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $5.41 |
||
|
11
|
11
1FK-18101-00-00 Shift Shaft Assy |
1FK-18101-00-00 |
from US $82.82 |
||
| replacement | |||||
|
11
|
11
1FK-18101-01-00 Shift Shaft Assy |
1FK-18101-01-00 |
from US $104.73 |
||
|
12
|
12
90506-08227-00 Spring, Tension |
90506-08227-00 |
from US $1.66 |
||
|
13
|
13
90508-32588-00 Spring, Torsion |
90508-32588-00 |
from US $6.23 |
||
|
14
|
14
99001-10600-00 Circlip |
99001-10600-00 |
from US $1.39 |
||
| replacement | |||||
|
14
|
14
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
15
|
15
90201-127E1-00 Washer, Plate |
90201-127E1-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90201-125L6-00 Washer, Plate(1Re) |
90201-125L6-00 |
from US $1.84 |
||
|
16
|
16
1FK-18110-00-00 Shift Pedal Assy |
1FK-18110-00-00 |
from US $159.36 |
||
|
17
|
17
22N-18113-00-00 Cover, Shift Pedal |
22N-18113-00-00 |
from US $6.80 |
||
|
18
|
18
2H9-18154-00-00 Cover, Dust |
2H9-18154-00-00 |
from US $5.68 |
||
|
19
|
19
1FK-18128-00-00 Bracket |
1FK-18128-00-00 |
from US $61.07 |
||
|
20
|
20
90201-12688-00 Washer, Plate |
90201-12688-00 |
from US $2.91 |
||
| replacement | |||||
|
20
|
20
90201-124E4-00 Washer, Plate |
90201-124E4-00 |
from US $2.91 |
||
|
21
|
21
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
22
|
22
1FK-18152-00-00
Lever, Shift 4
|
1FK-18152-00-00 |
— | ||
|
23
|
23
2H9-18154-00-00 Cover, Dust |
2H9-18154-00-00 |
from US $5.68 |
||
|
24
|
24
42X-18115-00-00 Rod, Shift |
42X-18115-00-00 |
from US $10.63 |
||
|
25
|
25
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
25
|
25
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
25
|
25
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
26
|
26
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.81 |
||
|
27
|
27
97311-06020-00 Bolt |
97311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
27
|
27
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
