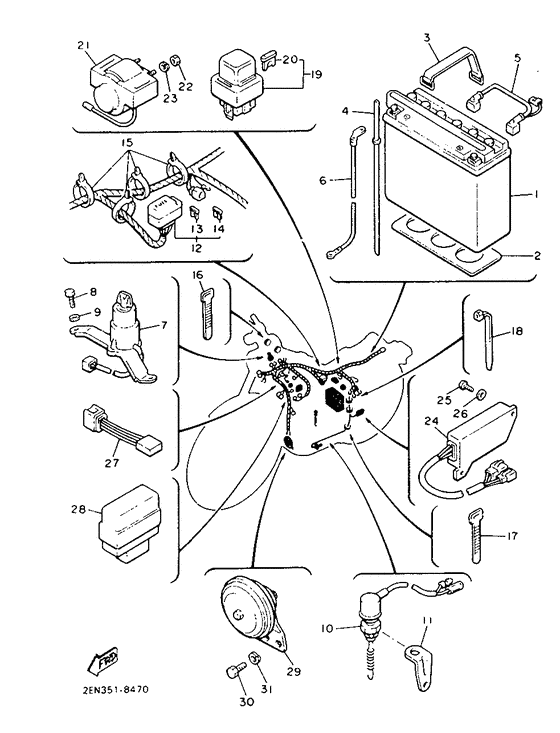

Electrical 2 Diagram Yamaha VMX12 V-MAX
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2EN
- Sales region
- France (999)
- Engine Capacity
- 1200
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5E3-82110-80-00 Battery Assy |
5E3-82110-80-00 |
US $258.36 |
||
| replacements | |||||
|
01
|
01
907-9EY00-03-00
Battery (Yb16Al-A2)
|
907-9EY00-03-00 |
— | ||
|
01
|
01
BTG-CB16A-LA-00
Battery
|
BTG-CB16A-LA-00 |
— | ||
|
01
|
01
YB1-6ALA2-00-00
Bat Yb16Al-A2 (Cb16Al-A2) Yu
|
YB1-6ALA2-00-00 |
— | ||
|
02
|
02
1FK-82122-00-00 Seat, Battery |
1FK-82122-00-00 |
from US $23.80 |
||
|
03
|
03
1E6-82131-00-00 Band, Battery |
1E6-82131-00-00 |
from US $14.51 |
||
|
04
|
04
1FK-82112-00-00 Pipe, Breather |
1FK-82112-00-00 |
from US $13.76 |
||
|
05
|
05
1UT-82115-00-00
Wire, Plus Lead
|
1UT-82115-00-00 |
— | ||
|
06
|
06
1FK-82116-00-00 Wire, Minus Lead |
1FK-82116-00-00 |
from US $36.65 |
||
|
07
|
07
2EN-82510-00-00 Main Switch Assy |
2EN-82510-00-00 |
US $115.31 |
||
| replacement | |||||
|
07
|
07
2EN-82510-01-00
Main Switch Assy
|
2EN-82510-01-00 |
— | ||
|
08
|
08
97006-06012-00 Bolt |
97006-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
08
|
08
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
09
|
09
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
09
|
09
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
10
|
10
1FK-82530-00-00 Stop Switch Assy |
1FK-82530-00-00 |
from US $25.70 |
||
| replacement | |||||
|
10
|
10
1FK-82530-02-00
Stop Switch Assy
|
1FK-82530-02-00 |
— | ||
|
11
|
11
1FK-82539-00-00 Stay, Stop Switch |
1FK-82539-00-00 |
from US $2.97 |
||
|
12
|
12
2EN-82590-00-00
Wire Harness Assy
|
2EN-82590-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
42X-82151-20-00 Fuse (10A-Bl) |
42X-82151-20-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
42X-82151-00-00 Fuse (10A-Bl) |
42X-82151-00-00 |
from US $1.56 |
||
|
14
|
14
36Y-82151-00-00 Fuse (15A-Blue) |
36Y-82151-00-00 |
from US $2.98 |
||
|
15
|
15
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
15
|
15
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
16
|
16
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
16
|
16
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
17
|
17
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
17
|
17
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
18
|
18
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
18
|
18
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
19
|
19
1AE-82150-00-00 Fuse Holder Assy |
1AE-82150-00-00 |
from US $38.41 |
||
|
20
|
20
1AE-82151-00-00 Fuse (30A-Bl) |
1AE-82151-00-00 |
from US $1.66 |
||
|
21
|
21
36Y-81940-00-00 Starter Relay Assy |
36Y-81940-00-00 |
from US $87.73 |
||
|
22
|
22
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
22
|
22
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
22
|
22
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
23
|
23
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
24
|
24
42X-81960-A0-00
Rectifier & Regulator Assy
|
42X-81960-A0-00 |
— | ||
| replacement | |||||
|
24
|
24
42X-81960-A1-00 Rectifier & Regulator Assembly |
42X-81960-A1-00 |
from US $357.83 |
||
|
25
|
25
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
4U8-81980-M0-00 Diode Assy |
4U8-81980-M0-00 |
from US $57.89 |
||
|
28
|
28
41R-83350-71-00 Flasher Relay Assy |
41R-83350-71-00 |
from US $147.83 |
||
| replacement | |||||
|
28
|
28
41R-83350-72-00 Flasher Relay Assy |
41R-83350-72-00 |
from US $147.83 |
||
|
29
|
29
1FK-83371-02-00 Horn |
1FK-83371-02-00 |
from US $62.81 |
||
|
30
|
30
97006-06016-00 Bolt |
97006-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
30
|
30
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
31
|
31
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
31
|
31
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
