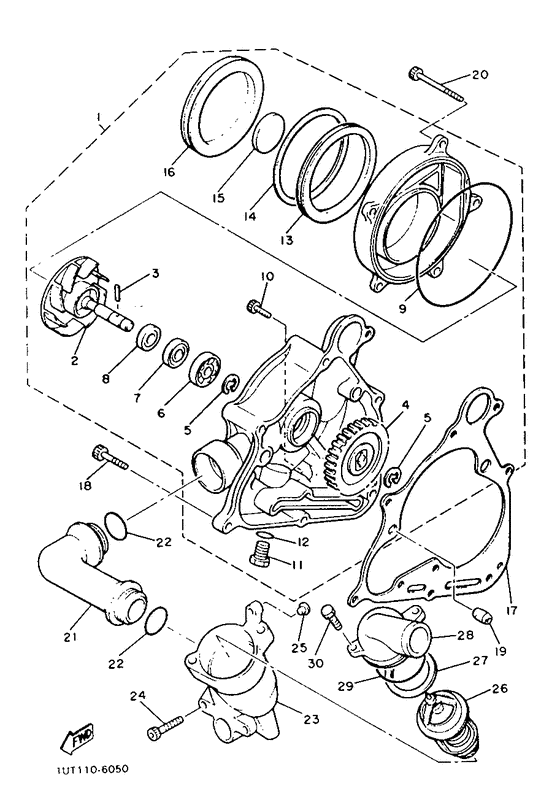

Pompe eau Diagram Yamaha VMX12 V-MAX
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2EN
- Sales region
- France (999)
- Engine Capacity
- 1200
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1FK-12420-00-00 Water Pump Assy |
1FK-12420-00-00 |
from US $436.48 |
||
| replacement | |||||
|
01
|
01
1FK-12420-10-00
Water Pump Assy
|
1FK-12420-10-00 |
— | ||
|
02
|
02
1FK-12450-00-00 Impeller Shaft Assy |
1FK-12450-00-00 |
from US $73.92 |
||
|
03
|
03
93603-14026-00 Pin, Dowel |
93603-14026-00 |
from US $1.98 |
||
|
04
|
04
26H-12459-00-00 Gear, Impeller Shaft (31T) |
26H-12459-00-00 |
from US $19.84 |
||
|
05
|
05
99009-10400-00 Circlip |
99009-10400-00 |
from US $1.34 |
||
|
06
|
06
933-06000-04-00 Bearing |
933-06000-04-00 |
from US $11.92 |
||
|
07
|
07
931-01100-90-00 Oil Seal (J10) |
931-01100-90-00 |
from US $2.98 |
||
|
08
|
08
11H-12438-00-00
Seal, Mechanical
|
11H-12438-00-00 |
— | ||
| replacement | |||||
|
08
|
08
11H-12438-10-00 Seal, Mechanical |
11H-12438-10-00 |
from US $20.18 |
||
|
09
|
09
93211-16591-00 O-Ring (26H) |
93211-16591-00 |
from US $4.82 |
||
|
10
|
10
913-16060-16-00
Bolt
|
913-16060-16-00 |
— | ||
| replacement | |||||
|
10
|
10
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
11
|
11
11H-13455-00-00 Plug, Straight Screw |
11H-13455-00-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.42 |
||
|
12
|
12
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
13
|
13
26H-15337-01-00 Damper 4 |
26H-15337-01-00 |
from US $12.27 |
||
|
14
|
14
90468-98132-00 Clip |
90468-98132-00 |
from US $9.78 |
||
|
15
|
15
26H-15338-00-00 Damper 5 |
26H-15338-00-00 |
from US $6.66 |
||
|
16
|
16
1FK-15428-00-00
Cover, Chain Case 2
|
1FK-15428-00-00 |
— | ||
|
17
|
17
26H-12449-00-00
Gasket, Water Pump
|
26H-12449-00-00 |
— | ||
| replacement | |||||
|
17
|
17
3JP-12449-02-00 Gasket, Water Pump |
3JP-12449-02-00 |
from US $14.17 |
||
|
18
|
18
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
19
|
19
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
19
|
19
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
19
|
19
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
20
|
20
91316-06065-00 Bolt (431) |
91316-06065-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
91317-06065-00 Bolt |
91317-06065-00 |
from US $1.50 |
||
|
21
|
21
1FK-12446-00-00 Joint |
1FK-12446-00-00 |
from US $53.19 |
||
|
22
|
22
932-10271-94-00
O-Ring
|
932-10271-94-00 |
— | ||
| replacement | |||||
|
22
|
22
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $3.64 |
||
|
23
|
23
1FK-12417-00-00
Housing, Thermostat
|
1FK-12417-00-00 |
— | ||
|
24
|
24
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
24
|
24
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
25
|
25
90338-06134-00 Plug |
90338-06134-00 |
from US $2.69 |
||
|
26
|
26
11H-12410-00-00 Thermostat Assy |
11H-12410-00-00 |
from US $73.87 |
||
| replacements | |||||
|
26
|
26
999-99030-66-00 Thermostat Assy |
999-99030-66-00 |
from US $69.41 |
||
|
26
|
26
11H-12410-01-00 Thermostat Assy |
11H-12410-01-00 |
from US $88.70 |
||
|
27
|
27
11H-12412-00-00 Seal, Thermostat (11H-12412-01) |
11H-12412-00-00 |
from US $6.66 |
||
|
28
|
28
26H-12413-00-00 Cover, Thermostat |
26H-12413-00-00 |
from US $24.32 |
||
|
29
|
29
932-10455-11-00
O-Ring
|
932-10455-11-00 |
— | ||
| replacement | |||||
|
29
|
29
932-10437-13-00 O-Ring(1Ey) |
932-10437-13-00 |
from US $1.70 |
||
|
30
|
30
90110-06084-00 Bolt, Hexagon Socket Head |
90110-06084-00 |
from US $2.55 |
||
