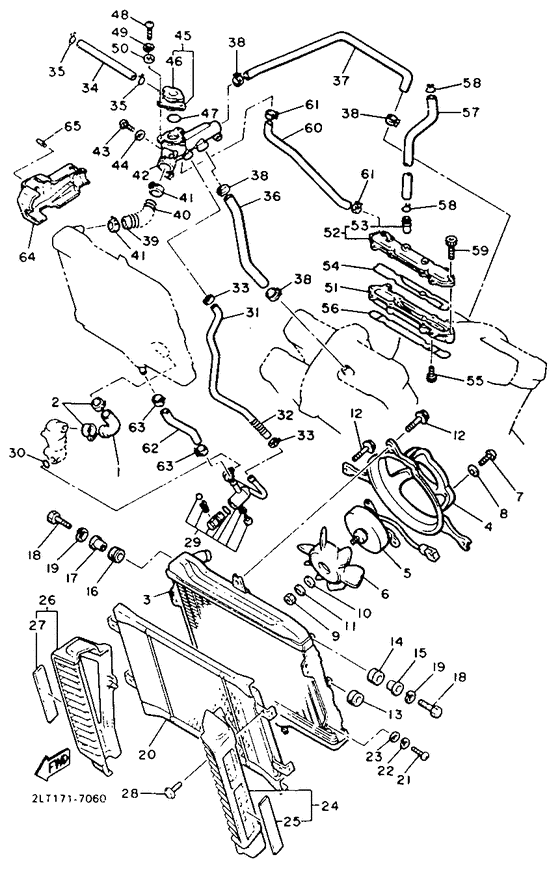

Radiator & hose Diagram Yamaha VMX12 V-MAX
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2EN
- Sales region
- France (999)
- Engine Capacity
- 1200
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1FK-12578-00-00 Hose 3 |
1FK-12578-00-00 |
from US $24.17 |
||
|
02
|
02
90460-38241-00 Hose Clamp Assy |
90460-38241-00 |
from US $4.68 |
||
| replacement | |||||
|
02
|
02
90450-38040-00 Hose Clamp Assy |
90450-38040-00 |
from US $4.68 |
||
|
03
|
03
1FK-12461-00-00 Radiator Comp |
1FK-12461-00-00 |
from US $951.49 |
||
|
04
|
04
1FK-12620-00-00 Air Shroud Assy |
1FK-12620-00-00 |
from US $163.03 |
||
|
05
|
05
26H-12630-00-00 Motor Assy |
26H-12630-00-00 |
from US $296.73 |
||
|
06
|
06
26H-12611-00-00 Fan |
26H-12611-00-00 |
from US $87.87 |
||
|
07
|
07
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
07
|
07
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
07
|
07
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.50 |
||
|
08
|
08
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
08
|
08
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
08
|
08
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
09
|
09
953-01056-00-00
Nut
|
953-01056-00-00 |
— | ||
| replacement | |||||
|
09
|
09
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
10
|
10
11H-12673-00-00 Washer |
11H-12673-00-00 |
from US $1.53 |
||
|
11
|
11
92990-05300-00 Washer, Internal Tooth |
92990-05300-00 |
from US $1.56 |
||
|
12
|
12
11H-12675-00-00 Bolt, With Washer |
11H-12675-00-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.35 |
||
|
13
|
13
90480-14052-00 Grommet |
90480-14052-00 |
from US $1.35 |
||
|
14
|
14
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
|
15
|
15
90387-07037-00 Collar |
90387-07037-00 |
from US $3.54 |
||
|
16
|
16
90480-19283-00 Grommet |
90480-19283-00 |
from US $4.11 |
||
|
17
|
17
90387-06033-00 Collar |
90387-06033-00 |
from US $3.83 |
||
|
18
|
18
970-16060-20-00
Bolt(84J)
|
970-16060-20-00 |
— | ||
| replacement | |||||
|
18
|
18
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
19
|
19
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
20
|
20
1FK-12467-00-00 Cover, Radiator |
1FK-12467-00-00 |
from US $132.38 |
||
|
21
|
21
98506-05012-00 Screw, Pan Head |
98506-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
21
|
21
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
21
|
21
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
22
|
22
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
23
|
23
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
24
|
24
1FK-1240J-00-00 Radiator Cover Ass'y |
1FK-1240J-00-00 |
from US $140.92 |
||
|
25
|
25
1FK-12535-00-00 Plate |
1FK-12535-00-00 |
from US $23.94 |
||
|
26
|
26
1FK-1240K-00-00 Radiator Cover Assy 2 |
1FK-1240K-00-00 |
from US $140.92 |
||
|
27
|
27
1FK-12537-00-00 Plate 2 |
1FK-12537-00-00 |
from US $23.94 |
||
|
28
|
28
90159-05073-00 Screw, With Washer |
90159-05073-00 |
from US $2.69 |
||
| replacement | |||||
|
28
|
28
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
29
|
29
1FK-12560-00-00 Drain Cock Assy |
1FK-12560-00-00 |
from US $87.34 |
||
| replacement | |||||
|
29
|
29
1FK-12560-01-00 Drain Cock Assy |
1FK-12560-01-00 |
from US $103.21 |
||
|
30
|
30
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
30
|
30
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
31
|
31
1FK-12566-00-00 Pipe, Bypass |
1FK-12566-00-00 |
from US $51.26 |
||
|
32
|
32
90501-106A4-00 Spring, Compression |
90501-106A4-00 |
from US $13.91 |
||
|
33
|
33
90460-15227-00 Clamp, Hose |
90460-15227-00 |
from US $9.92 |
||
|
34
|
34
90445-09112-00 Hose (L675) |
90445-09112-00 |
from US $19.84 |
||
| replacement | |||||
|
34
|
34
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
35
|
35
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
36
|
36
1FK-12576-00-00 Hose 1 |
1FK-12576-00-00 |
from US $36.75 |
||
|
37
|
37
1FK-12577-00-00 Hose 2 |
1FK-12577-00-00 |
from US $39.65 |
||
|
38
|
38
90467-23067-00 Clip |
90467-23067-00 |
from US $1.84 |
||
|
39
|
39
1FK-12579-00-00 Hose 4 |
1FK-12579-00-00 |
from US $29.89 |
||
|
40
|
40
90501-106A5-00
Spring, Compression
|
90501-106A5-00 |
— | ||
|
41
|
41
90460-38241-00 Hose Clamp Assy |
90460-38241-00 |
from US $4.68 |
||
| replacement | |||||
|
41
|
41
90450-38040-00 Hose Clamp Assy |
90450-38040-00 |
from US $4.68 |
||
|
42
|
42
1FK-12479-01-00 Joint |
1FK-12479-01-00 |
from US $221.80 |
||
|
43
|
43
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
43
|
43
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
44
|
44
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
44
|
44
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
44
|
44
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
44
|
44
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
45
|
45
1FK-12590-00-00 Support, Filler Neck |
1FK-12590-00-00 |
from US $66.98 |
||
| replacement | |||||
|
45
|
45
1FK-12591-00-00 Support, Filler Neck |
1FK-12591-00-00 |
from US $66.98 |
||
|
46
|
46
33M-12462-00-00 Cap, Radiator |
33M-12462-00-00 |
from US $35.56 |
||
| replacement | |||||
|
46
|
46
1B3-12462-00-00 Cap, Radiator |
1B3-12462-00-00 |
from US $38.78 |
||
|
47
|
47
932-10271-94-00
O-Ring
|
932-10271-94-00 |
— | ||
| replacement | |||||
|
47
|
47
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $3.64 |
||
|
48
|
48
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
48
|
48
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
49
|
49
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
49
|
49
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
50
|
50
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
50
|
50
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
50
|
50
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
50
|
50
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
51
|
51
1FK-1246A-01-00 Cover 1 |
1FK-1246A-01-00 |
US $97.31 |
||
|
52
|
52
1FK-1246E-01-00 Cover 2 |
1FK-1246E-01-00 |
US $97.22 |
||
|
53
|
53
26H-11116-00-00
Joint, Breather
|
26H-11116-00-00 |
— | ||
|
54
|
54
26H-12428-00-00 Gasket, Housing Cover 2 |
26H-12428-00-00 |
from US $6.96 |
||
|
55
|
55
913-16060-16-00
Bolt
|
913-16060-16-00 |
— | ||
| replacement | |||||
|
55
|
55
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
56
|
56
26H-12427-00-00 Gasket, Housing Cover 1 |
26H-12427-00-00 |
from US $13.46 |
||
|
57
|
57
1FK-11166-00-00 Pipe, Breather 1 |
1FK-11166-00-00 |
from US $8.94 |
||
|
58
|
58
90467-14015-00 Clip |
90467-14015-00 |
from US $1.70 |
||
|
59
|
59
913-16060-40-00
Bolt
|
913-16060-40-00 |
— | ||
| replacement | |||||
|
59
|
59
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
60
|
60
1FK-12589-00-00 Hose 6 |
1FK-12589-00-00 |
from US $23.80 |
||
|
61
|
61
90467-11090-00 Clip |
90467-11090-00 |
from US $1.28 |
||
| replacement | |||||
|
61
|
61
90467-10135-00 Clip |
90467-10135-00 |
from US $1.28 |
||
|
62
|
62
26H-12588-01-00 Hose 5 |
26H-12588-01-00 |
from US $12.24 |
||
|
63
|
63
90460-15227-00 Clamp, Hose |
90460-15227-00 |
from US $9.92 |
||
|
64
|
64
1FK-1246K-00-00 Cover 7 |
1FK-1246K-00-00 |
from US $49.77 |
||
|
65
|
65
90338-05151-00 Plug |
90338-05151-00 |
from US $2.81 |
||
