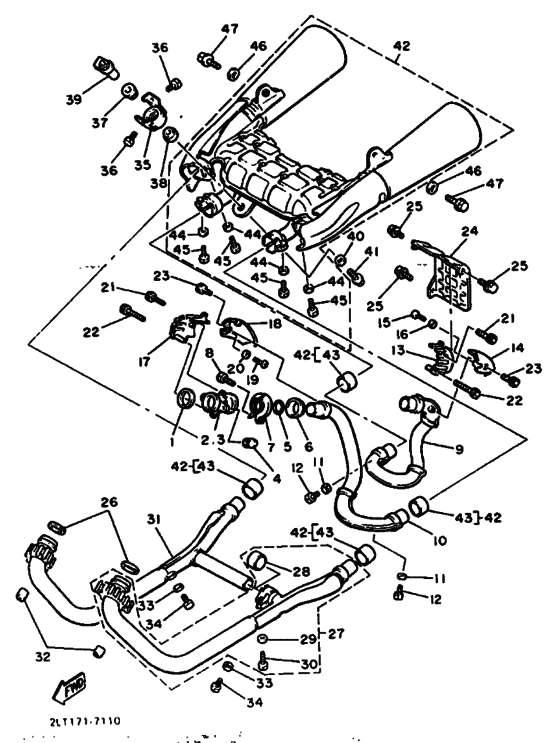

Exhaust Diagram Yamaha VMX12 V-MAX
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2LT0
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90430-38054-00 Gasket, Exhaust Pipe |
90430-38054-00 |
from US $6.66 |
||
| replacement | |||||
|
1
|
1
3GD-14613-00-00 Gasket, Exhaust Pipe |
3GD-14613-00-00 |
from US $6.40 |
||
|
2
|
2
1FK-14615-00-00 Joint, Exhaust 1 |
1FK-14615-00-00 |
from US $92.54 |
||
|
3
|
3
1FK-14625-00-00 Joint, Exhaust 2 |
1FK-14625-00-00 |
from US $92.54 |
||
|
4
|
4
90179-08507-00 Nut |
90179-08507-00 |
from US $3.83 |
||
| replacement | |||||
|
4
|
4
90179-08673-00 Nut |
90179-08673-00 |
from US $4.16 |
||
|
5
|
5
1FK-14613-00-00 Gasket, Exhaust Pipe |
1FK-14613-00-00 |
from US $17.43 |
||
|
6
|
6
1FK-14618-00-00 Ring, Stopper |
1FK-14618-00-00 |
from US $15.77 |
||
|
7
|
7
26H-14715-01-00 Band, Muffler |
26H-14715-01-00 |
from US $54.31 |
||
|
8
|
8
90110-06054-00 Bolt, Hexagon Socket Head |
90110-06054-00 |
from US $3.24 |
||
|
9
|
9
1FK-14611-00-00 Pipe, Exhaust 1 |
1FK-14611-00-00 |
from US $255.28 |
||
|
10
|
10
1FK-14631-00-00 Pipe, Exhaust 3 |
1FK-14631-00-00 |
from US $240.66 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
12
|
12
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
13
|
13
1FK-14603-00-00 Cover 1 |
1FK-14603-00-00 |
from US $103.98 |
||
|
14
|
14
1FK-1465R-00-00 Plate, Protector 1 |
1FK-1465R-00-00 |
from US $69.36 |
||
|
15
|
15
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
15
|
15
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
16
|
16
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
16
|
16
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
16
|
16
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
17
|
17
1FK-14624-00-00 Cover, Exhaust |
1FK-14624-00-00 |
US $126.09 |
||
|
18
|
18
1FK-1465T-00-00 Plate, Protector 2 |
1FK-1465T-00-00 |
from US $50.62 |
||
|
19
|
19
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
19
|
19
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
20
|
20
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
20
|
20
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
20
|
20
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
21
|
21
90110-05107-00 Bolt, Hexagon Socket Head |
90110-05107-00 |
US $1.56 |
||
| replacement | |||||
|
21
|
21
91317-05025-00 Bolt |
91317-05025-00 |
from US $1.56 |
||
|
22
|
22
90110-05108-00
Bolt
|
90110-05108-00 |
— | ||
| replacement | |||||
|
22
|
22
91380-05045-00
Bolt,socket
|
91380-05045-00 |
— | ||
|
23
|
23
90110-05106-00 Bolt, Hexagon Socket Head |
90110-05106-00 |
US $1.56 |
||
| replacement | |||||
|
23
|
23
91317-05008-00 Bolt |
91317-05008-00 |
from US $1.56 |
||
|
24
|
24
1FK-14604-00-00
Cover, Air 1
|
1FK-14604-00-00 |
— | ||
| replacement | |||||
|
24
|
24
3UF-14604-01-00
Cover, Air 1
|
3UF-14604-01-00 |
— | ||
|
25
|
25
90119-06115-00 Bolt, Flange |
90119-06115-00 |
from US $2.77 |
||
|
26
|
26
90430-38054-00 Gasket, Exhaust Pipe |
90430-38054-00 |
from US $6.66 |
||
| replacement | |||||
|
26
|
26
3GD-14613-00-00 Gasket, Exhaust Pipe |
3GD-14613-00-00 |
from US $6.40 |
||
|
27
|
27
1FK-14610-00-00 Exhaust Pipe Assy 1 |
1FK-14610-00-00 |
from US $498.29 |
||
| replacement | |||||
|
27
|
27
1FK-14610-11-00 Exhaust Pipe Assy 1 |
1FK-14610-11-00 |
from US $498.29 |
||
|
28
|
28
1FK-14755-00-00 Gasket, Silencer |
1FK-14755-00-00 |
from US $23.35 |
||
| replacement | |||||
|
28
|
28
3XW-14755-00-00 Gasket, Silencer |
3XW-14755-00-00 |
from US $26.78 |
||
|
29
|
29
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
30
|
30
97311-08025-00 Bolt |
97311-08025-00 |
from US $3.54 |
||
| replacement | |||||
|
30
|
30
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
31
|
31
1FK-14620-00-00 Exhaust Pipe Assy 2 |
1FK-14620-00-00 |
from US $498.29 |
||
| replacement | |||||
|
31
|
31
1FK-14620-01-00 Exhaust Pipe Assy 2 |
1FK-14620-01-00 |
from US $498.29 |
||
|
32
|
32
90179-08507-00 Nut |
90179-08507-00 |
from US $3.83 |
||
| replacement | |||||
|
32
|
32
90179-08673-00 Nut |
90179-08673-00 |
from US $4.16 |
||
|
33
|
33
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
34
|
34
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
35
|
35
1FK-14771-00-00 Stay, Muffler 1 |
1FK-14771-00-00 |
US $65.66 |
||
|
36
|
36
97311-06010-00 Bolt |
97311-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
36
|
36
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
37
|
37
36Y-14747-00-00 Damper, Muffler |
36Y-14747-00-00 |
from US $16.58 |
||
|
38
|
38
1FK-14747-00-00 Damper, Muffler |
1FK-14747-00-00 |
US $32.76 |
||
|
39
|
39
1FK-14638-00-00 Collar |
1FK-14638-00-00 |
from US $13.95 |
||
|
40
|
40
90201-10669-00 Washer, Plate |
90201-10669-00 |
from US $1.39 |
||
|
41
|
41
97011-10045-00 Bolt |
97011-10045-00 |
from US $3.89 |
||
| replacement | |||||
|
41
|
41
97017-10045-00 Bolt |
97017-10045-00 |
from US $4.53 |
||
|
42
|
42
1UT-14710-00-00 Muffler Assy 1 |
1UT-14710-00-00 |
US $2,095.68 |
||
| replacements | |||||
|
42
|
42
1UT-14710-12-00
Muffler Assy 1
|
1UT-14710-12-00 |
— | ||
|
42
|
42
1UT-14710-14-00
Muffler Assembly 1
|
1UT-14710-14-00 |
— | ||
|
43
|
43
1FK-14755-00-00 Gasket, Silencer |
1FK-14755-00-00 |
from US $23.35 |
||
| replacement | |||||
|
43
|
43
3XW-14755-00-00 Gasket, Silencer |
3XW-14755-00-00 |
from US $26.78 |
||
|
44
|
44
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
44
|
44
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
45
|
45
97311-08025-00 Bolt |
97311-08025-00 |
from US $3.54 |
||
| replacement | |||||
|
45
|
45
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
46
|
46
90201-10742-00 Washer, Plate |
90201-10742-00 |
from US $3.83 |
||
|
47
|
47
901-05102-71-00 Bolt, Flange |
901-05102-71-00 |
from US $8.50 |
||
