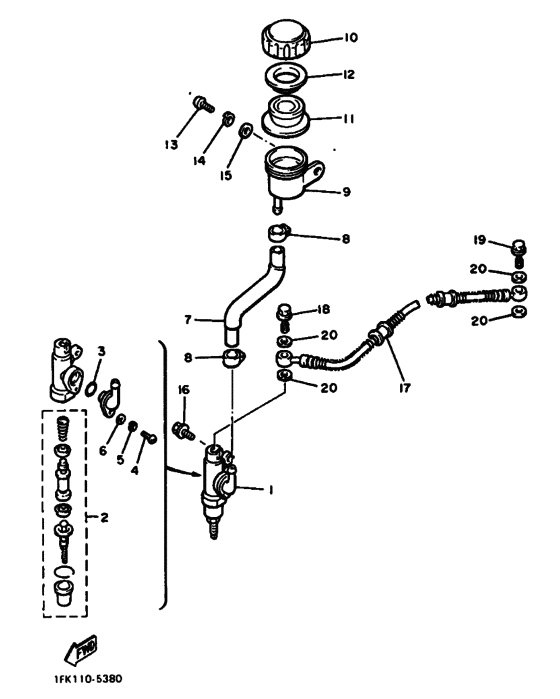

Rear master cylinder Diagram Yamaha VMX12 V-MAX
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2LT0
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1FK-25850-50-00 Master Cylinder Assy |
1FK-25850-50-00 |
from US $180.99 |
||
|
2
|
2
1FK-W0042-50-00 Cylinder Kit, Master |
1FK-W0042-50-00 |
from US $76.09 |
||
|
3
|
3
93210-15620-00 O-Ring |
93210-15620-00 |
from US $1.39 |
||
| replacement | |||||
|
3
|
3
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.52 |
||
|
4
|
4
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
5
|
5
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
6
|
6
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
7
|
7
1FK-25895-00-00
Hose, Reservoir
|
1FK-25895-00-00 |
— | ||
|
8
|
8
90467-14057-00 Clip |
90467-14057-00 |
from US $1.28 |
||
|
9
|
9
31A-25894-01-00 Tank, Reservoir |
31A-25894-01-00 |
from US $21.17 |
||
|
10
|
10
1A1-25852-00-00 Cap, Reservoir |
1A1-25852-00-00 |
from US $7.23 |
||
| replacement | |||||
|
10
|
10
2KF-25852-50-00 Cap, Reservoir |
2KF-25852-50-00 |
from US $8.05 |
||
|
11
|
11
360-25854-00-00 Diaphragm, Reservoir |
360-25854-00-00 |
from US $15.58 |
||
| replacement | |||||
|
11
|
11
360-25854-01-00 Gasket, Diaphragm |
360-25854-01-00 |
from US $7.08 |
||
|
12
|
12
360-25855-01-00 Bush,diaphragm |
360-25855-01-00 |
from US $16.43 |
||
| replacement | |||||
|
12
|
12
2GU-25855-00-00 Bush,diaphragm |
2GU-25855-00-00 |
from US $11.80 |
||
|
13
|
13
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
14
|
14
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
92901-06200-00 Washer, Plain92901-06200 |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
92990-06200-00 Washer, Plain92901-06200 |
92990-06200-00 |
from US $1.18 |
||
|
16
|
16
95026-08020-00 Bolt, Flange |
95026-08020-00 |
from US $1.28 |
||
| replacements | |||||
|
16
|
16
90105-081A1-00 Bolt, Washer Based(3Jp) |
90105-081A1-00 |
from US $2.77 |
||
|
16
|
16
95027-08020-00 Bolt, Flange |
95027-08020-00 |
from US $1.39 |
||
|
17
|
17
1FK-25874-00-00
Hose, Brake
|
1FK-25874-00-00 |
— | ||
| replacements | |||||
|
17
|
17
999-99027-72-00
Hose, Brake (1Fk)
|
999-99027-72-00 |
— | ||
|
17
|
17
1FK-25874-01-00
Brke,hose
|
1FK-25874-01-00 |
— | ||
|
18
|
18
904-01100-96-00
Bolt, Union
|
904-01100-96-00 |
— | ||
| replacement | |||||
|
18
|
18
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
19
|
19
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
19
|
19
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
20
|
20
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
20
|
20
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
