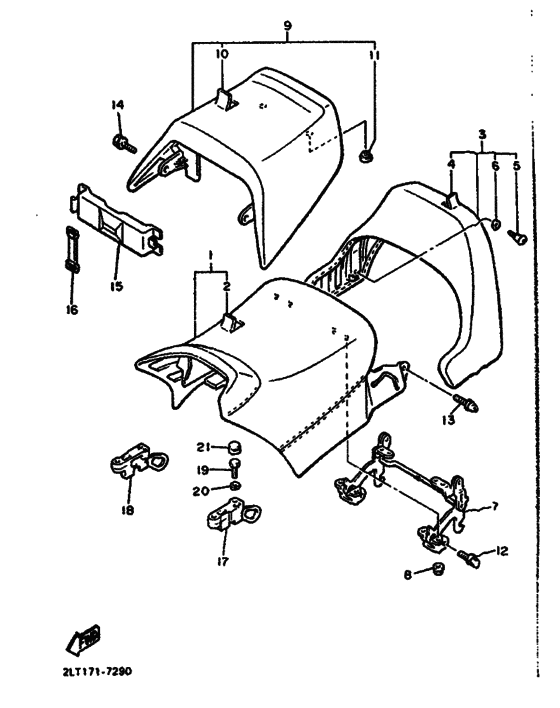

Seat Diagram Yamaha VMX12 V-MAX
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2LT0
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2HY-24771-00-00 Semi-Double Seat Assemblyblack/gray |
2HY-24771-00-00 |
US $473.35 |
||
|
2
|
2
2HY-24711-00-00 Cover, Single Seatblack/gray |
2HY-24711-00-00 |
US $197.80 |
||
|
3
|
3
1FK-24790-00-00
Seat Back Assy
|
1FK-24790-00-00 |
— | ||
|
4
|
4
1FK-24791-00-00
Cover, Seat Back
|
1FK-24791-00-00 |
— | ||
|
5
|
5
1FK-2476F-00-00 Pin, Guide |
1FK-2476F-00-00 |
from US $8.78 |
||
|
6
|
6
1FK-24736-00-00 Washer |
1FK-24736-00-00 |
from US $4.39 |
||
|
7
|
7
1FK-24772-00-00 Hinge Ass'y |
1FK-24772-00-00 |
US $249.97 |
||
|
8
|
8
95706-06500-00 Nut, With Washer |
95706-06500-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
9
|
9
2HY-24750-00-00
Tandem Seat Assembly
black/gray |
2HY-24750-00-00 |
— | ||
|
10
|
10
2HY-24751-00-00 Cover, Tandem Seatblack/gray |
2HY-24751-00-00 |
US $181.10 |
||
|
11
|
11
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.36 |
||
|
12
|
12
956-26060-12-00
Bolt, Flange
|
956-26060-12-00 |
— | ||
|
13
|
13
901-59060-71-00
Screw, With Washer
|
901-59060-71-00 |
— | ||
| replacements | |||||
|
13
|
13
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
13
|
13
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
14
|
14
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
14
|
14
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
15
|
15
1FK-2473T-00-00
Lid 1
|
1FK-2473T-00-00 |
— | ||
|
16
|
16
5H9-21376-00-00 Band, Tool |
5H9-21376-00-00 |
from US $4.57 |
||
|
17
|
17
1FK-24760-00-00 Seat Lever Assy |
1FK-24760-00-00 |
from US $45.05 |
||
|
18
|
18
1FK-24780-00-00 Seat Lock Assy |
1FK-24780-00-00 |
from US $35.03 |
||
|
19
|
19
97001-06012-00 Bolt, Hexagon |
97001-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
19
|
19
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
19
|
19
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
20
|
20
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
5K0-28349-50-00 Cap |
5K0-28349-50-00 |
US $19.78 |
||
