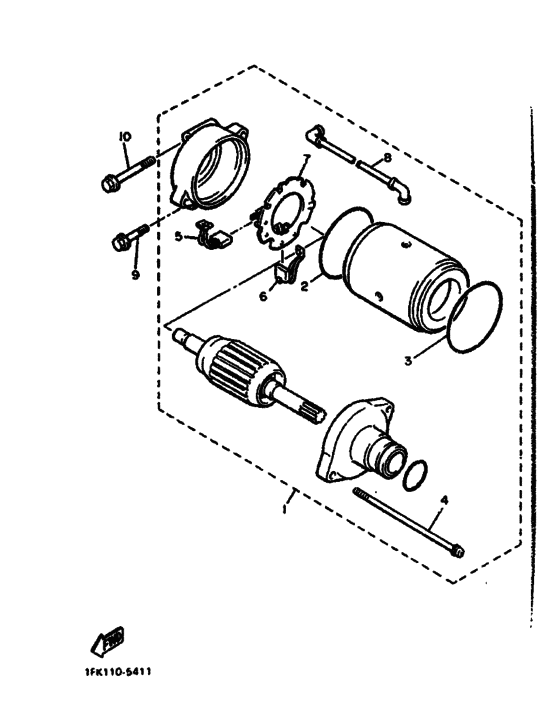

Starting motor Diagram Yamaha VMX12 V-MAX
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2LT0
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1FK-81800-60-00 Starting Motor Assy |
1FK-81800-60-00 |
from US $684.31 |
||
| replacement | |||||
|
1
|
1
1FK-81890-00-00 Starting Motor Unit |
1FK-81890-00-00 |
from US $777.48 |
||
|
2
|
2
26H-81847-00-00
O-Ring
|
26H-81847-00-00 |
— | ||
| replacement | |||||
|
2
|
2
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
3
|
3
371-81847-00-00
O-Ring
|
371-81847-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
22U-81826-00-00
Bolt
|
22U-81826-00-00 |
— | ||
|
5
|
5
371-81811-20-00 Brush 1 |
371-81811-20-00 |
from US $26.33 |
||
|
6
|
6
371-81812-20-00 Brush 2 |
371-81812-20-00 |
from US $26.33 |
||
|
7
|
7
1J7-81840-60-00
Brush Holder Assembly
|
1J7-81840-60-00 |
— | ||
|
8
|
8
1FK-81815-00-00 Cord, Starter Motor |
1FK-81815-00-00 |
from US $61.25 |
||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
95816-06025-00 Bolt, Flange (20X) |
95816-06025-00 |
US $1.07 |
||
| replacements | |||||
|
9
|
9
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
9
|
9
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
10
|
10
95826-06055-00 Bolt, Flange |
95826-06055-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
95817-06055-00 Bolt, Flange |
95817-06055-00 |
from US $1.56 |
||
