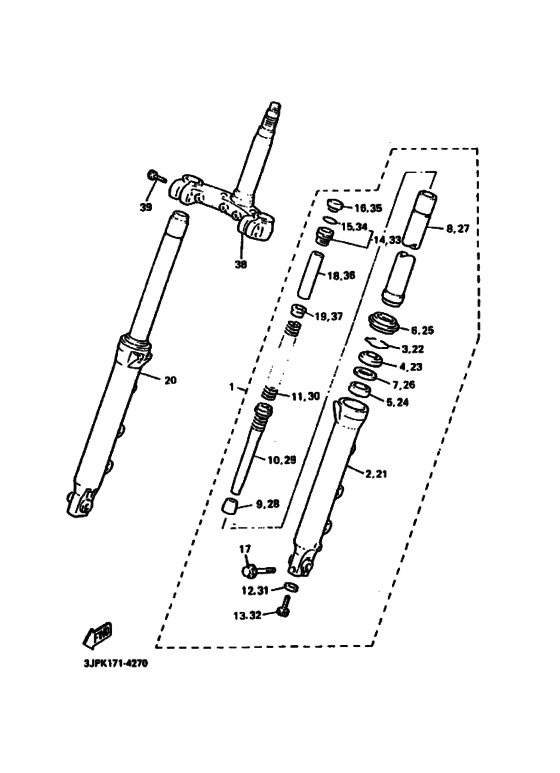

Front fork Diagram Yamaha VMX12 V-MAX
- Year
- 1995
- Colour
- Reddish Yellow Cocktail 1 (RYC1; 0251)
- Model code
- 3JPK
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3LR-23102-00-00
Front Fork Assy (L.h)
|
3LR-23102-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3LR-23102-10-00 Front Fork Assy (L.h) |
3LR-23102-10-00 |
US $843.05 |
||
|
2
|
2
3LR-23126-00-00 Tube, Outer (L.h) |
3LR-23126-00-00 |
US $628.70 |
||
|
3
|
3
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $2 |
||
|
4
|
4
3GM-23145-00-00
Oil Seal
|
3GM-23145-00-00 |
— | ||
| replacements | |||||
|
4
|
4
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $11.92 |
||
|
4
|
4
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $14.88 |
||
|
5
|
5
3GM-23125-00-00
Metal, Slide 1
|
3GM-23125-00-00 |
— | ||
| replacement | |||||
|
5
|
5
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $18.56 |
||
|
6
|
6
3GM-23144-00-00
Seal, Dust
|
3GM-23144-00-00 |
— | ||
| replacement | |||||
|
6
|
6
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $10.58 |
||
|
7
|
7
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $8.36 |
||
|
8
|
8
3LR-23110-00-00
Inner Tube Comp.1
C0MP. 1 |
3LR-23110-00-00 |
— | ||
| replacement | |||||
|
8
|
8
3LR-23110-01-00 Inner Tube Comp. 1C0MP. 1 |
3LR-23110-01-00 |
from US $508.77 |
||
|
9
|
9
3GM-23173-00-00 Spindle, Taper |
3GM-23173-00-00 |
from US $22.39 |
||
|
10
|
10
3LR-23170-00-00 Cylinder Comp., Front Fork |
3LR-23170-00-00 |
US $380.75 |
||
|
11
|
11
3LR-23141-00-00 Spring, Front Fork |
3LR-23141-00-00 |
from US $47.32 |
||
|
12
|
12
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
13
|
13
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $13.74 |
||
|
14
|
14
3LR-23111-00-00 Bolt, Cap |
3LR-23111-00-00 |
from US $124.07 |
||
|
15
|
15
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
16
|
16
3LR-23168-00-00 Cap, Front Fork |
3LR-23168-00-00 |
from US $19.69 |
||
|
17
|
17
5X4-23181-10-00
Bolt, Axle Holder
|
5X4-23181-10-00 |
— | ||
|
18
|
18
3YF-23118-00-00 Spacer |
3YF-23118-00-00 |
from US $13.74 |
||
|
19
|
19
3GM-23142-00-00
Seat, Spring Upper
|
3GM-23142-00-00 |
— | ||
| replacement | |||||
|
19
|
19
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
20
|
20
3LR-23103-00-00
Front Fork Assy (R.h)
|
3LR-23103-00-00 |
— | ||
| replacement | |||||
|
20
|
20
3LR-23103-10-00 Front Fork Assy (R.h) |
3LR-23103-10-00 |
US $843.05 |
||
|
21
|
21
3LR-23136-00-00 Tube, Outer 2 |
3LR-23136-00-00 |
US $616.39 |
||
|
22
|
22
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $2 |
||
|
23
|
23
3GM-23145-00-00
Oil Seal
|
3GM-23145-00-00 |
— | ||
| replacements | |||||
|
23
|
23
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $11.92 |
||
|
23
|
23
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $14.88 |
||
|
24
|
24
3GM-23125-00-00
Metal, Slide 1
|
3GM-23125-00-00 |
— | ||
| replacement | |||||
|
24
|
24
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $18.56 |
||
|
25
|
25
3GM-23144-00-00
Seal, Dust
|
3GM-23144-00-00 |
— | ||
| replacement | |||||
|
25
|
25
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $10.58 |
||
|
26
|
26
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $8.36 |
||
|
27
|
27
3LR-23110-00-00
Inner Tube Comp.1
|
3LR-23110-00-00 |
— | ||
| replacement | |||||
|
27
|
27
3LR-23110-01-00 Inner Tube Comp. 1 |
3LR-23110-01-00 |
from US $508.77 |
||
|
28
|
28
3GM-23173-00-00 Spindle, Taper |
3GM-23173-00-00 |
from US $22.39 |
||
|
29
|
29
3LR-23170-00-00 Cylinder Comp., Front Fork |
3LR-23170-00-00 |
US $380.75 |
||
|
30
|
30
3LR-23141-00-00 Spring, Front Fork |
3LR-23141-00-00 |
from US $47.32 |
||
|
31
|
31
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
32
|
32
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $13.74 |
||
|
33
|
33
3LR-23111-00-00 Bolt, Cap |
3LR-23111-00-00 |
from US $124.07 |
||
|
34
|
34
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
35
|
35
3LR-23168-00-00 Cap, Front Fork |
3LR-23168-00-00 |
from US $19.69 |
||
|
36
|
36
3YF-23118-00-00 Spacer |
3YF-23118-00-00 |
from US $13.74 |
||
|
37
|
37
3GM-23142-00-00
Seat, Spring Upper
|
3GM-23142-00-00 |
— | ||
| replacement | |||||
|
37
|
37
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
38
|
38
3LR-23340-00-00
Under Bracket Comp
|
3LR-23340-00-00 |
— | ||
| replacement | |||||
|
38
|
38
3LR-23340-10-00 Under Bracket Comp |
3LR-23340-10-00 |
from US $422.50 |
||
|
39
|
39
1FK-23346-00-00
Bolt, Hexagon Socket Head
|
1FK-23346-00-00 |
— | ||
| replacement | |||||
|
39
|
39
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.07 |
||
