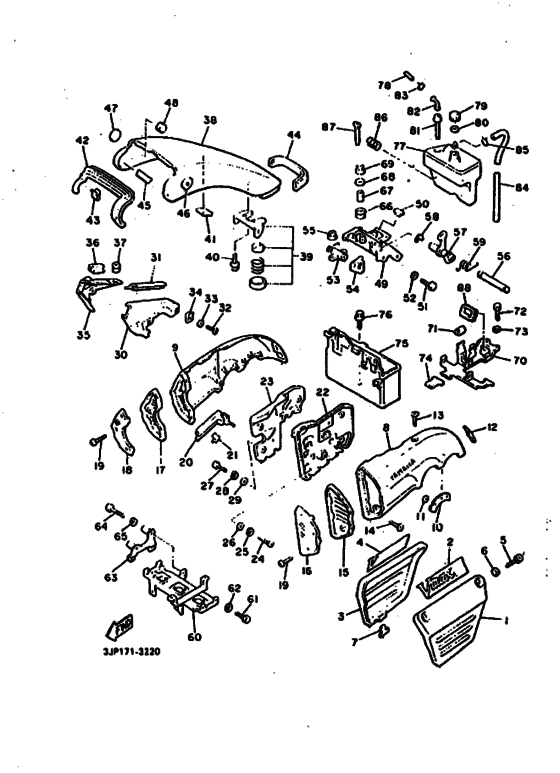

Side cover Diagram Yamaha VMX12 V-MAX
- Year
- 1995
- Colour
- Reddish Yellow Cocktail 1 (RYC1; 0251)
- Model code
- 3JPK
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UT-21711-01-00
Cover, Side 1
|
1UT-21711-01-00 |
— | ||
|
2
|
2
1UT-21783-00-00
Emblem 3
|
1UT-21783-00-00 |
— | ||
|
3
|
3
1UT-21721-01-00
Cover, Side 2
|
1UT-21721-01-00 |
— | ||
|
4
|
4
1UT-21784-00-00 Emblem 4 |
1UT-21784-00-00 |
from US $64.11 |
||
|
5
|
5
90110-06102-00 Bolt, Hexagon Socket Head |
90110-06102-00 |
from US $1.70 |
||
|
6
|
6
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
7
|
7
2N4-21717-00-00 Damper |
2N4-21717-00-00 |
from US $3.40 |
||
|
8
|
8
1FK-21731-00-00
Cover, Side 3
|
1FK-21731-00-00 |
— | ||
|
9
|
9
1FK-21741-00-00 Cover, Side 4 |
1FK-21741-00-00 |
from US $345.72 |
||
|
10
|
10
1FK-21778-00-00 Damper, Locating 1 |
1FK-21778-00-00 |
from US $8.93 |
||
|
11
|
11
90183-06008-00 Nut, Spring |
90183-06008-00 |
from US $1.98 |
||
|
12
|
12
1FK-21747-00-00 Damper |
1FK-21747-00-00 |
from US $21.11 |
||
|
13
|
13
92014-06012-00 Bolt, Button Head |
92014-06012-00 |
from US $1.07 |
||
|
14
|
14
90111-06004-00 Bolt, Button Head |
90111-06004-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
920-14060-25-00 Bolt, Button Head |
920-14060-25-00 |
from US $2.13 |
||
|
15
|
15
1FK-2172G-00-00 Panel 3 |
1FK-2172G-00-00 |
from US $10.19 |
||
|
16
|
16
1FK-2837N-00-00 Grill, Air Intake 1 |
1FK-2837N-00-00 |
from US $26.99 |
||
|
17
|
17
1FK-2172H-00-00 Panel 4 |
1FK-2172H-00-00 |
from US $11.38 |
||
|
18
|
18
1FK-2837R-00-00 Grill, Air Intake 2 |
1FK-2837R-00-00 |
from US $32.71 |
||
|
19
|
19
92017-05012-00 Bolt, Button |
92017-05012-00 |
from US $1.56 |
||
|
20
|
20
1FK-2172W-00-00 Cover |
1FK-2172W-00-00 |
from US $35.78 |
||
|
21
|
21
904-68031-76-00
Clip
|
904-68031-76-00 |
— | ||
|
22
|
22
1FK-2172A-01-00 Panel 1 |
1FK-2172A-01-00 |
from US $32.87 |
||
|
23
|
23
1FK-2172F-00-00 Panel 2 |
1FK-2172F-00-00 |
from US $32.87 |
||
|
24
|
24
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
24
|
24
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
25
|
25
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
26
|
26
929-07066-20-00 Washer, Plate |
929-07066-20-00 |
US $0.50 |
||
|
27
|
27
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
28
|
28
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
29
|
29
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
30
|
30
1FK-2171E-00-00 Cover, Side 5 |
1FK-2171E-00-00 |
from US $62.59 |
||
|
31
|
31
1FK-2171T-00-00 Mole, Side Cover 5 |
1FK-2171T-00-00 |
from US $4.11 |
||
|
32
|
32
977-07405-12-00
Screw, Pan Tap.2
|
977-07405-12-00 |
— | ||
| replacement | |||||
|
32
|
32
97707-40612-00 Screw, Tapping |
97707-40612-00 |
from US $1.56 |
||
|
33
|
33
92907-04200-00 Washer |
92907-04200-00 |
from US $1.56 |
||
|
34
|
34
90183-04027-00 Nut, Spring |
90183-04027-00 |
from US $1.70 |
||
|
35
|
35
1FK-2171X-00-00 Cover, Side 6 |
1FK-2171X-00-00 |
from US $62.59 |
||
|
36
|
36
1FK-2171T-00-00 Mole, Side Cover 5 |
1FK-2171T-00-00 |
from US $4.11 |
||
|
37
|
37
90480-12296-00 Grommet |
90480-12296-00 |
from US $3.26 |
||
|
38
|
38
1FK-2171A-00-P3 Cover,top Vmx1200F (Ryc1)REDDISH YELLOW COCKTAIL1 |
1FK-2171A-00-P3 |
US $845.66 |
||
| replacement | |||||
|
38
|
38
1FK-YK217-00-P3 Cover, TopREDDISH YELLOW COCKTAIL1 |
1FK-YK217-00-P3 |
US $845.66 |
||
|
39
|
39
1FK-2175J-00-00 Lever Lock Comp |
1FK-2175J-00-00 |
US $121.39 |
||
|
40
|
40
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
40
|
40
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
41
|
41
1FK-21746-00-00 Damper |
1FK-21746-00-00 |
from US $2.98 |
||
|
42
|
42
1FK-28345-00-00 Mole 1 |
1FK-28345-00-00 |
from US $57.89 |
||
|
43
|
43
1FK-2171H-00-00 Guide |
1FK-2171H-00-00 |
from US $4.96 |
||
|
44
|
44
1FK-2171L-00-00 Mole, Side Cover 1 |
1FK-2171L-00-00 |
from US $12.18 |
||
|
45
|
45
1FK-21732-00-00 Seal 1 |
1FK-21732-00-00 |
from US $3.69 |
||
|
46
|
46
1FK-21781-00-00 Emblem 1 |
1FK-21781-00-00 |
from US $51.26 |
||
|
47
|
47
1FK-21782-00-00 Emblem 2 |
1FK-21782-00-00 |
from US $51.26 |
||
|
48
|
48
1FK-21779-00-00 Damper, Locating 2 |
1FK-21779-00-00 |
from US $12.33 |
||
|
49
|
49
1FK-2172M-00-00 Bracket 3 |
1FK-2172M-00-00 |
from US $101.93 |
||
|
50
|
50
18A-24724-00-00 Damper, Seat |
18A-24724-00-00 |
from US $3.12 |
||
|
51
|
51
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
51
|
51
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
52
|
52
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
53
|
53
1FK-21708-00-00 Lock Assy 2 |
1FK-21708-00-00 |
US $149.89 |
||
|
54
|
54
1FK-24796-00-00 Cover |
1FK-24796-00-00 |
US $18.07 |
||
|
55
|
55
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
56
|
56
1FK-2176U-00-00 Shaft, Lock |
1FK-2176U-00-00 |
from US $6.31 |
||
|
57
|
57
1FK-2175K-00-00 Lever, Lock |
1FK-2175K-00-00 |
from US $24.09 |
||
|
58
|
58
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
59
|
59
1FK-2176V-00-00 Spring, Lock 2 |
1FK-2176V-00-00 |
from US $4.07 |
||
|
60
|
60
1FK-21243-00-00 Plate, Bridge |
1FK-21243-00-00 |
US $73.29 |
||
| replacement | |||||
|
60
|
60
1FK-21243-01-00 Plate, Bridge |
1FK-21243-01-00 |
US $73.29 |
||
|
61
|
61
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
61
|
61
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
62
|
62
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
63
|
63
1FK-2172K-00-00 Bracket 1 |
1FK-2172K-00-00 |
from US $30.70 |
||
| replacement | |||||
|
63
|
63
1FK-2172K-01-00 Bracket 1 |
1FK-2172K-01-00 |
from US $29.30 |
||
|
64
|
64
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
65
|
65
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
66
|
66
90480-12475-00 Grommet(2Gh) |
90480-12475-00 |
from US $1.35 |
||
|
67
|
67
903-87060-A7-00
Collar
|
903-87060-A7-00 |
— | ||
| replacement | |||||
|
67
|
67
90387-06113-00 Collar |
90387-06113-00 |
from US $1.56 |
||
|
68
|
68
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
68
|
68
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
68
|
68
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
69
|
69
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
70
|
70
3UF-21359-00-00 Bracket, Coil |
3UF-21359-00-00 |
from US $56.66 |
||
|
71
|
71
1FK-2171M-00-00
Mole, Side Cover 1
|
1FK-2171M-00-00 |
— | ||
| replacement | |||||
|
71
|
71
1FK-2171L-00-00 Mole, Side Cover 1 |
1FK-2171L-00-00 |
from US $12.18 |
||
|
72
|
72
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
72
|
72
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
73
|
73
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
74
|
74
2N4-21717-00-00 Damper |
2N4-21717-00-00 |
from US $3.40 |
||
|
75
|
75
1FK-2177G-00-00 Box, Battery |
1FK-2177G-00-00 |
from US $59.37 |
||
|
76
|
76
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
76
|
76
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
76
|
76
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
77
|
77
1FK-21871-00-00 Tank, Recovery |
1FK-21871-00-00 |
from US $68.11 |
||
|
78
|
78
1FK-21816-00-00 Pipe 1 |
1FK-21816-00-00 |
from US $4.52 |
||
|
79
|
79
26H-21875-00-00 Cap |
26H-21875-00-00 |
from US $15.44 |
||
|
80
|
80
26H-21874-00-00 Gasket |
26H-21874-00-00 |
from US $3.68 |
||
|
81
|
81
26H-21816-01-00 Pipe 1 |
26H-21816-01-00 |
US $8.81 |
||
|
82
|
82
26H-21828-00-00 Elbow |
26H-21828-00-00 |
from US $3.98 |
||
|
83
|
83
90467-11019-00 Clip |
90467-11019-00 |
US $1.70 |
||
| replacements | |||||
|
83
|
83
90467-11M08-00 Clip |
90467-11M08-00 |
from US $1.70 |
||
|
83
|
83
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
84
|
84
1FK-21826-00-00 Pipe, Breather |
1FK-21826-00-00 |
from US $5.85 |
||
|
85
|
85
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
85
|
85
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
86
|
86
1FK-2177M-00-00 Damper, Locating 3 |
1FK-2177M-00-00 |
US $15.28 |
||
|
87
|
87
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.56 |
||
|
88
|
88
214-84153-60-00 Grommet, Wire Harness |
214-84153-60-00 |
from US $3.12 |
||
