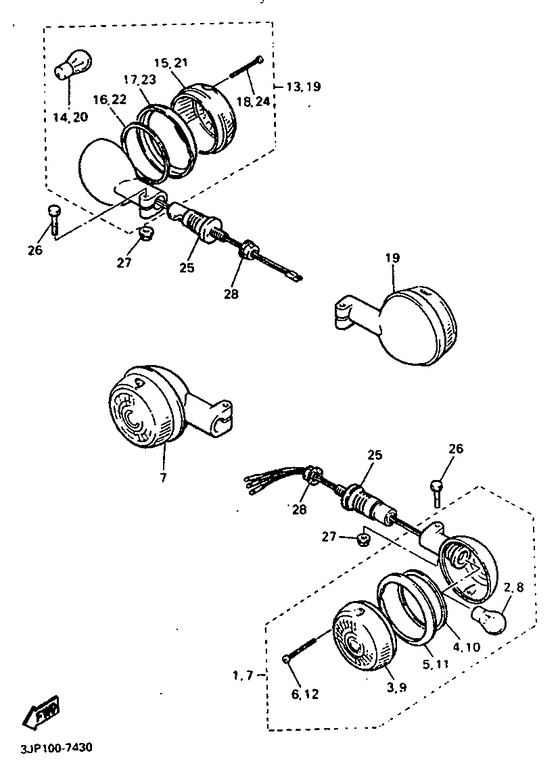

Flasher light Diagram Yamaha VMX12 V-MAX
- Year
- 1997
- Colour
- Black 2 (BL2; 004B)
- Model code
- 3JPR
- Sales region
- Germany (010)
- Engine Capacity
- 1200
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
42X-83310-K0-00
Front Flasher Light Assy 1
Lm |
42X-83310-K0-00 |
— | ||
| replacements | |||||
|
01
|
01
42X-83310-K1-00 Front Flasher Light Assy 1Lm |
42X-83310-K1-00 |
from US $64.04 |
||
|
01
|
01
999-99999-99-00
Not Available
Lm |
999-99999-99-00 |
— | ||
|
02
|
02
256-84714-61-00
Bulb (12V-27/8W)
|
256-84714-61-00 |
— | ||
| replacements | |||||
|
02
|
02
137-84714-61-XX
Bulb (12V-21/5W)
|
137-84714-61-XX |
— | ||
|
02
|
02
137-84714-61-00 Bulb (12V-21/5W) |
137-84714-61-00 |
US $5.13 |
||
|
03
|
03
2AE-83312-00-00
Lens, Flasher
|
2AE-83312-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
42X-83313-00-00
Gasket, Flasher Lens
|
42X-83313-00-00 |
— | ||
| replacement | |||||
|
04
|
04
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.47 |
||
|
05
|
05
42X-83363-00-00
Lens, Rim
|
42X-83363-00-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
07
|
07
42X-83310-K0-00
Front Flasher Light Assy 1
Lm |
42X-83310-K0-00 |
— | ||
| replacements | |||||
|
07
|
07
42X-83310-K1-00 Front Flasher Light Assy 1Lm |
42X-83310-K1-00 |
from US $64.04 |
||
|
07
|
07
999-99999-99-00
Not Available
Lm |
999-99999-99-00 |
— | ||
|
08
|
08
256-84714-61-00
Bulb (12V-27/8W)
|
256-84714-61-00 |
— | ||
| replacements | |||||
|
08
|
08
137-84714-61-XX
Bulb (12V-21/5W)
|
137-84714-61-XX |
— | ||
|
08
|
08
137-84714-61-00 Bulb (12V-21/5W) |
137-84714-61-00 |
US $5.13 |
||
|
09
|
09
2AE-83312-00-00
Lens, Flasher
|
2AE-83312-00-00 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
42X-83313-00-00
Gasket, Flasher Lens
|
42X-83313-00-00 |
— | ||
| replacement | |||||
|
10
|
10
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.47 |
||
|
11
|
11
42X-83363-00-00
Lens, Rim
|
42X-83363-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
13
|
13
1AA-83330-K0-00
Rear Flasher Light Assy 1
Lm |
1AA-83330-K0-00 |
— | ||
| replacement | |||||
|
13
|
13
1AA-83330-K9-00 Rear Flasher Light Assy 1Lm |
1AA-83330-K9-00 |
from US $66.66 |
||
|
14
|
14
256-83311-70-00 Bulb (12V-27W) |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
14
|
14
256-83311-70-XX
Bulb (12V-27W)
|
256-83311-70-XX |
— | ||
|
15
|
15
2AE-83312-00-00
Lens, Flasher
|
2AE-83312-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
42X-83313-00-00
Gasket, Flasher Lens
|
42X-83313-00-00 |
— | ||
| replacement | |||||
|
16
|
16
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.47 |
||
|
17
|
17
42X-83363-00-00
Lens, Rim
|
42X-83363-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
19
|
19
1AA-83330-K0-00
Rear Flasher Light Assy 1
Lm |
1AA-83330-K0-00 |
— | ||
| replacement | |||||
|
19
|
19
1AA-83330-K9-00 Rear Flasher Light Assy 1Lm |
1AA-83330-K9-00 |
from US $66.66 |
||
|
20
|
20
256-83311-40-00
Bulb, flasher
|
256-83311-40-00 |
— | ||
|
21
|
21
2AE-83312-00-00
Lens, Flasher
|
2AE-83312-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
42X-83313-00-00
Gasket, Flasher Lens
|
42X-83313-00-00 |
— | ||
| replacement | |||||
|
22
|
22
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.47 |
||
|
23
|
23
42X-83363-00-00
Lens, Rim
|
42X-83363-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
25
|
25
1AA-83318-00-00 Stay,flasher 1 |
1AA-83318-00-00 |
from US $33.72 |
||
|
26
|
26
97004-06030-00 Bolt |
97004-06030-00 |
from US $1.42 |
||
| replacement | |||||
|
26
|
26
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
27
|
27
957-04065-00-00
Nut, Flange(3Bm)
|
957-04065-00-00 |
— | ||
| replacement | |||||
|
27
|
27
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
28
|
28
95707-12500-00 Nut, Flange |
95707-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
28
|
28
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
28
|
28
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
